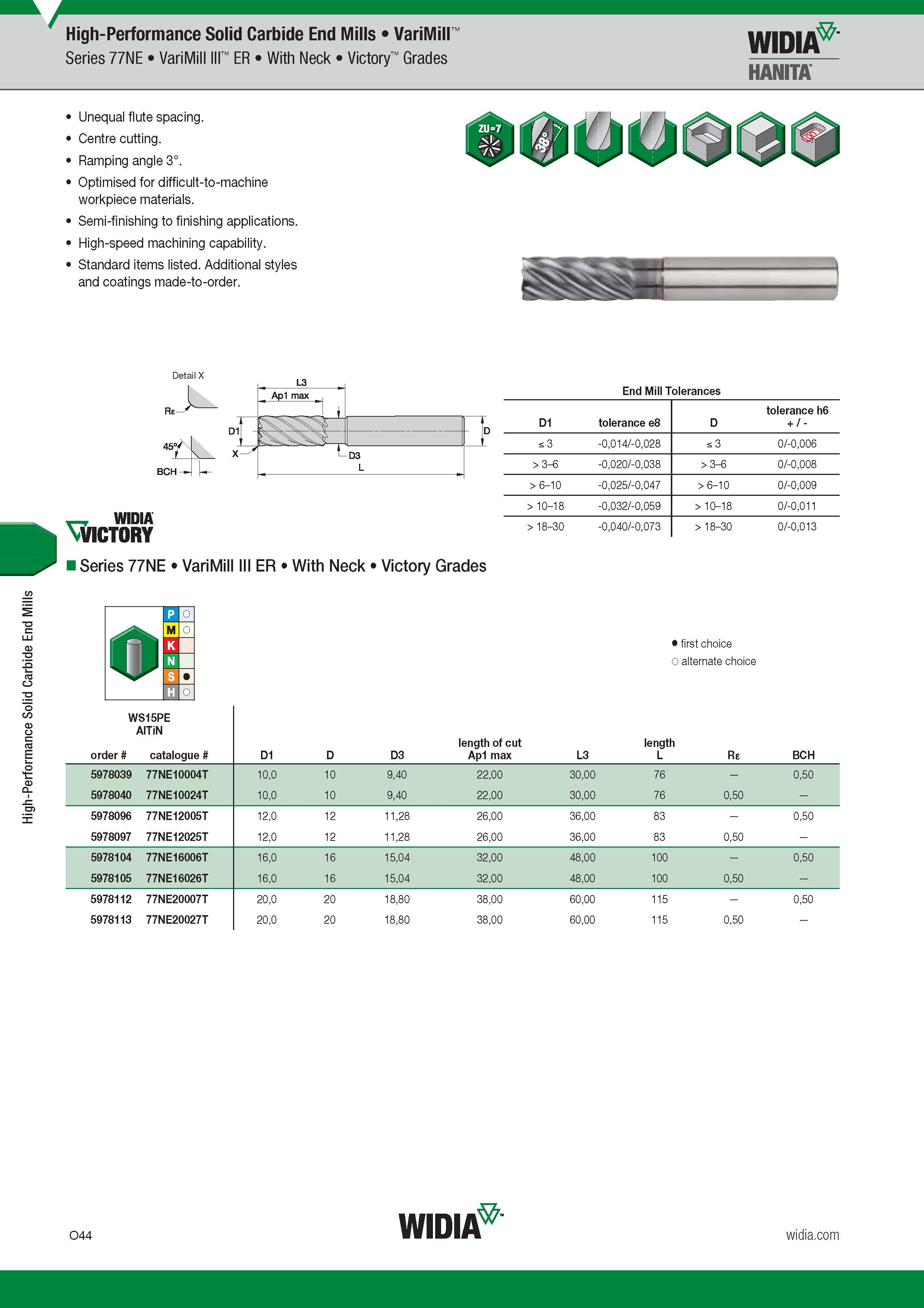

Solid Carbide End Mills Widia Hanita 77NE VariMill III ER With Neck Victory Grades Unequal flute spacing Centre cutting Ramping angle 3° Optimised

Solid Carbide End Mills Widia Hanita 77NE VariMill III ER With Neck Victory Grades Unequal flute spacing. Centre cutting. Ramping angle 3°. Optimised for difficult-to-machine workpiece materials. Semi-finishing to finishing applications. High-speed machining capability. Standard items listed. Additional styles and coatings made-to-order. Widia Victory Series 77NE VariMill III ER With Neck Victory Grades 0 m K N S H 0 First and alternate choice Основной и альтернативный выбор WS15PE AlTiN order catalogue D1 D D3 length of cut Ap1 max L3 length L Re BCH 5978039 77NE10004T 10,0 10 9,40 22,00 30,00 76 - 0,50 5978040 77NE10024T 10,0 10 9,40 22,00 30,00 76 0,50 - 5978096 77NE12005T 12,0 12 11,28 26,00 36,00 83 - 0,50 5978097 77NE12025T 12,0 12 11,28 26,00 36,00 83 0,50 - 5978104 77NE16006T 16,0 16 15,04 32,00 48,00 100 - 0,50 5978105 77NE16026T 16,0 16 15,04 32,00 48,00 100 0,50 - 5978112 77NE20007T 20,0 20 18,80 38,00 60,00 115 - 0,50 5978113 77NE20027T 20,0 20 18,80 38,00 60,00 115 0,50 - Detail X High-Performance Solid Carbide End Mills High-Performance VariMill Series
