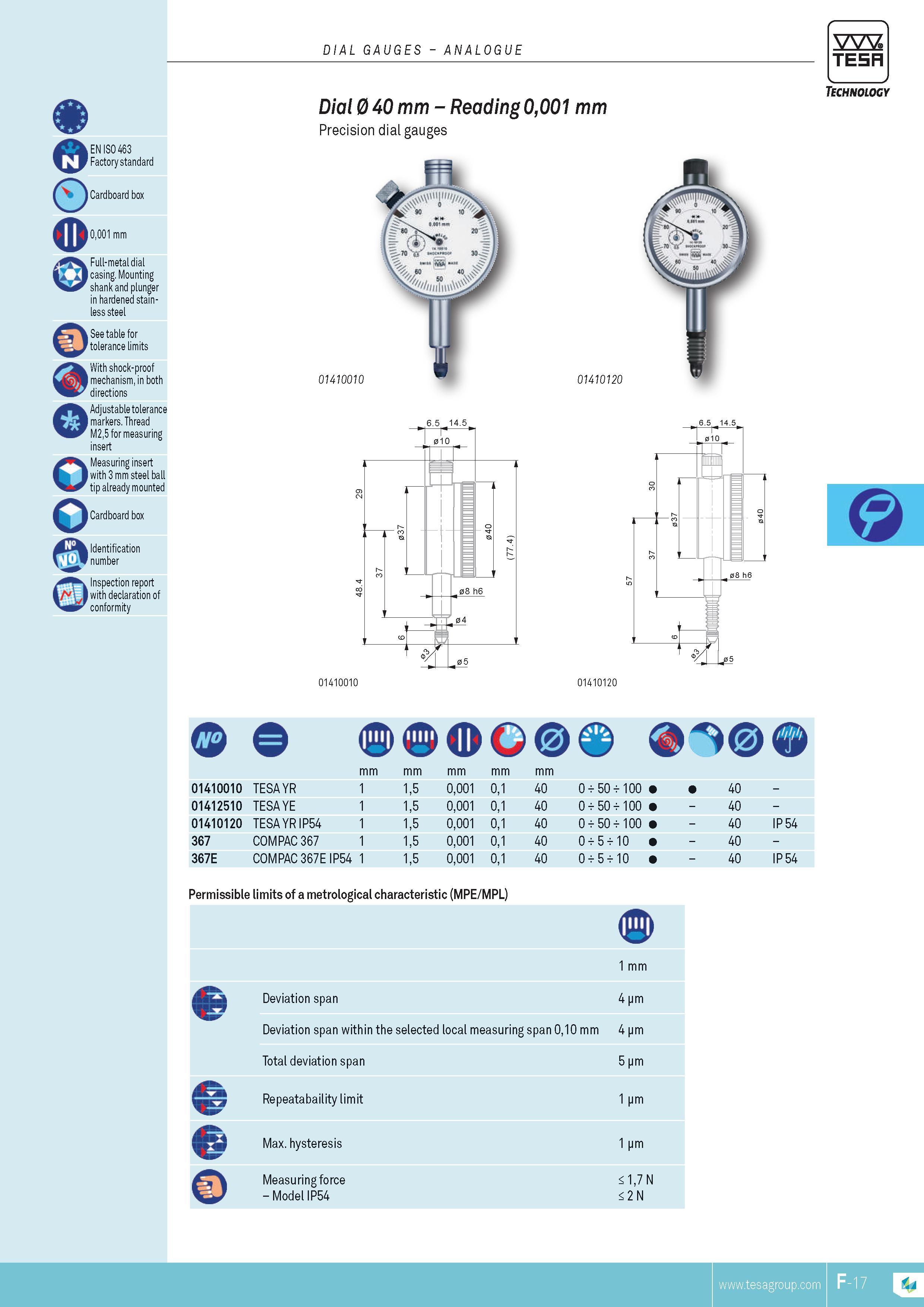

DIAL GAUGES ANALOGUE TESA EN ISO 463 Factory standard Cardboard box 0001 mm Full-metal dial casing. Mounting shank and plunger in hardened stainless steel See table for tolerance limits With shock-proof mechanism in both directions Adjustable tolerance markers. Thread M25 for measuring insert Measuring insert with 3 mm steel ball tip already mounted Cardboard box Identification number Inspection report v' vP with declaration of conformity Dial 0 40 mm Reading 0001 mm Precision dial gauges Technology 01410010 01410120 01410010 01410120 mm 01410010 TESA YR 1 15 0001 01 40 O -1- 5 o -1- 0 o 40 01412510 TESA YE 1 15 0001 01 40 o -1- 5 o -1- 0 o 40 01410120 TESA YR IP54 1 15 0001 01 40 o -1- 5 o -1- 0 o 40 IP 54 367 COMPAC 367 1 15 0001 01 40 o -1- 5 -1- 0 40 367E COMPAC 367E IP54 1 15 0001 01 40 o -1- 5 -1- 0 40 IP 54 Permissible limits of a metrological characteristic (MPE MPL) 1 mm Deviation span 4 pm Deviation span within the selected local measuring span 010 mm 4 pm Total deviation span 5 pm Repeatabaility limit 1 pm Max. hysteresis 1 pm Measuring force Model IP54 17 N 2 N TESA
