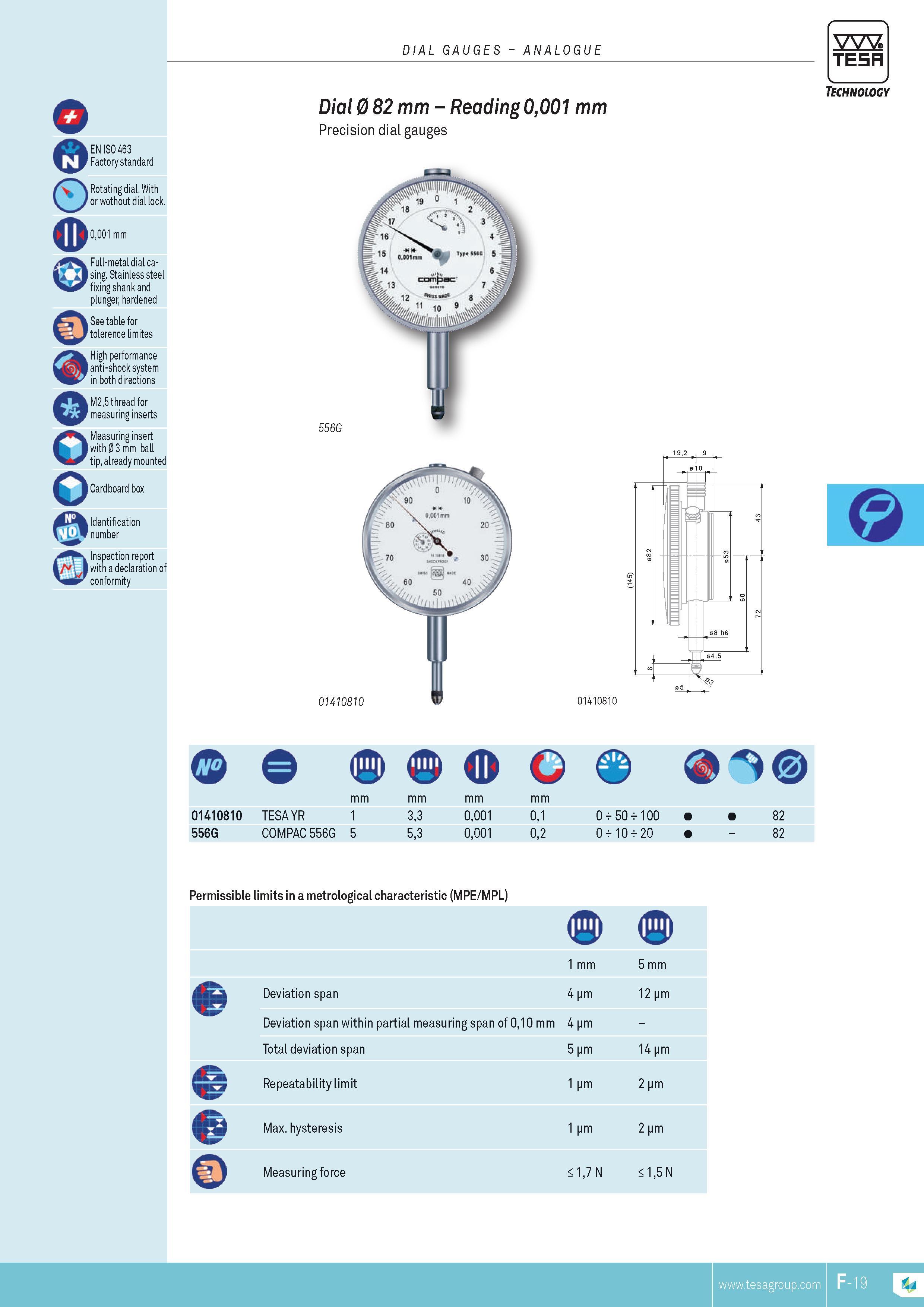

DIAL GAUGES ANALOGUE TESA EN ISO 463 Factory standard or wothout dial lock 0001 mm Full-metal dial casing Stainless steel fixing shank and plunger har

DIAL GAUGES ANALOGUE TESA EN ISO 463 Factory standard or wothout dial lock. 0001 mm Full-metal dial casing. Stainless steel fixing shank and plunger hardened See table for tolerence limites High performance anti-shock system in both directions M25 thread for measuring inserts Measuring insert with 0 3 mm ball tip already mounted Cardboard box Identification number Inspection report with a declaration of conformity Dial 0 82 mm Reading 0001 mm Precision dial gauges Technology 556G Q Q i g 0 Q mm 01410810 TESA YR 1 33 0001 01 0 50 100 82 556G COMPAC 556G 5 53 0001 02 0 10 20 82 Permissible limits in a metrological characteristic (MPE MPL) 0 1 mm 5 mm Deviation span 4 pm 12 pm Deviation span within partial measuring span of 010 mm 4 pm Total deviation span 5 pm 14 pm Repeatability limit 1 pm 2 pm Max. hysteresis 1 pm 2 pm Measuring force 17 N 15 N TESA
