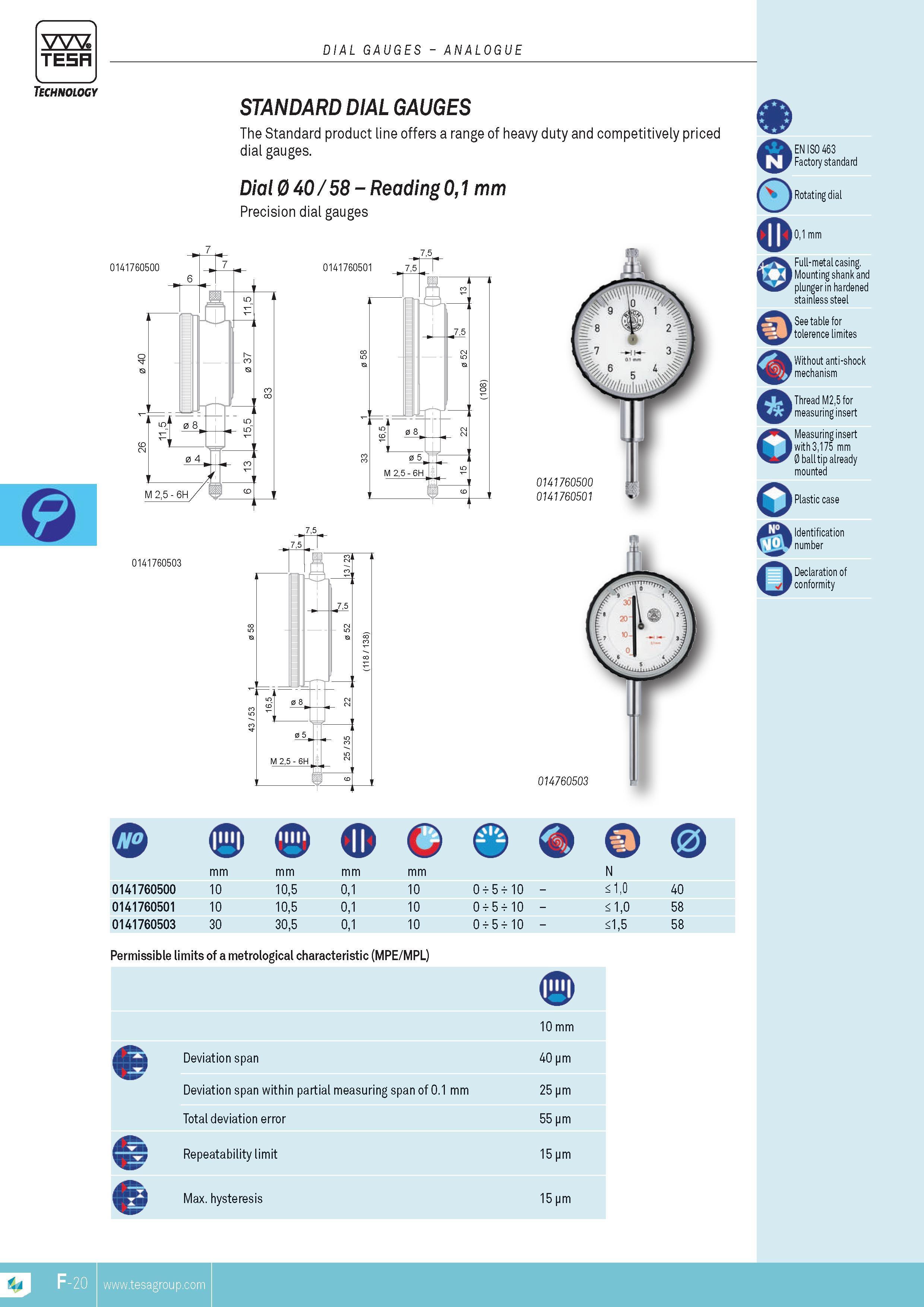

DIAL GAUGES ANALOGUE TESA STANDARD DIAL GAUGES The Standard product line offers a range of heavy duty and competitively priced dial gauges. Dial 0 40 58 Reading 01 mm Precision dial gauges 0141760503 0141760500 0141760501 014760503 Permissible limits of a metrological characteristic (MPE MPL) Deviation span Deviation span within partial measuring span of 0.1 mm Total deviation error Repeatability limit 10 mm 40 pm 25 pm 55 pm 15 pm EN ISO 463 Factory standard Rotating dial o 01 mm Full-metal casing. Mounting shank and plunger in hardened stainless steel See table for tolerence limites Without anti-shock mechanism Thread M25 for measuring insert Measuring insert with 3175 mm 0 ball tip already mounted Plastic case Identification number Declaration of conformity mm N 0141760500 10 105 01 10 0 T 5 T 10 10 40 0141760501 10 105 01 10 0 T 5 T 10 10 58 0141760503 30 305 01 10 0 T 5 T 10 15 58 Max. hysteresis 15 pm TESA Technology &
