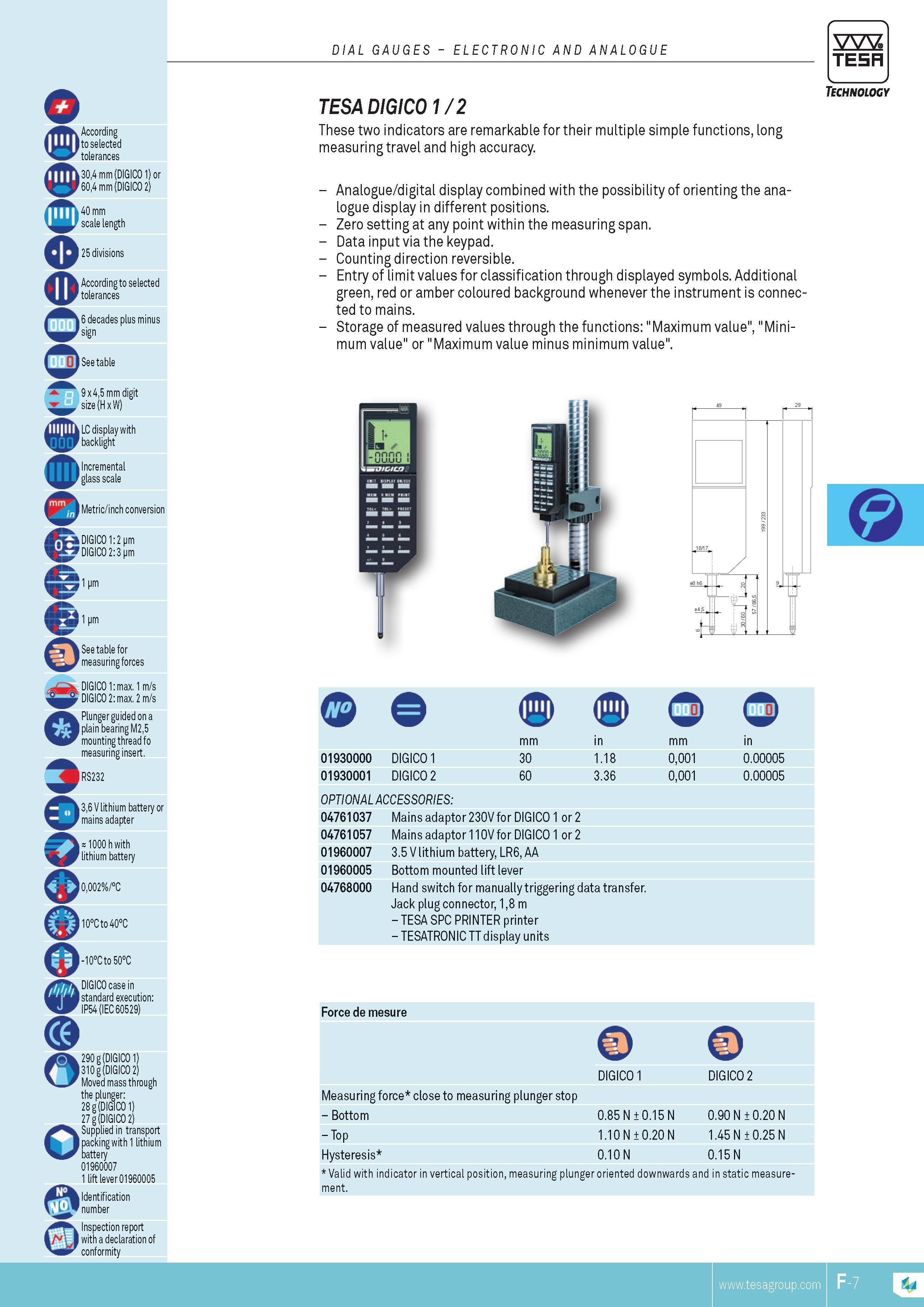

DIAL GAUGES ELECTRONIC AND ANALOGUE TESA According to selected tolerances 30.4 mm (DIGICO 1) or 60.4 mm (DIGICO 2) 40 mm scale length 25 divisions According to selected tolerances 6 decades plus minus sign See table 9 x 45 mm digit size (H x W) LC display with backlight Incremental glass scale Metric inch conversion DIGICO 1 2 pm DIGICO 2 3 pm 1 pm 1 pm See table for measuring forces DIGICO 1 max. 1 m s DIGICO 2 max. 2 m s Plunger guided on a plain bearing M25 mounting thread fo measuring insert. JRS232 36 V lithium battery or mains adapter 1000 h with lithium battery 0002% C Q 10C to 40C 10C to 50C DIGICOcase in standard execution IP54(IEC 60529) 290 g(DIGICO 1) 310 g (DIGICO 2) Moved mass through the plunger 28 g (DIGICO 1) 27 g (DIGICO 2) Supplied in transport packing with 1 lithium battery 01960007 1 lift lever01960005 Identification VVyP number Inspection report with a declaration of conformity TESA DIGICO 1 2 These two indicators are remarkable for their multiple simple functions long measuring travel and high accuracy. Analogue digital display combined with the possibility of orienting the analogue display in different positions. Zero setting at any point within the measuring span. Data input via the keypad. Counting direction reversible. Entry of limit values for classification through displayed symbols. Additional green red or amber coloured background whenever the instrument is connected to mains. Storage of measured values through the functions "Maximum value" "Minimum value" or "Maximum value minus minimum value". Technology nr 045 r 3- mm 30 60 in 1.18 3.36 01930000 DIGICO 1 01930001 DIGICO 2 OPTIONAL ACCESSORIES 04761037 Mains adaptor 230V for DIGICO 1 or 2 04761057 Mains adaptor 110V for DIGICO 1 or 2 01960007 3.5 V lithium battery LR6 AA 01960005 Bottom mounted lift lever 04768000 Hand switch for manually triggering data transfer. Jack plug connector 18 m TESA SPC PRINTER printer TESATRONIC TT display units Force de mesure mm 0001 0001 in 0.00005 0.00005 DIGICO 1 DIGICO 2 Measuring force close to measuring plunger stop Bottom 0.85 N 0.15 N 0.90 N 0.20 N Top 1.10 N 0.20 N 1.45 N 0.25 N Hysteresis 0.10 N 0.15 N Valid with indicator in vertical position measuring plunger oriented downwards and in static MEASUREMENT. 29
