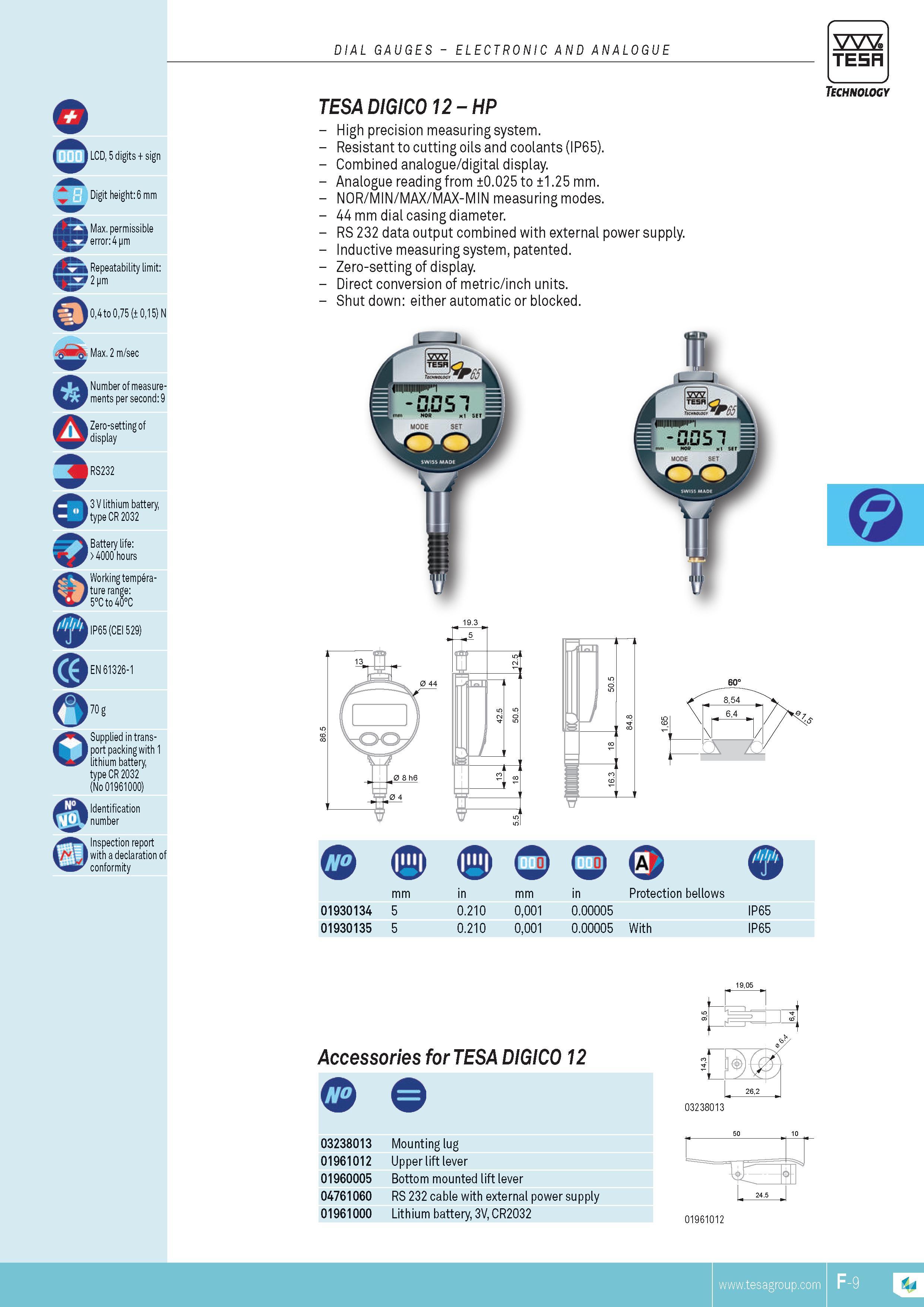

DIAL GAUGES ELECTRONIC AND ANALOGUE TESA m LCD 5 digits sign Digit height 6 mm Max permissible error 4 pm Repeatability limit 2 pm 04 to 075 ( 015) N

DIAL GAUGES ELECTRONIC AND ANALOGUE TESA m LCD 5 digits sign Digit height 6 mm Max. permissible error 4 pm Repeatability limit 2 pm 04 to 075 ( 015) N Max. 2 m sec Number of MEASUREMENTs per second:9 Zero-setting of display RS232 3 V lithium battery type CR 2032 Battery life 4000 hours Working temperature range 5C to 40C IP65 (CEI 529) EN 61326-1 70 g Supplied in transport packing with 1 lithium battery type CR 2032 (No 01961000) Identification number Inspection report V vl with a declaration of conformity TESA DIGICO 12 HP High precision measuring system. Resistant to cutting oils and coolants (IP65). Combined analogue digital display. Analogue reading from 0.025 to 1.25 mm. NOR MIN MAX MAX-MIN measuring modes. 44 mm dial casing diameter. RS 232 data output combined with external power supply. Inductive measuring system patented. Zero-setting of display. Direct conversion of metric inch units. Shut down either automatic or blocked. Technology J o mm in mm in Protection bellows 01930134 5 0.210 0001 0.00005 IP65 01930135 5 0.210 0001 0.00005 With IP65 Accessories for TESA DIGICO 12 o 03238013 Mounting lug 01961012 Upper lift lever 01960005 Bottom mounted lift lever 04761060 RS 232 cable with external power supply 01961000 Lithium battery 3V CR2032 50 10 01961012 TESA
