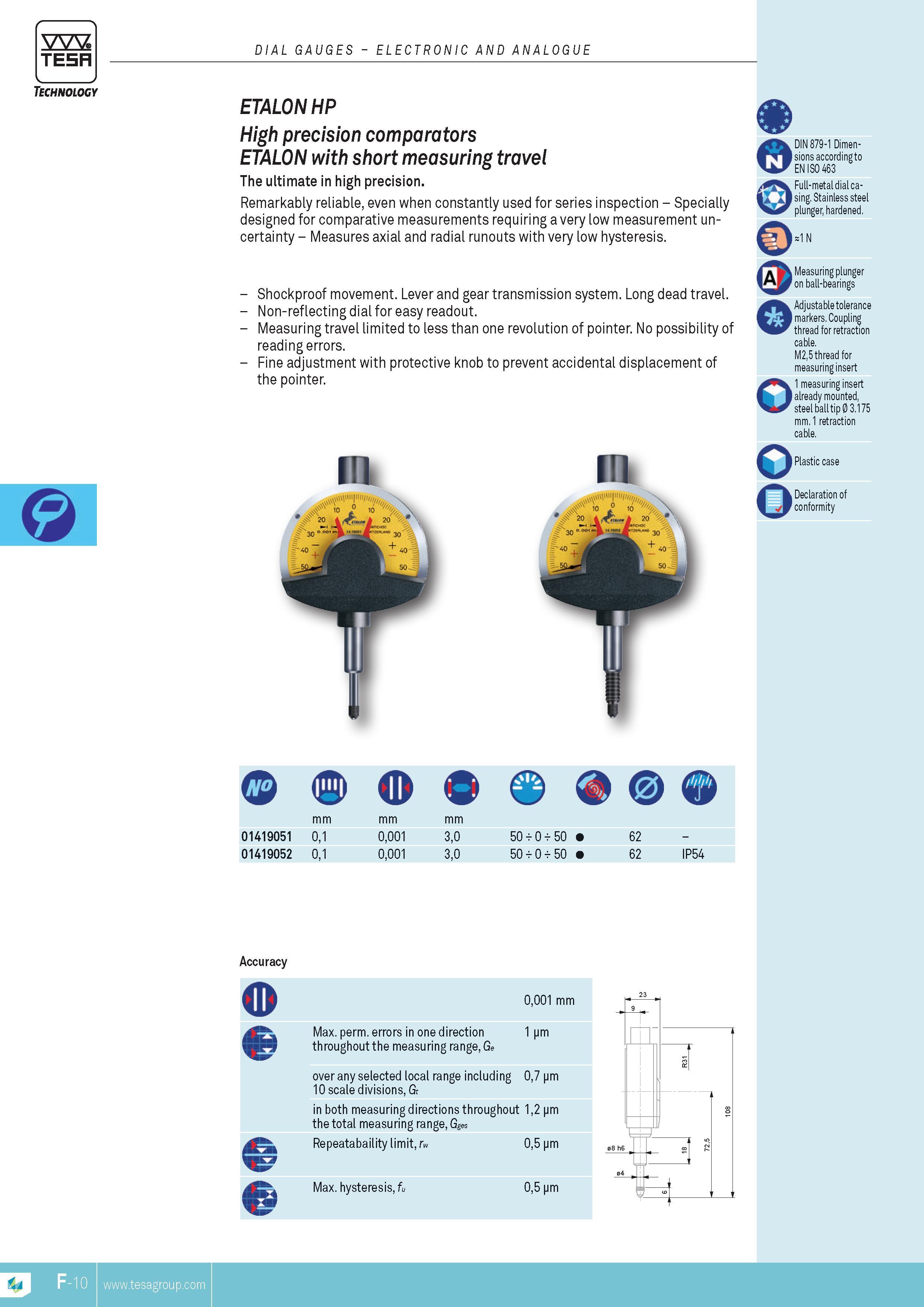

DIAL GAUGES ELECTRONIC AND ANALOGUE ETALON HP High precision comparators ETALON with short measuring travel The ultimate in high precision. Remarkably reliable even when constantly used for series inspection Specially designed for comparative MEASUREMENTs requiring a very low MEASUREMENT uncertainty Measures axial and radial runouts with very low hysteresis. I DIN 879-1 Dimensions according to EN ISO 463 Full-metal dial casing. Stainless steel plunger hardened. 1 N Shockproof movement. Lever and gear transmission system. Long dead travel. Non-reflecting dial for easy readout. Measuring travel limited to less than one revolution of pointer. No possibility of reading errors. Fine adjustment with protective knob to prevent accidental displacement of the pointer. & Measuring plunger on ball-bearings Adjustable tolerance markers. Coupling thread for retraction cable. M25 thread for measuring insert 1 measuring insert already mounted steel ball tip 0 3.175 o mm. 1 retraction cable. Plastic case Declaration of conformity mm 01419051 01 0001 30 50 0 50 62 01419052 01 0001 30 50 0 50 62 IP54 Accuracy o Max. perm. errors in one direction throughout the measuring range Ge 0001 mm 1 pm over any selected local range including 07 pm 10 scale divisions Gt in both measuring directions throughout 12 pm the total measuring range Gges Repeatabaility limit r 05 pm Max. hysteresis fu 05 pm m TESA 23 08 h6 04 TESA Technology
