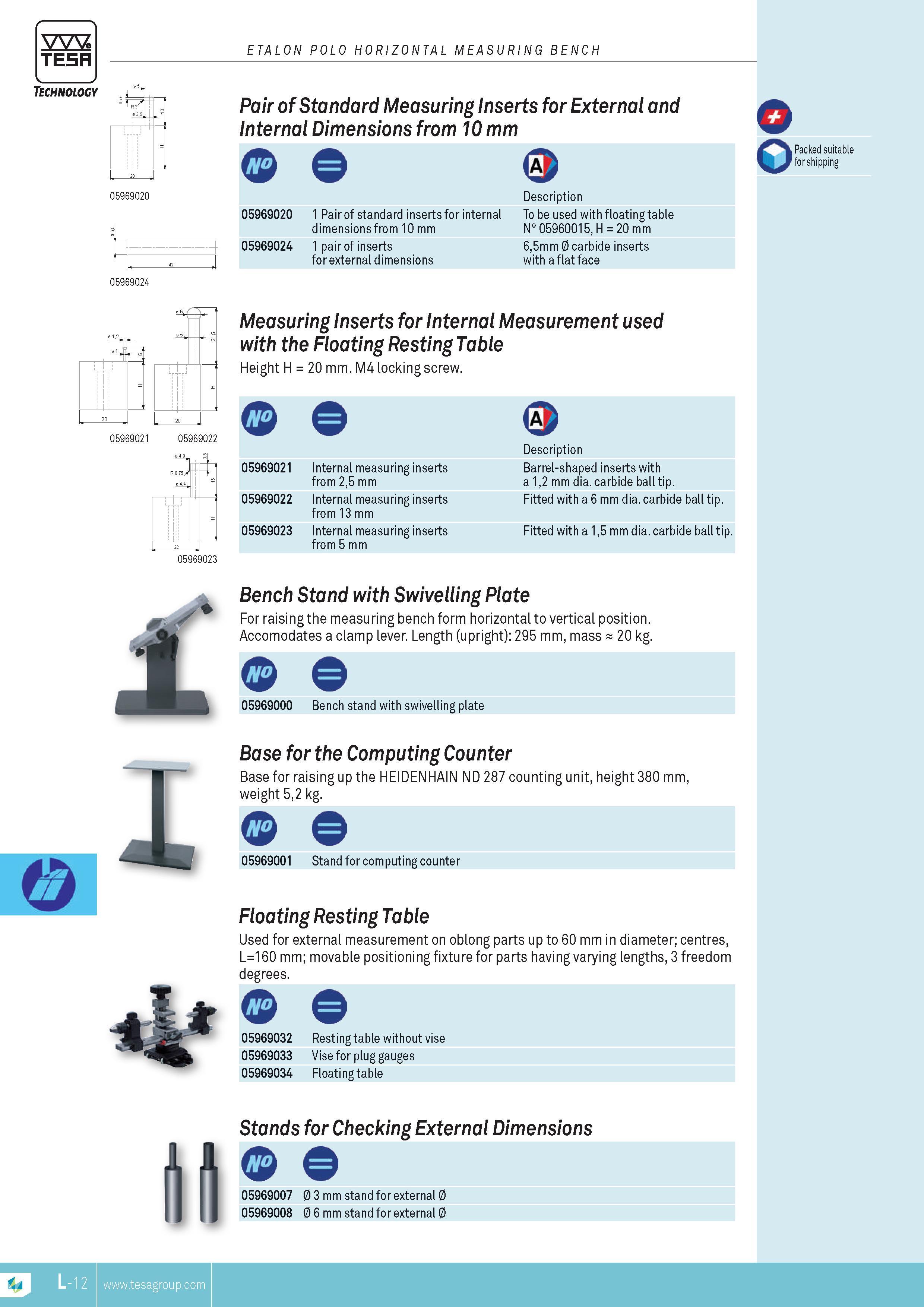

TESA ETALON POLO HORIZONTAL MEASURING BENCH Technology l 05969020 05969024 05969021 6 1 V 0 5 20 05969022 05969023 Pair of Standard Measuring Inserts for External and Internal Dimensions from 10 mm o Description 05969020 1 Pair of standard inserts for internal dimensions from 10 mm To be used with floating table N 05960015 H 20 mm 05969024 1 pair of inserts for external dimensions 65mm 0 carbide inserts with a flat face O Packed suitable for shipping measuring Inserts for Internal MEASUREMENT used with the Floating Resting Table Height H 20 mm. M4 locking screw. e Description 05969021 Internal measuring inserts from 25 mm Barrel-shaped inserts with a 12 mm dia. carbide ball tip. 05969022 Internal measuring inserts from 13 mm Fitted with a 6 mm dia. carbide ball tip. 05969023 Internal measuring inserts from 5 mm Fitted with a 15 mm dia. carbide ball tip. Bench Stand with Swivelling Plate For raising the measuring bench form horizontal to vertical position. Accomodates a clamp lever. Length (upright) 295 mm mass 20 kg. O 05969000 Bench stand with swivelling plate base for the Computing Counter Base for raising up the HEIDENHAIN ND 287 counting unit height 380 mm weight 52 kg. 05969001 Stand for computing counter Floating Resting Table Used for external MEASUREMENT on oblong parts up to 60 mm in diameter; centres L160 mm; movable positioning fixture for parts having varying lengths 3 freedom degrees. 05969032 Resting table without vise 05969033 Vise for plug gauges 05969034 Floating table Stands for Checking External Dimensions 05969007 0 3 mm stand for external 0 05969008 0 6 mm stand for external 0 L-12 TESA 1 1.2 2C
