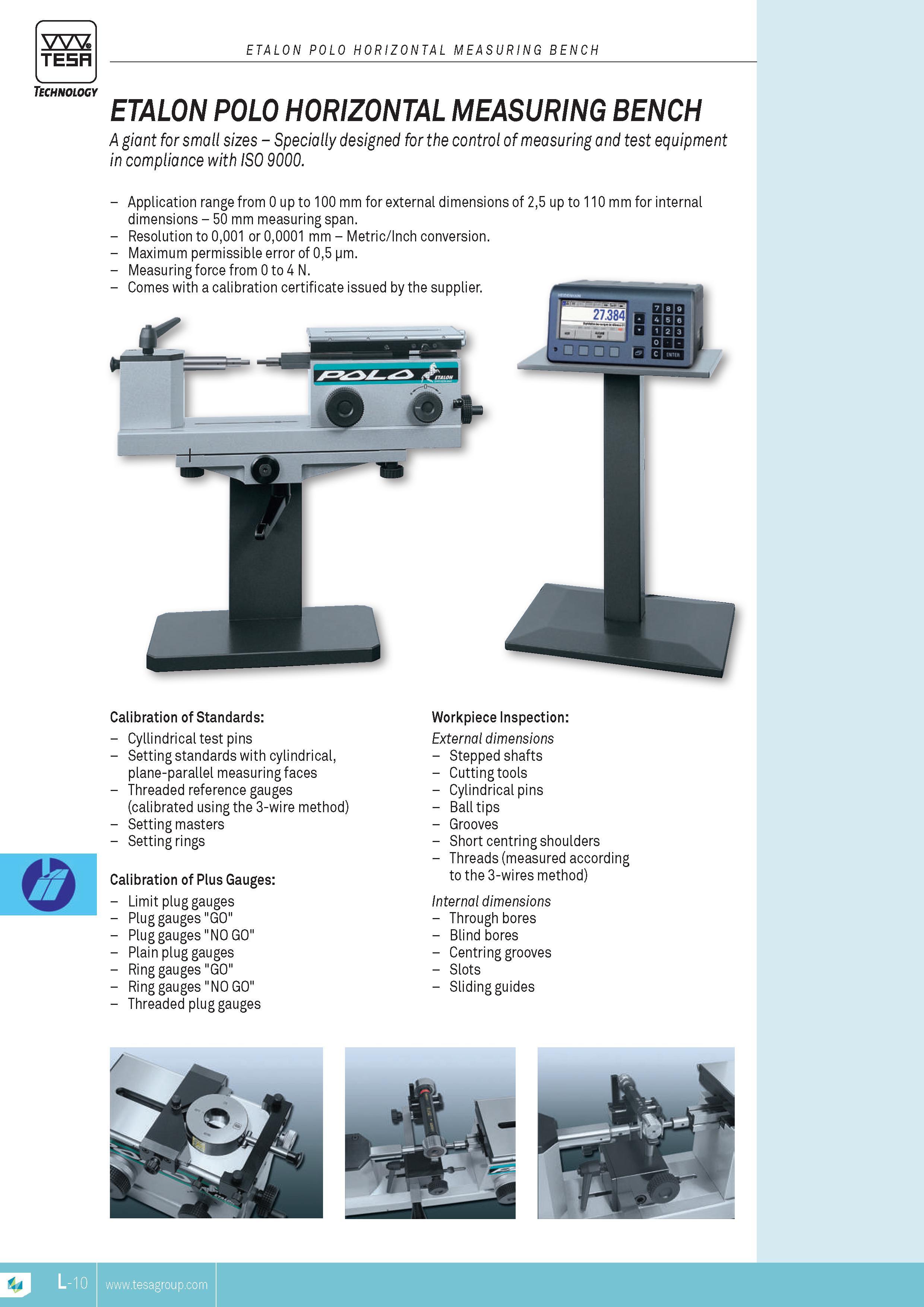

TESA ETALON POLO HORizONTAL MEASURING Bench Technology ETALON POLO HORIZONTAL MEASURING BENCH A giant for small sizes Specially designed for the control of measuring and test equipment in compliance with ISO 9000. Application range from 0 up to 100 mm for external dimensions of 25 up to 110 mm for internal dimensions 50 mm measuring span. Resolution to 0001 or 00001 mm Metric Inch conversion. Maximum permissible error of 05 jm. Measuring force from 0 to 4 N. Comes with a calibration certificate issued by the supplier. Calibration of Standards Cyllindrical test pins Setting standards with cylindrical plane-parallel measuring faces Threaded reference gauges (calibrated using the 3-wire method) Setting masters Setting rings Calibration of Plus Gauges Limit plug gauges Plug gauges "GO" Plug gauges "NO GO" Plain plug gauges Ring gauges "GO" Ring gauges "NO GO" Threaded plug gauges Workpiece Inspection External dimensions Stepped shafts Cutting tools Cylindrical pins Ball tips Grooves Short centring shoulders Threads (measured according to the 3-wires method) Internal dimensions Through bores Blind bores Centring grooves Slots Sliding guides
