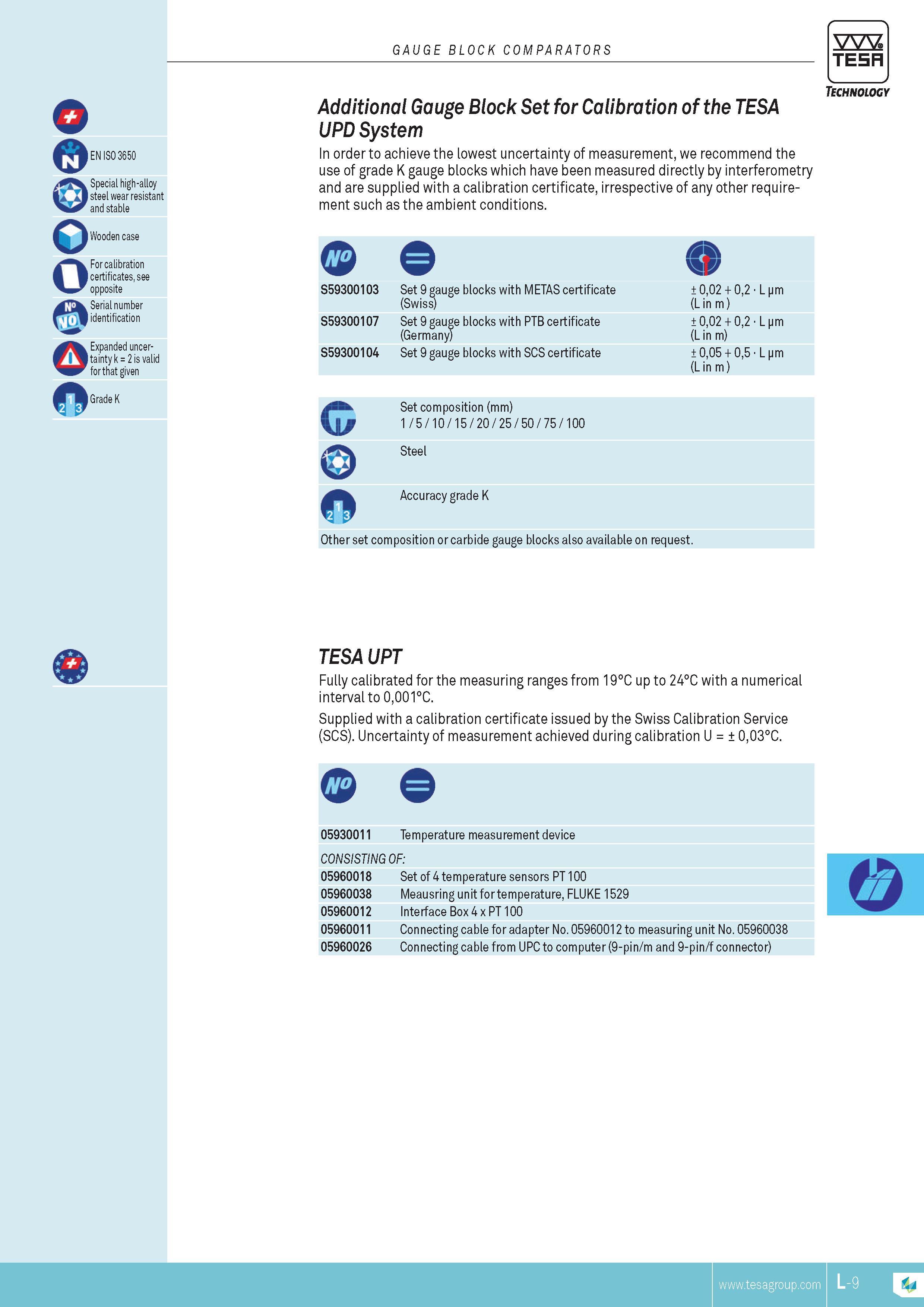

EN ISO 3650 Special high-alloy steel wear resistant and stable Wooden case For calibration certificates see opposite Serial number identification Expanded uncertainty k 2 is valid for that given Grade K GAUGE BLOCK COMPARATORS Additional Gauge Block Set for Calibration of the TESA UPD System In order to achieve the lowest uncertainty of MEASUREMENT we recommend the use of grade K gauge blocks which have been measured directly by interferometry and are supplied with a calibration certificate irrespective of any other requirement such as the ambient conditions. TESA Technology O II S59300103 Set 9 gauge blocks with METAS certificate (Swiss) 002 + 02 L pm (L in m ) S59300107 Set 9 gauge blocks with PTB certificate (Germany) 002 + 02 L pm (L in m) S59300104 Set 9 gauge blocks with SCS certificate 005 + 05 L pm (L in m ) G Set composition (mm) 1 5 10 15 20 25 50 75 100 Steel Accuracy grade K Other set composition or carbide gauge blocks also available on request. TESA UPT Fully calibrated for the measuring ranges from 19C up to 24C with a numerical interval to 0001C. Supplied with a calibration certificate issued by the Swiss Calibration Service (SCS). Uncertainty of MEASUREMENT achieved during calibration U 003C. 05930011 Temperature MEASUREMENT device CONSISTING OF 05960018 Set of 4 temperature sensors PT 100 05960038 Meausring unit for temperature FLUKE 1529 05960012 Interface Box 4 x PT 100 05960011 Connecting cable for adapter No. 05960012 to measuring unit No. 05960038 05960026 Connecting cable from UPC to computer (9-pin m and 9-pin f connector) TESA
