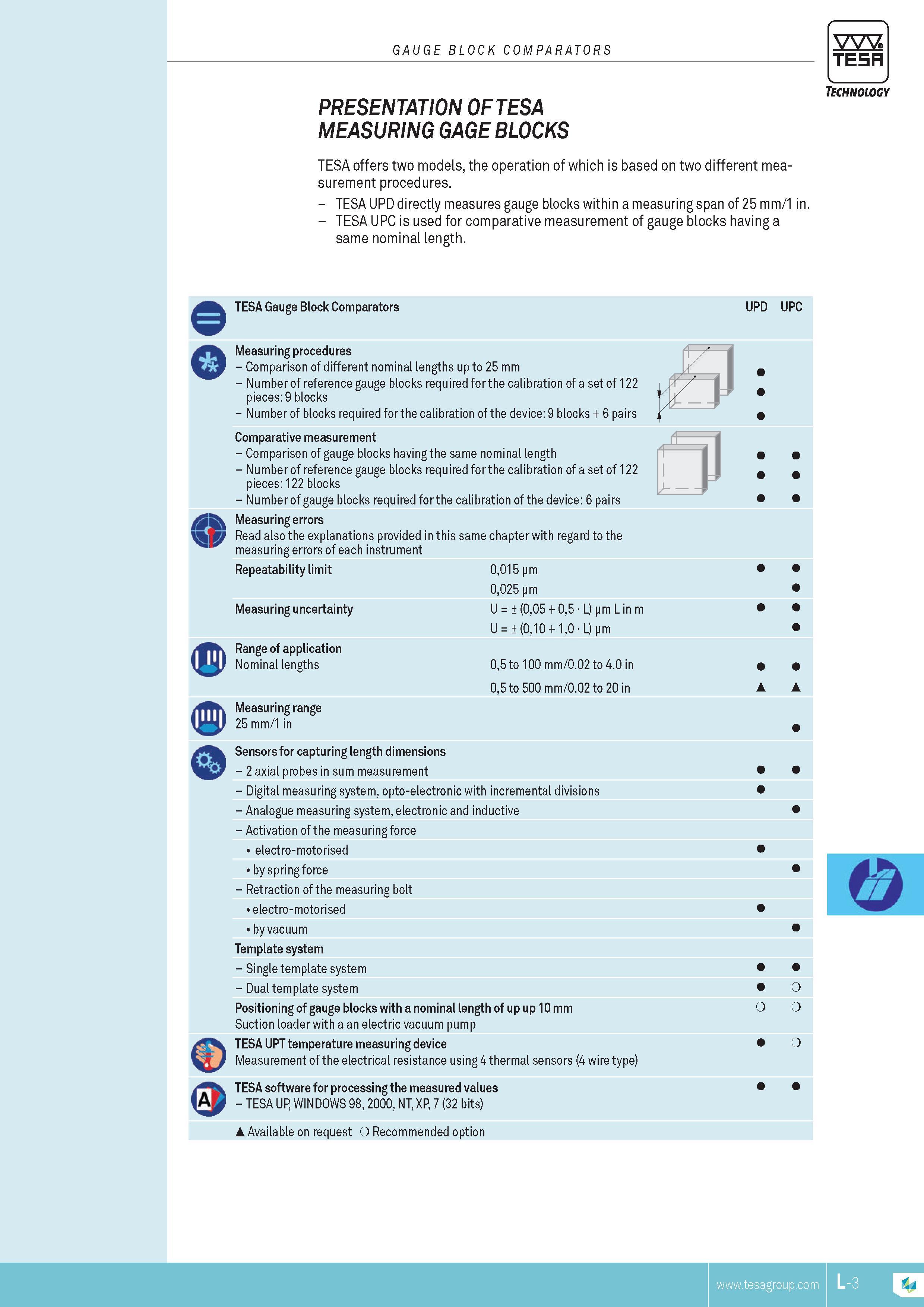

GAUGE BLOCK COMPARATORS TESA Technology PRESENTATION OF TESA MEASURING GAGE BLOCKS TESA offers two models the operation of which is based on two different MEASUREMENT procedures. TESA UPD directly measures gauge blocks within a measuring span of 25 mm 1 in. TESA UPC is used for comparative MEASUREMENT of gauge blocks having a same nominal length. TESA Gauge Block Comparators UPD UPC Measuring procedures Comparison of different nominal lengths up to 25 mm Number of reference gauge blocks required for the calibration of a set of 122 pieces 9 blocks Number of blocks required for the calibration of the device 9 blocks + 6 pairs X Comparative MEASUREMENT Comparison of gauge blocks having the same nominal length Number of reference gauge blocks required for the calibration of a set of 122 pieces 122 blocks Number of gauge blocks required for the calibration of the device 6 pairs iJ Measuring errors Read also the explanations provided in this same chapter with regard to the measuring errors of each instrument Repeatability limit 0015 pm 0025 pm Measuring uncertainty U (005 + 05 L) pm L in m U (010 + 10 L) pm Range of application Nominal lengths 05 to 100 mm 0.02 to 4.0 in 05 to 500 mm 0.02 to 20 in Measuring range 25 mm 1 in Sensors for capturing length dimensions 2 axial probes in sum MEASUREMENT Digital measuring system opto-electronic with incremental divisions Analogue measuring system electronic and inductive Activation of the measuring force electro-motorised by spring force Retraction of the measuring bolt electro-motorised by vacuum Template system Single template system Dual template system 0 Positioning of gauge blocks with a nominal length of up up 10 mm Suction loader with a an electric vacuum pump 0 TESA UPT temperature measuring device MEASUREMENT of the electrical resistance using 4 thermal sensors (4 wire type) 0 TESA software for processing the measured values TESA UP WINDOWS 98 2000 NT XP 7 (32 bits) Available on request 0 Recommended option
