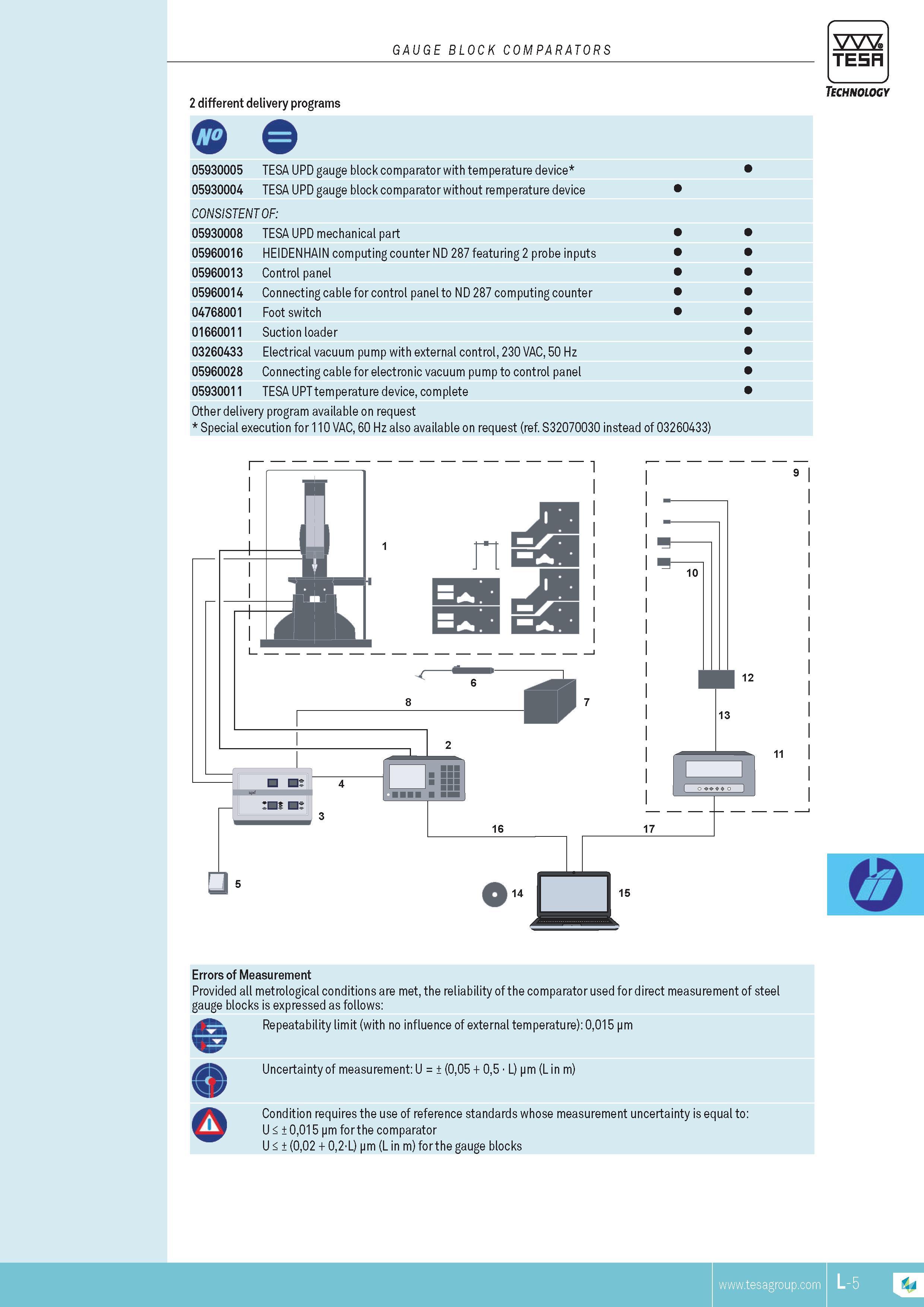

GAUGE BLOCK COMPARATORS TESA 2 different delivery programs Technology Q) o 05930005 TESA UPD gauge block comparator with temperature device 05930004 TESA UPD gauge block comparator without remperature device CONSISTENT OF 05930008 TESA UPD mechanical part 05960016 HEIDENHAIN computing counter ND 287 featuring 2 probe inputs 05960013 Control panel 05960014 Connecting cable for control panel to ND 287 computing counter 04768001 Foot switch 01660011 Suction loader 03260433 Electrical vacuum pump with external control 230 VAC 50 Hz 05960028 Connecting cable for electronic vacuum pump to control panel 05930011 TESA UPT temperature device complete Other delivery program available on request Special execution for 110 VAC 60 Hz also available on request (ref. S32070030 instead of 03260433) jm nn bJ 4 3 10 12 13 11 16 17 14 15 9 6 8 7 2 5 Errors of MEASUREMENT Provided all metrological conditions are met the reliability of the comparator used for direct MEASUREMENT of steel gauge blocks is expressed as follows Repeatability limit (with no influence of external temperature) 0015 pm Uncertainty of MEASUREMENT U (005 + 05 L) pm (L in m) w o Condition requires the use of reference standards whose MEASUREMENT uncertainty is equal to U 0015 pm for the comparator U (002 + 021) pm (L in m) for the gauge blocks TESA L-5
