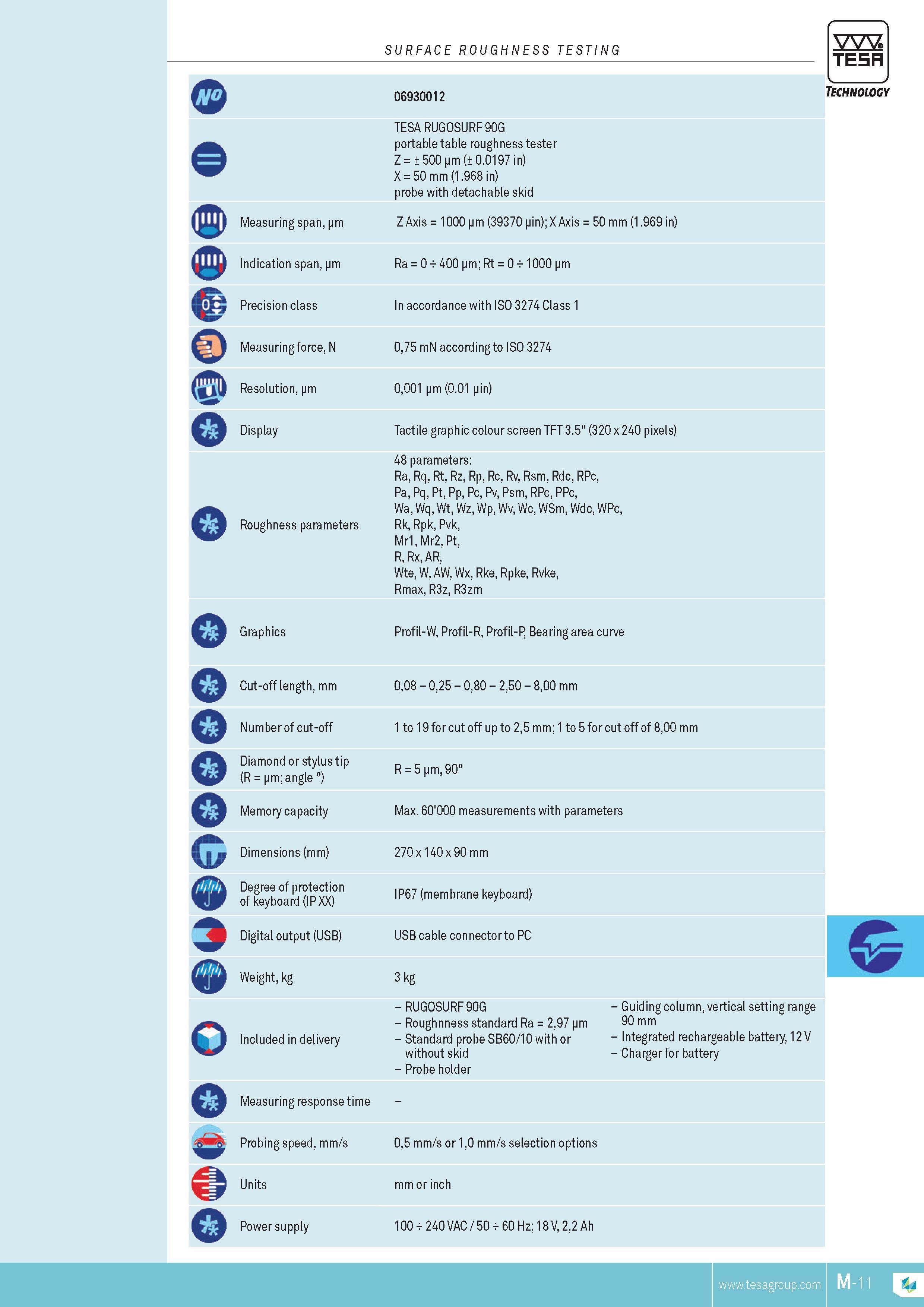

surface roughness testing 06930012 TESA RUGOSURF 90G portable table roughness tester Z 500 pm ( 0.0197 in) X 50 mm (1.968 in) probe with detachable skid Measuring span pm Z Axis 1000 pm (39370 pin); X Axis 50 mm (1.969 in) Indication span pm Ra 0 t 400 pm; Rt 0 t 1000 pm Precision class In accordance with ISO 3274 Class 1 Measuring force N 075 mN according to ISO 3274 Resolution pm 0001 pm (0.01 pin) Display Tactile graphic colour screen TFT 3.5" (320 x 240 pixels) Roughness parameters 48 parameters Ra Rq Rt Rz Rp Rc Rv Rsm Rdc RPc Pa Pq Pt Pp Pc Pv Psm RPc PPc Wa Wq Wt Wz Wp Wv Wc WSm Wdc WPc Rk Rpk Pvk Mr1 Mr2 Pt R Rx AR Wte W AW Wx Rke Rpke Rvke Rmax R3z R3zm Graphics Profil-W Profil-R Profil-P Bearing area curve Cut-off length mm 008 025 080 250 800 mm Number of cut-off 1 to 19 for cut off up to 25 mm; 1 to 5 for cut off of 800 mm Diamond or stylus tip (R pm; angle ) R II 5 p 9 O Memory capacity Max. 60'000 MEASUREMENTs with parameters Dimensions (mm) 270 x 140 x 90 mm Degree of protection of keyboard (IP XX) IP67 (membrane keyboard) Digital output (USB) USB cable connector to PC Weight kg g k 3 Included in delivery RUGOSURF90G Roughnness standard Ra 297 pm Standard probe SB60 10 with or without skid Probe holder Guiding column vertical setting range 90 mm Integrated rechargeable battery 12 V Charger for battery Measuring response time Probing speed mm s 05 mm s or 10 mm s selection options Units mm or inch Power supply 100 t 240 VAC 50 t 60 Hz; 18 V 22 Ah TESA Technology TESA M-1
