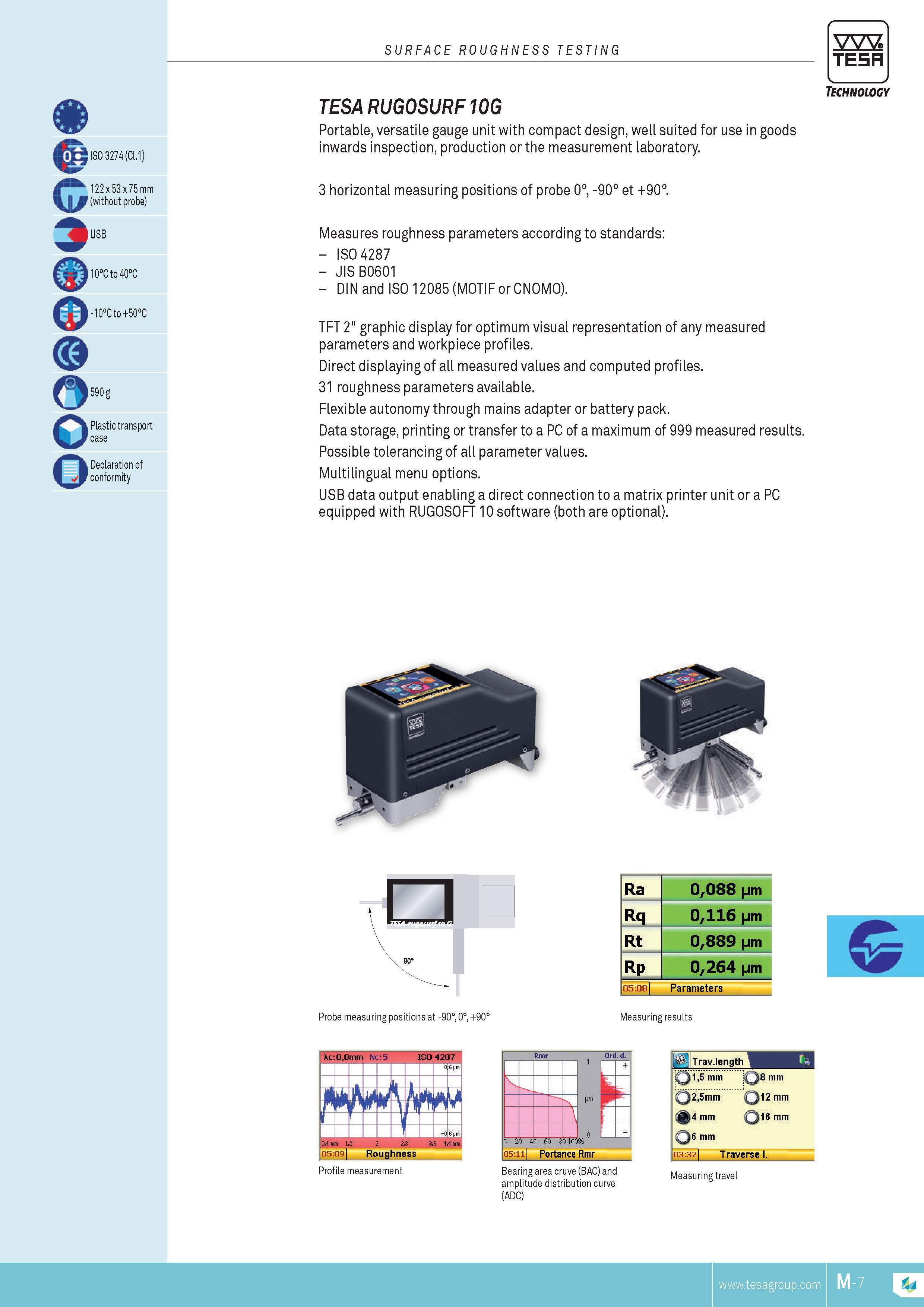

surface roughness testing TESA 0 G 3 o ISO 3274 (Cl.1) 122 x 53 x 75 mm (without probe) USB 10C to 40C -10Cto+50C Plastic transport case Declaration of conformity TESA RUGOSURF10G Portable versatile gauge unit with compact design well suited for use in goods inwards inspection production or the MEASUREMENT laboratory. 3 horizontal measuring positions of probe 0 -90 et +90. Measures roughness parameters according to standards ISO 4287 JIS B0601 DIN and ISO 12085 (MOTIF or CNOMO). TFT 2" graphic display for optimum visual representation of any measured parameters and workpiece profiles. Direct displaying of all measured values and computed profiles. 31 roughness parameters available. Flexible autonomy through mains adapter or battery pack. Data storage printing or transfer to a PC of a maximum of 999 measured results. Possible tolerancing of all parameter values. Multilingual menu options. USB data output enabling a direct connection to a matrix printer unit or a PC equipped with RUGOSOFT 10 software (both are optional). Technology Probe measuring positions at -90 0 +90 Measuring results Bearing area cruve (BAC) and amplitude distribution curve (ADC) Measuring travel M
