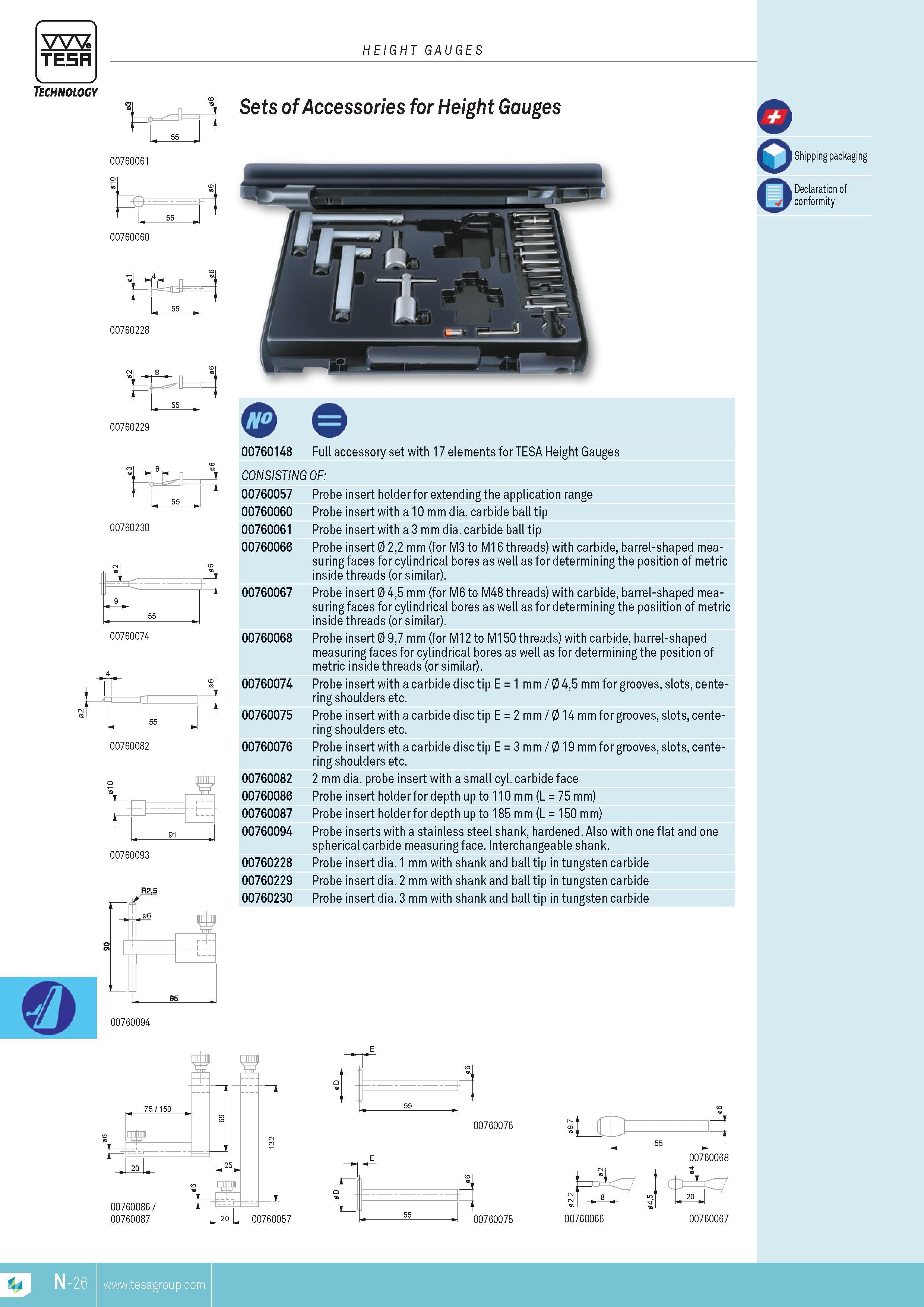

TESA HEIGHT GAuGES Technology j J0 Sets of Accessories for Height Gauges 00760061 00760060 00760228 V 8. . 1 55 1 00760229 . 8 . s 55 00760230 00760074 E3-Z 00760082 00760093 00760094 o Shipping packaging Declaration of conformity 00760148 Full accessory set with 17 elements for TESA Height Gauges CONSISTING OF 00760057 00760060 00760061 00760066 00760067 00760068 00760074 00760075 00760076 00760082 00760086 00760087 00760094 00760228 00760229 00760230 Probe insert holder for extending the application range Probe insert with a 10 mm dia. carbide ball tip Probe insert with a 3 mm dia. carbide ball tip Probe insert 0 22 mm (for M3 to M16 threads) with carbide barrel-shaped measuring faces for cylindrical bores as well as for determining the position of metric inside threads (or similar). Probe insert 0 45 mm (for M6 to M48 threads) with carbide barrel-shaped measuring faces for cylindrical bores as well as for determining the posiition of metric inside threads (or similar). Probe insert 0 97 mm (for M12 to M150 threads) with carbide barrel-shaped measuring faces for cylindrical bores as well as for determining the position of metric inside threads (or similar). Probe insert with a carbide disc tip E 1 mm 0 45 mm for grooves slots centering shoulders etc. Probe insert with a carbide disc tip E 2 mm 0 14 mm for grooves slots centering shoulders etc. Probe insert with a carbide disc tip E 3 mm 0 19 mm for grooves slots centering shoulders etc. 2 mm dia. probe insert with a small cyl. carbide face Probe insert holder for depth up to 110 mm (L 75 mm) Probe insert holder for depth up to 185 mm (L 150 mm) Probe inserts with a stainless steel shank hardened. Also with one flat and one spherical carbide measuring face. Interchangeable shank. Probe insert dia. 1 mm with shank and ball tip in tungsten carbide Probe insert dia. 2 mm with shank and ball tip in tungsten carbide Probe insert dia. 3 mm with shank and ball tip in tungsten carbide 00760076 & 00760075 00760066 00760068 00760067 N-26 TESA 55 55 55 55 4 55 91 06 E 55 55 E 55
