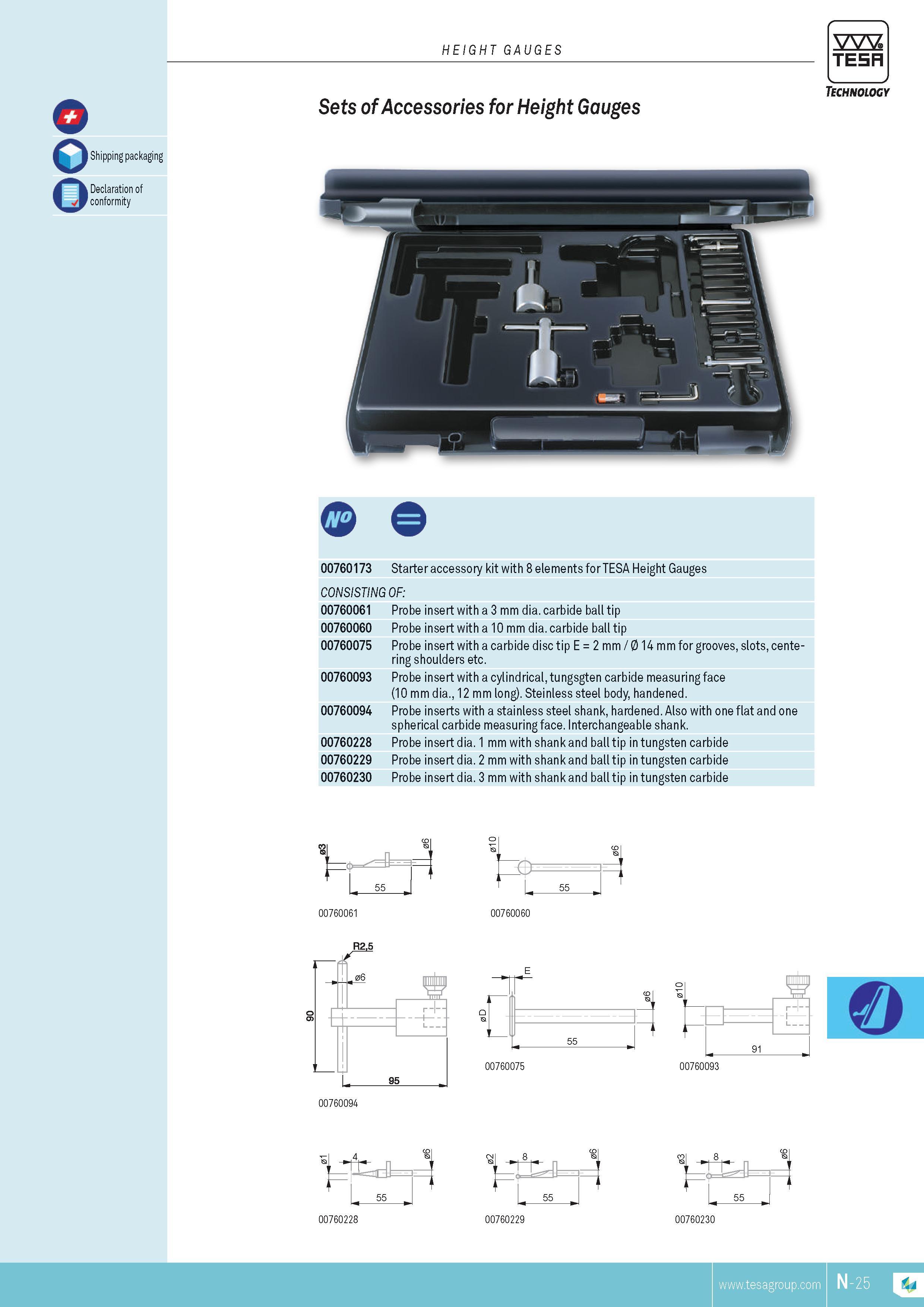

HEIGHT GAUGES TESA o Shipping packaging Declaration of conformity o Technology Sets of Accessories for Height Gauges O 00760173 Starter accessory kit with 8 elements for TESA Height Gauges CONSISTING OF 00760061 Probe insert with a 3 mm dia. carbide ball tip 00760060 Probe insert with a 10 mm dia. carbide ball tip 00760075 Probe insert with a carbide disc tip E 2 mm 0 14 mm for grooves slots centering shoulders etc. 00760093 Probe insert with a cylindrical tungsgten carbide measuring face (10 mm dia. 12 mm long). Steinless steel body handened. 00760094 Probe inserts with a stainless steel shank hardened. Also with one flat and one spherical carbide measuring face. Interchangeable shank. 00760228 Probe insert dia. 1 mm with shank and ball tip in tungsten carbide 00760229 Probe insert dia. 2 mm with shank and ball tip in tungsten carbide 00760230 Probe insert dia. 3 mm with shank and ball tip in tungsten carbide 00760061 00760060 55
