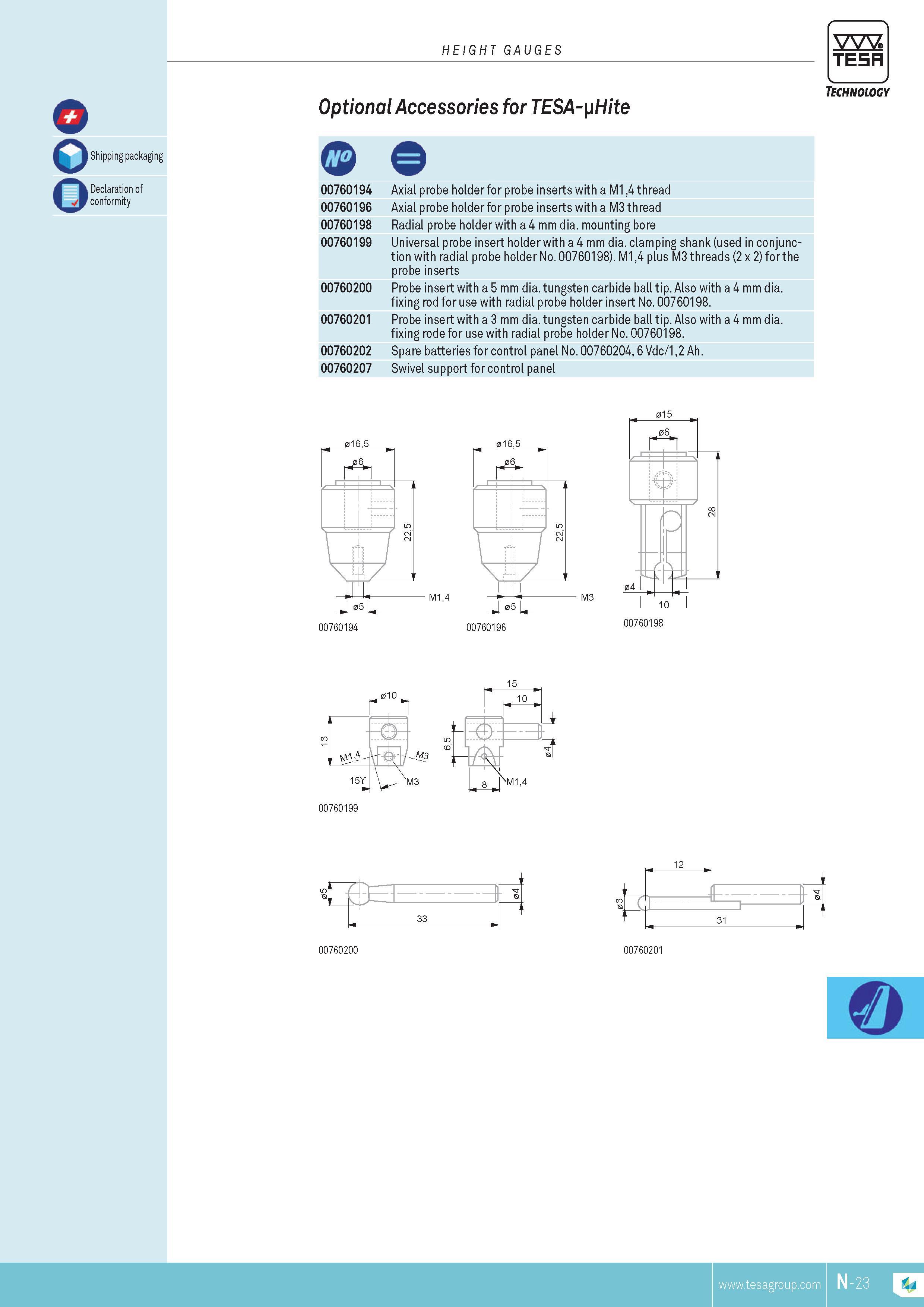

HEIGHT GAUGES TESA Optional Accessories for TESA-pHite Technology Shipping packaging Declaration of conformity O 00760194 Axial probe holder for probe inserts with a M14 thread 00760196 Axial probe holder for probe inserts with a M3 thread 00760198 Radial probe holder with a 4 mm dia. mounting bore 00760199 Universal probe insert holder with a 4 mm dia. clamping shank (used in conjunction with radial probe holder No. 00760198). M14 plus M3 threads (2 x 2) for the probe inserts 00760200 Probe insert with a 5 mm dia. tungsten carbide ball tip. Also with a 4 mm dia. fixing rod for use with radial probe holder insert No. 00760198. 00760201 Probe insert with a 3 mm dia. tungsten carbide ball tip. Also with a 4 mm dia. fixing rode for use with radial probe holder No. 00760198. 00760202 Spare batteries for control panel No. 00760204 6 Vdc 12 Ah. 00760207 Swivel support for control panel 015 06 04 ih 1 10 1 00760198 1 s 33 00760200 tf 00760201 12 31 TESA N-23
