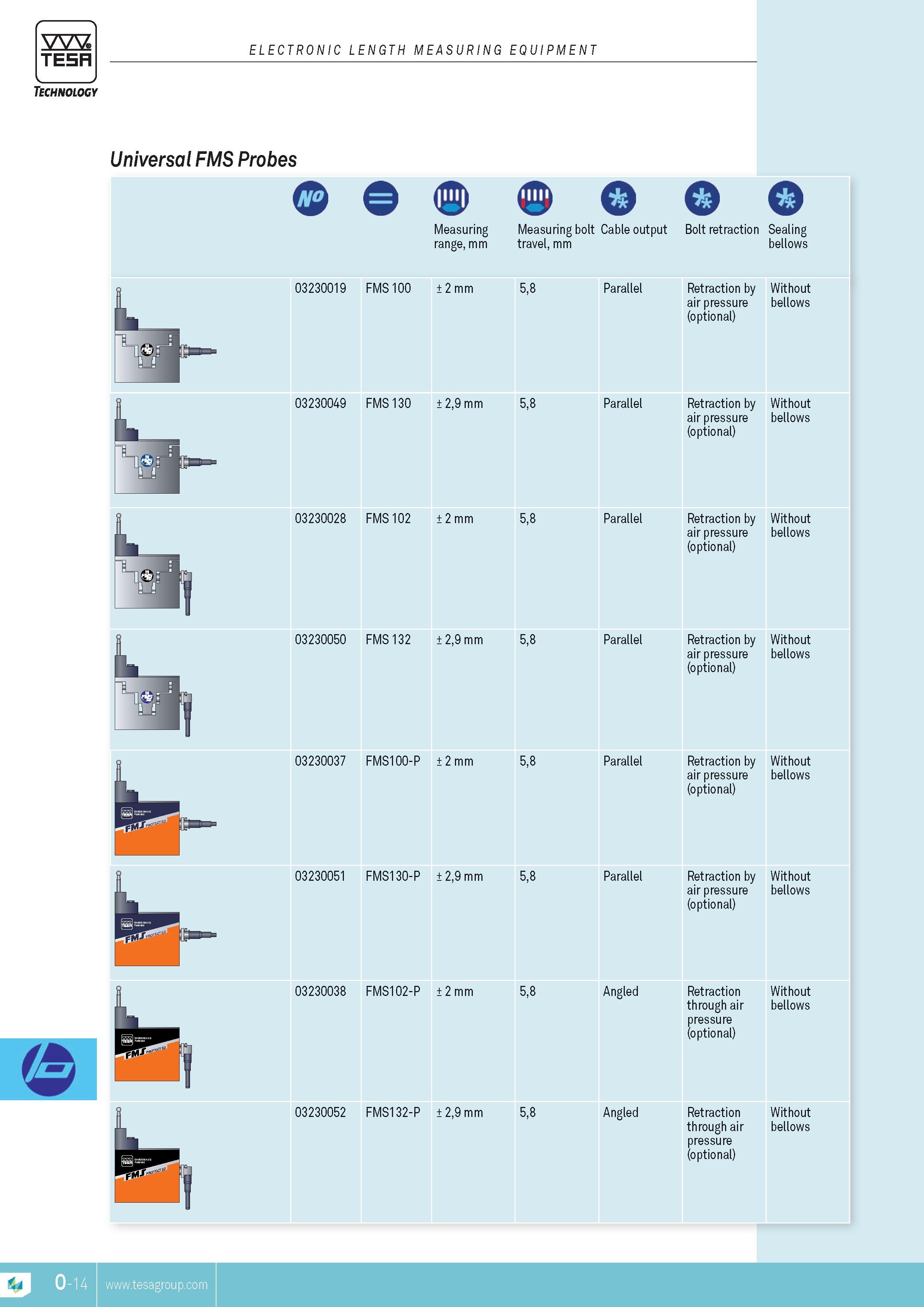

TESA ELECTRONIC LENGTH MEASURING EQUIPMENT Technology Universal FMS Probes Measuring Measuring bolt Cable output Bolt retraction Sealing range mm travel mm bellows 03230019 FMS 100 2 mm 58 Parallel 03230049 FMS 130 29 mm 58 Parallel Retraction by Without air pressure bellows (optional) Retraction by Without air pressure bellows (optional) 03230028 FMS 102 2 mm 58 Parallel Retraction by Without air pressure bellows (optional) 03230050 FMS 132 29 mm 58 Parallel Retraction by Without air pressure bellows (optional) 03230037 FMS100-P 2 mm 58 Parallel Retraction by Without air pressure bellows (optional) 03230051 FMS130-P 29 mm 58 Parallel Retraction by Without air pressure bellows (optional) 03230038 FMS102-P 2 mm 58 Angled 03230052 FMS132-P 29 mm 58 Angled Retraction Without through air bellows pressure (optional) Retraction Without through air bellows pressure (optional) TESA
