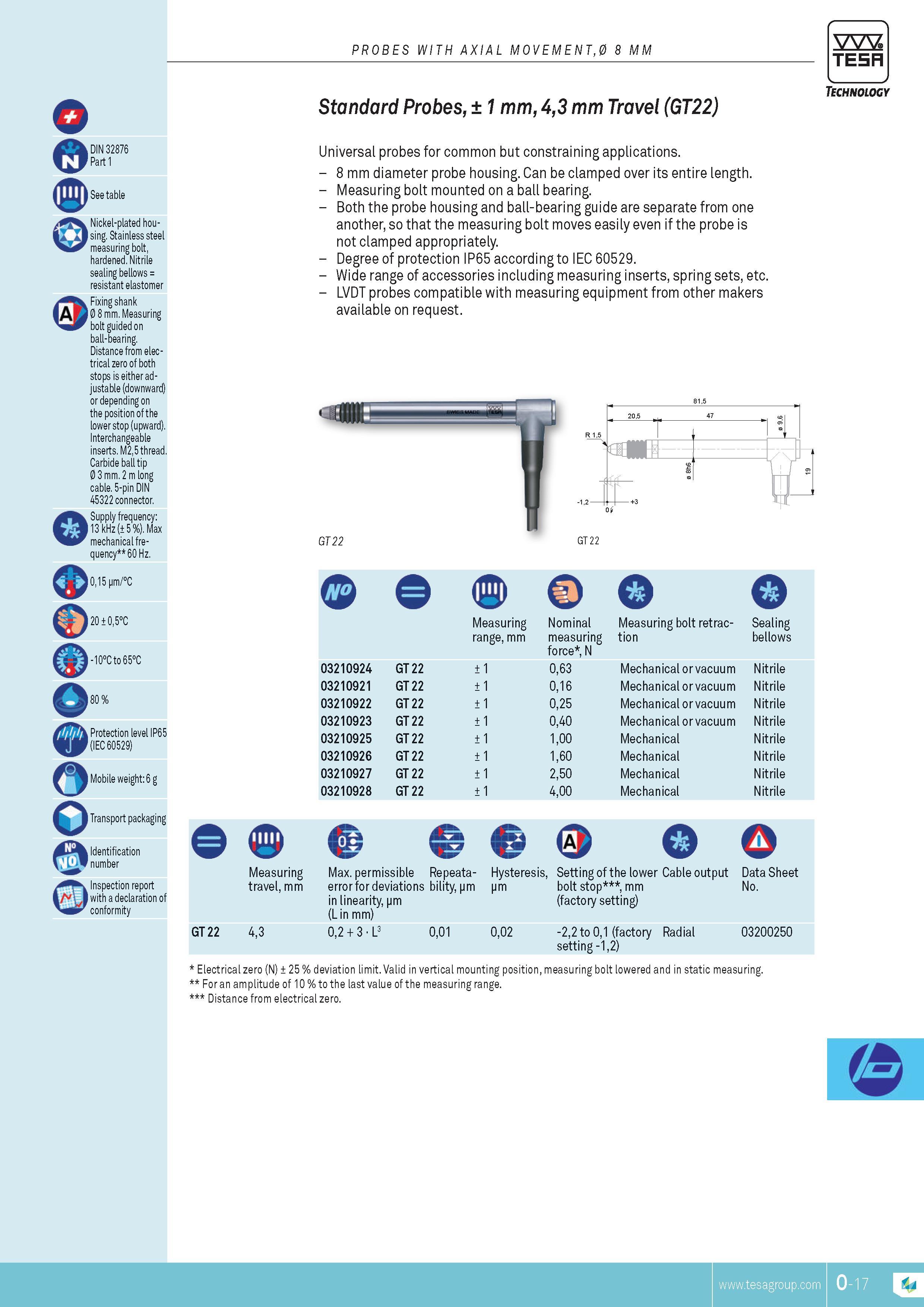

DIN 32876 Part 1 See table Q IP o m Nickel-plated housing. Stainless steel measuring bolt hardened. Nitrile sealing bellows resistant elastomer Fixing shank 0 8 mm. Measuring bolt guided on ball-bearing. Distance from electrical zero of both stops is either adjustable (downward) or depending on the position of the lower stop (upward). Interchangeable inserts. M25 thread. Carbide ball tip 0 3 mm. 2 m long cable. 5-pin DIN 45322 connector. Supply frequency 13 kHz ( 5 %). Max mechanical frequency 60 Hz. 015 pm C 20 05C 10C to 65C Protection level IP65 (IEC 60529) Mobile weight 6 g Transport packaging Identification number Inspection report with a declaration of conformity PROBES WITH AXIAL MOVEMENT0 8 MM Standard Probes 1 mm 43 mm Travel (GT22) Universal probes for common but constraining applications. 8 mm diameter probe housing. Can be clamped over its entire length. Measuring bolt mounted on a ball bearing. Both the probe housing and ball-bearing guide are separate from one another so that the measuring bolt moves easily even if the probe is not clamped appropriately. Degree of protection IP65 according to IEC 60529. Wide range of accessories including measuring inserts spring sets etc. LVDT probes compatible with measuring equipment from other makers available on request. GT22 GT 22 Measuring Nominal Measuring bolt retraction Sealing bellows TESA Technology force N 03210924 GT 22 1 063 Mechanical or vacuum N trile 03210921 GT 22 1 016 Mechanical or vacuum N trile 03210922 GT 22 1 025 Mechanical or vacuum N trile 03210923 GT 22 1 040 Mechanical or vacuum N trile 03210925 GT 22 1 100 Mechanical N trile 03210926 GT 22 1 160 Mechanical N trile 03210927 GT 22 1 250 Mechanical N trile 03210928 GT 22 1 400 Mechanical N trile Measuring travel mm Max. permissible error for deviations in linearity pm (L in mm) Repeatability pm Hysteresis pm Setting of the lower bolt stop mm (factory setting) Cable output Data Sheet No. GT 22 43 02 + 3 L3 001 002 -22 to 01 (factory setting -12) Radial 03200250 Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. For an amplitude of 10 % to the last value of the measuring range. Distance from electrical zero. O
