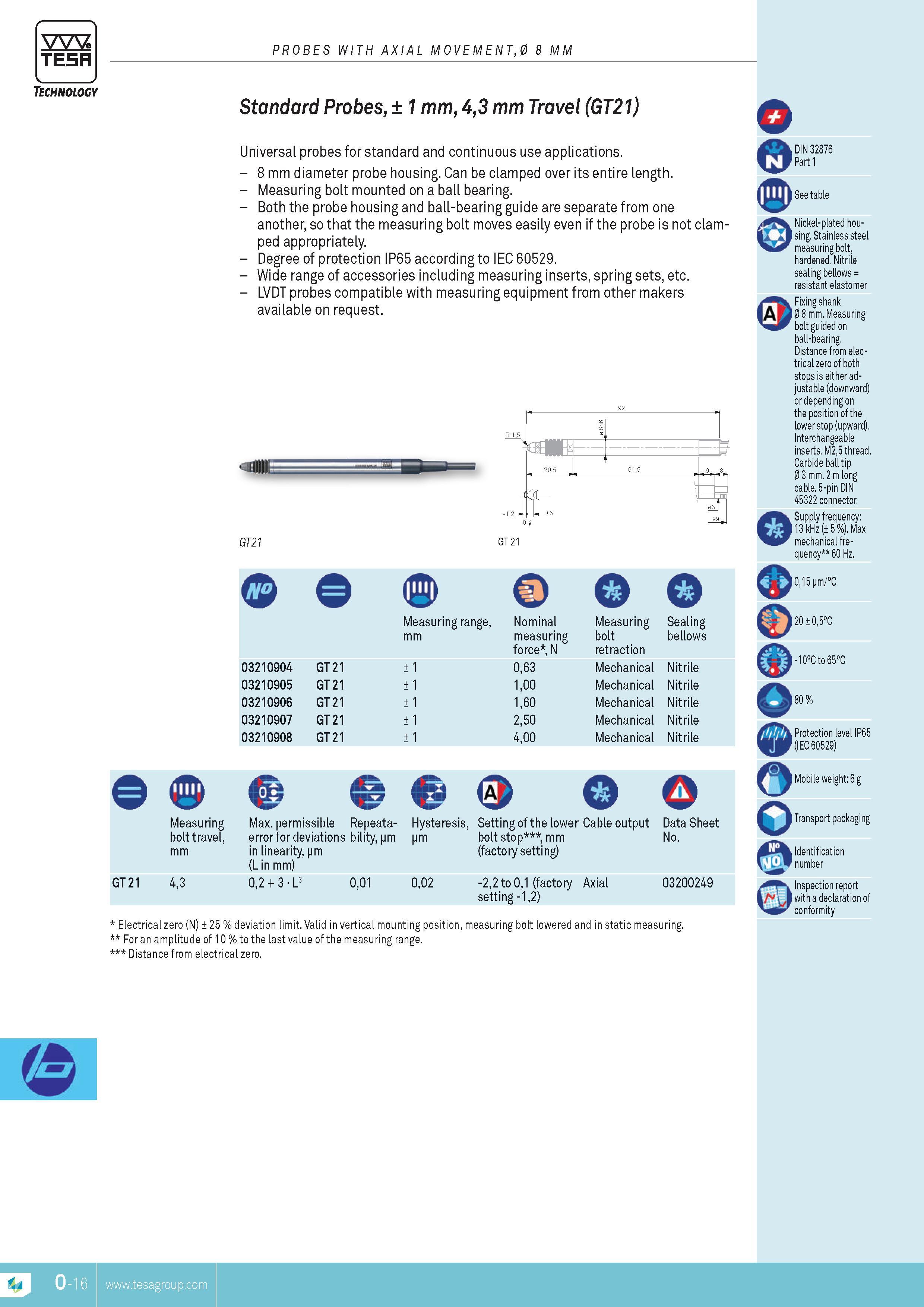

TESA PROBES WITH AXIAL MOVEMENT0 8 MM Technology Standard Probes 1 mm 43 mm Travel (GT21) Universal probes for standard and continuous use applications. 8 mm diameter probe housing. Can be clamped over its entire length. Measuring bolt mounted on a ball bearing. Both the probe housing and ball-bearing guide are separate from one another so that the measuring bolt moves easily even if the probe is not clamped appropriately. Degree of protection IP65 according to IEC 60529. Wide range of accessories including measuring inserts spring sets etc. LVDT probes compatible with measuring equipment from other makers available on request. 03 T GT21 GT 21 o Measuring range Nominal Measuring Sealing mm measuring bolt bellows force N retraction 03210904 GT 21 1 063 Mechanical Nitrile 03210905 GT 21 1 100 Mechanical Nitrile 03210906 GT 21 1 160 Mechanical Nitrile 03210907 GT 21 1 250 Mechanical Nitrile 03210908 GT 21 1 400 Mechanical Nitrile Measuring bolt travel mm Max. permissible error for deviations in linearity pm (L in mm) Repeatability pm Hysteresis pm Setting of the lower bolt stop mm (factory setting) Cable output Data Sheet No. GT 21 43 02 + 3 L3 001 002 -22 to 01 (factory setting -12) Axial 03200249 Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. For an amplitude of 10 % to the last value of the measuring range. DIN 32876 Part 1 See table Nickel-plated housing. Stainless steel measuring bolt hardened. Nitrile sealing bellows resistant elastomer Fixing shank A 0 8 mm. Measuring bolt guided on ball-bearing. Distance from electrical zero of both stops is either adjustable (downward) or depending on the position of the lower stop (upward). Interchangeable inserts. M25 thread. Carbide ball tip 0 3 mm. 2 m long cable. 5-pin DIN 45322 connector. Supply frequency 13 kHz ( 5 %). Max mechanical frequency 60 Hz. e 015 pm C 20 05C 10C to 65C Protection level IP65 (IEC 60529) Mobile weight 6 g Transport packaging Identification number Inspection report with a declaration of conformity Distance from electrical zero. 92 R 1.5 99
