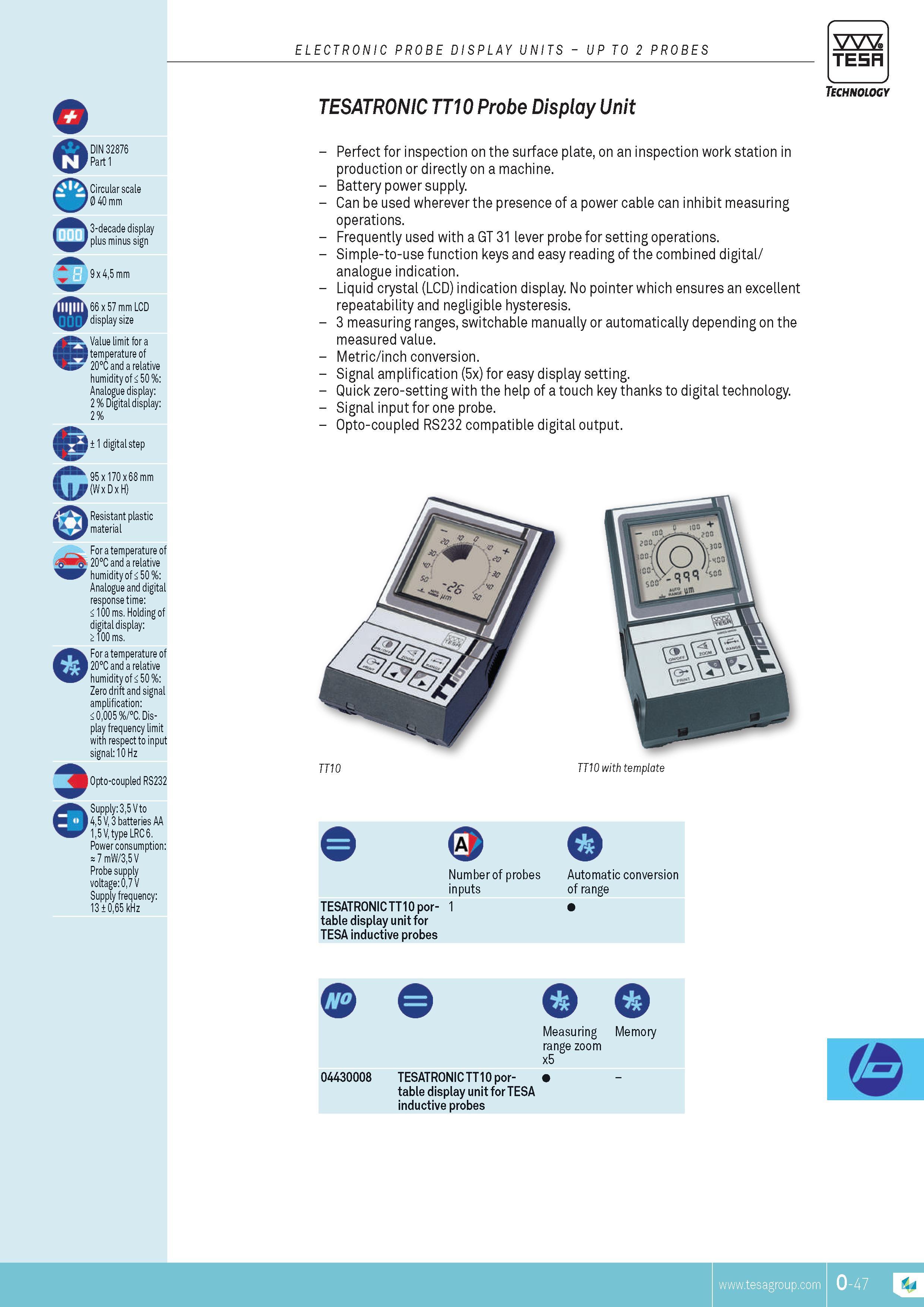

electronic probe display units UP TO 2 probes TESA DIN 32876 Part 1 Circular scale 0 40 mm 3-decade display plus minus sign 9 x 45 mm 66 x 57 mm LCD display size Value limit for a temperature of 20C and a relative humidity of 50 % Analogue display 2 % Digital display 2 % 1 digital step 95 x 170 x 68 mm (W x D x H) Resistant plastic material For a temperature of 20C and a relative humidity of 50 % Analogue and digital response time 100 ms. Holding of digital display 100 ms. For a temperature of 20C and a relative humidity of 50 % Zero drift and signal amplification 0005 % C. Display frequency limit with respect to input signal 10 Hz Opto-coupled RS232 Supply 35 V to 4.5 V 3 batteries AA 1.5 V type LRC 6. Power consumption 7 mW 35 V Probe supply voltage 07 V Supply frequency 13 065 kHz Technology TESATRoNic TT10 probe Display unit Perfect for inspection on the surface plate on an inspection work station in production or directly on a machine. Battery power supply. Can be used wherever the presence of a power cable can inhibit measuring operations. Frequently used with a GT 31 lever probe for setting operations. Simple-to-use function keys and easy reading of the combined digital analogue indication. Liquid crystal (LCD) indication display. No pointer which ensures an excellent repeatability and negligible hysteresis. 3 measuring ranges switchable manually or automatically depending on the measured value. Metric inch conversion. Signal amplification (5x) for easy display setting. Quick zero-setting with the help of a touch key thanks to digital technology. Signal input for one probe. Opto-coupled RS232 compatible digital output. TT10 TT10 with template Number of probes inputs Automatic conversion of range TESATRONIC TT10 portable display unit for TESA inductive probes 1 Q Measuring range zoom x5 Memory 04430008 TESATRONIC TT10 portable display unit for TESA inductive probes o O
