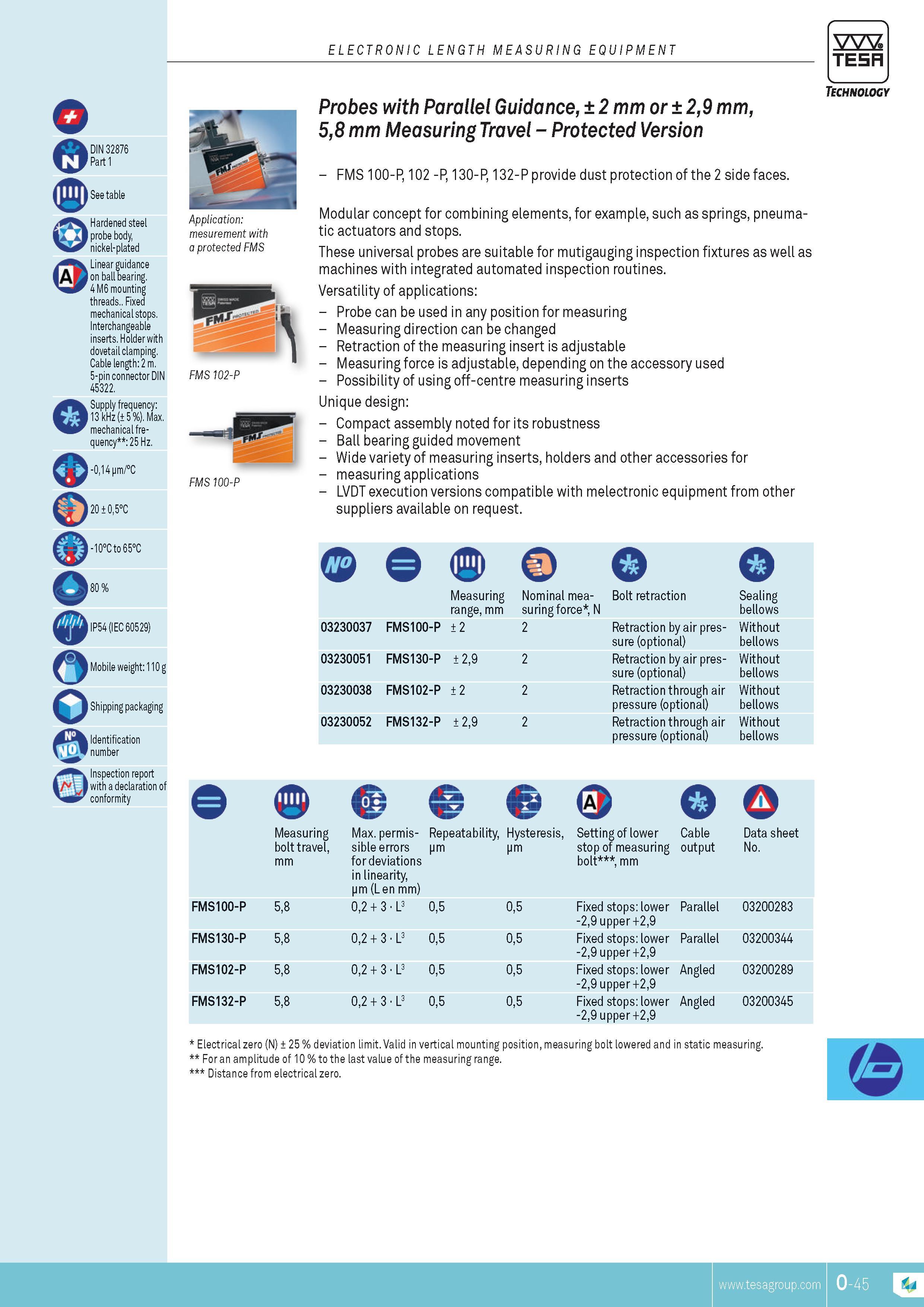

ELECTRONIC LENGTH MEASURING EQUIPMENT DIN 32876 Part 1 See table Hardened steel probe body nickel-plated Linear guidance A on ball bearing. 4 M6 mounting threads.. Fixed mechanical stops. Interchangeable inserts. Holder with dovetail clamping. Cable length 2 m. 5-pin connector DIN 45322. Supply frequency 13 kHz ( 5 %). Max. mechanical frequency 25 Hz. IP o m -014 pm C 20 05C -10C to 65C 80 % IP54 (IEC 60529) Mobile weight 110 g Shipping packaging Identification number Inspection report with a declaration of conformity Application mesurement with a protected FMS Probes with Parallel Guidance 2 mm or 29 mm 58 mm Measuring Travel Protected Version FMS 100-P 102 -P 130-P 132-P provide dust protection of the 2 side faces. Modular concept for combining elements for example such as springs pneumatic actuators and stops. These universal probes are suitable for mutigauging inspection fixtures as well as machines with integrated automated inspection routines. Versatility of applications Probe can be used in any position for measuring Measuring direction can be changed Retraction of the measuring insert is adjustable Measuring force is adjustable depending on the accessory used Possibility of using off-centre measuring inserts Unique design Compact assembly noted for its robustness Ball bearing guided movement Wide variety of measuring inserts holders and other accessories for measuring applications LVDT execution versions compatible with melectronic equipment from other suppliers available on request. FMS 102-P FMS 100-P Measuring Nominal mea- Bolt retraction Sealing range mm suring force N bellows 03230037 FMS100-P 2 2 Retraction by air pres- Without sure (optional) bellows 03230051 FMS130-P 29 2 Retraction by air pres- Without sure (optional) bellows 03230038 FMS102-P 2 2 Retraction through air Without pressure (optional) bellows 03230052 FMS132-P 29 2 Retraction through air Without pressure (optional) bellows Measuring Max. permis- Repeatability Hysteresis Setting of lower bolt travel sible errors pm FMS100-P FMS130-P FMS102-P FMS132-P mm 5.8 5.8 5.8 5.8 for deviations in linearity pm (L en mm) 02 + 3 L3 02 + 3 L3 02 + 3 L3 02 + 3 L3 05 05 05 05 pm 05 05 05 05 stop of measuring bolt mm Fixed stops lower -29 upper +29 Fixed stops lower -29 upper +29 Fixed stops lower -29 upper +29 Fixed stops lower -29 upper +29 Cable Data sheet output No. Parallel 03200283 Parallel 03200344 Angled 03200289 Angled 03200345 Electrical zero (N) 25 % deviation limit. Valid in vertical mounting position measuring bolt lowered and in static measuring. For an amplitude of 10 % to the last value of the measuring range. Distance from electrical zero. TESA Technology O
