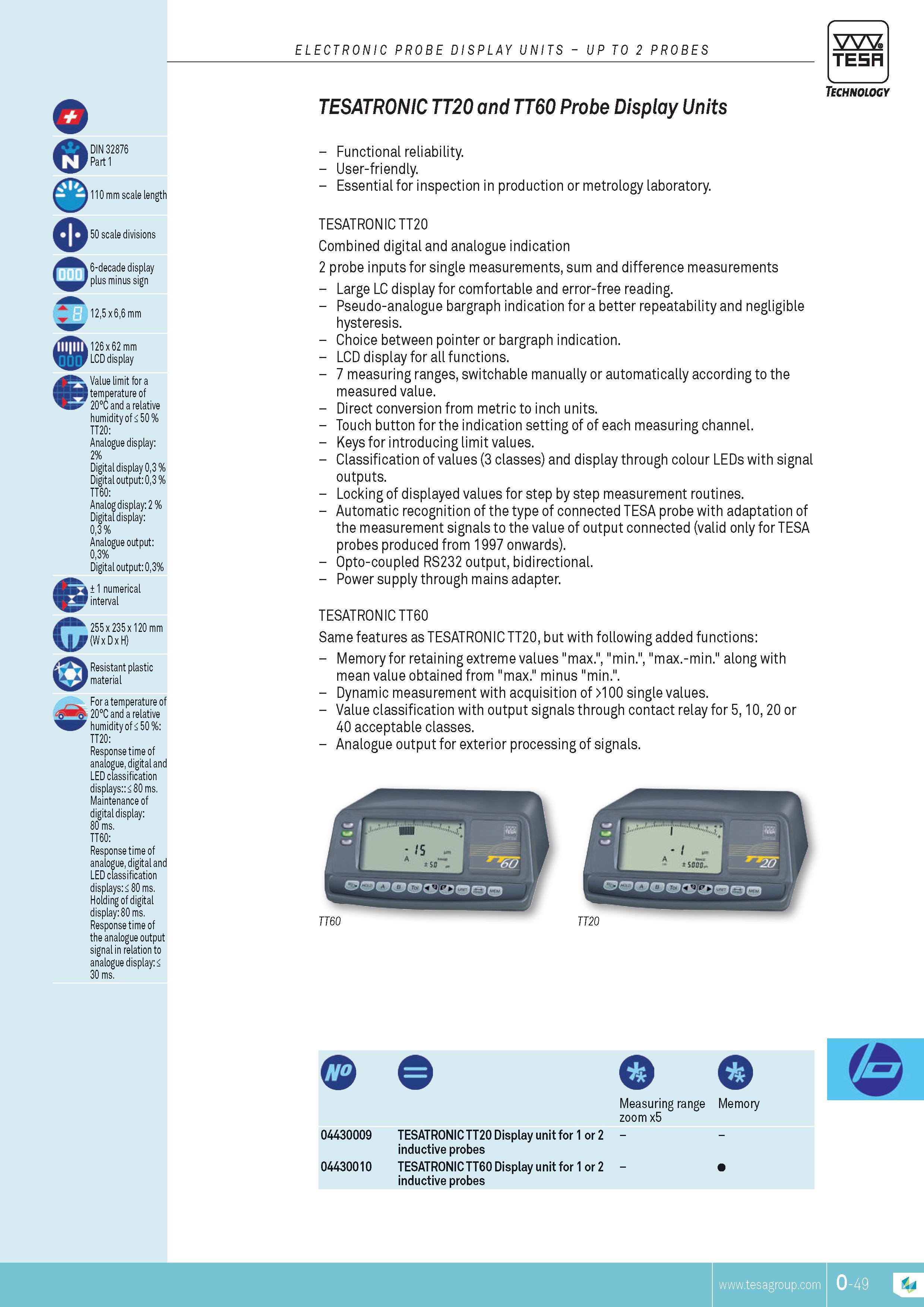

ELECTRONIC PROBE DISPLAY UNITS UP TO 2 PROBES TESA a DIN 32876 Part 1 110 mm scale length 50 scale divisions 6-decade display plus minus sign 125 x 66 mm 126 x 62 mm LCD display Value limit for a temperature of 20C and a relative humidity of 50 % TT20 Analogue display 2% Digital display 03 % Digital output 03 % TT60 Analog display 2 % Digital display 03 % Analogue output 03% Digital output 03% 1 numerical interval 255 x 235 x 120 mm (W x D x H) Resistant plastic material For a temperature of 20C and a relative humidity of 50 % TT20 response time of analogue digital and Led classification displays 80 ms. Maintenance of digital display 80 ms. TT60 response time of analogue digital and Led classification displays 80 ms. Holding of digital display 80 ms. response time of the analogue output signal in relation to analogue display 30 ms. TESATRONIC TT20 and TT60 Probe Display Units Functional reliability. User-friendly. Essential for inspection in production or metrology laboratory. TESATRONIC TT20 Combined digital and analogue indication 2 probe inputs for single MEASUREMENTs sum and difference MEASUREMENTs Large LC display for comfortable and error-free reading. Pseudo-analogue bargraph indication for a better repeatability and negligible hysteresis. Choice between pointer or bargraph indication. LCD display for all functions. 7 measuring ranges switchable manually or automatically according to the measured value. Direct conversion from metric to inch units. Touch button for the indication setting of of each measuring channel. Keys for introducing limit values. Classification of values (3 classes) and display through colour LEDs with signal outputs. Locking of displayed values for step by step MEASUREMENT routines. Automatic recognition of the type of connected TESA probe with adaptation of the MEASUREMENT signals to the value of output connected (valid only for TESA probes produced from 1997 onwards). Opto-coupled RS232 output bidirectional. Power supply through mains adapter. TESATRONIC TT60 Same features as TESATRONIC TT20 but with following added functions Memory for retaining extreme values "max." "min." "max.-min." along with mean value obtained from "max." minus "min.". Dynamic MEASUREMENT with acquisition of 100 single values. Value classification with output signals through contact relay for 5 10 20 or 40 acceptable classes. Analogue output for exterior processing of signals. Technology TT60 TT20 e Q Measuring range zoom x5 Memory 04430009 TESATRONIC TT20 Display unit for 1 or 2 inductive probes 04430010 TESATRONIC TT60 Display unit for 1 or 2 inductive probes O
