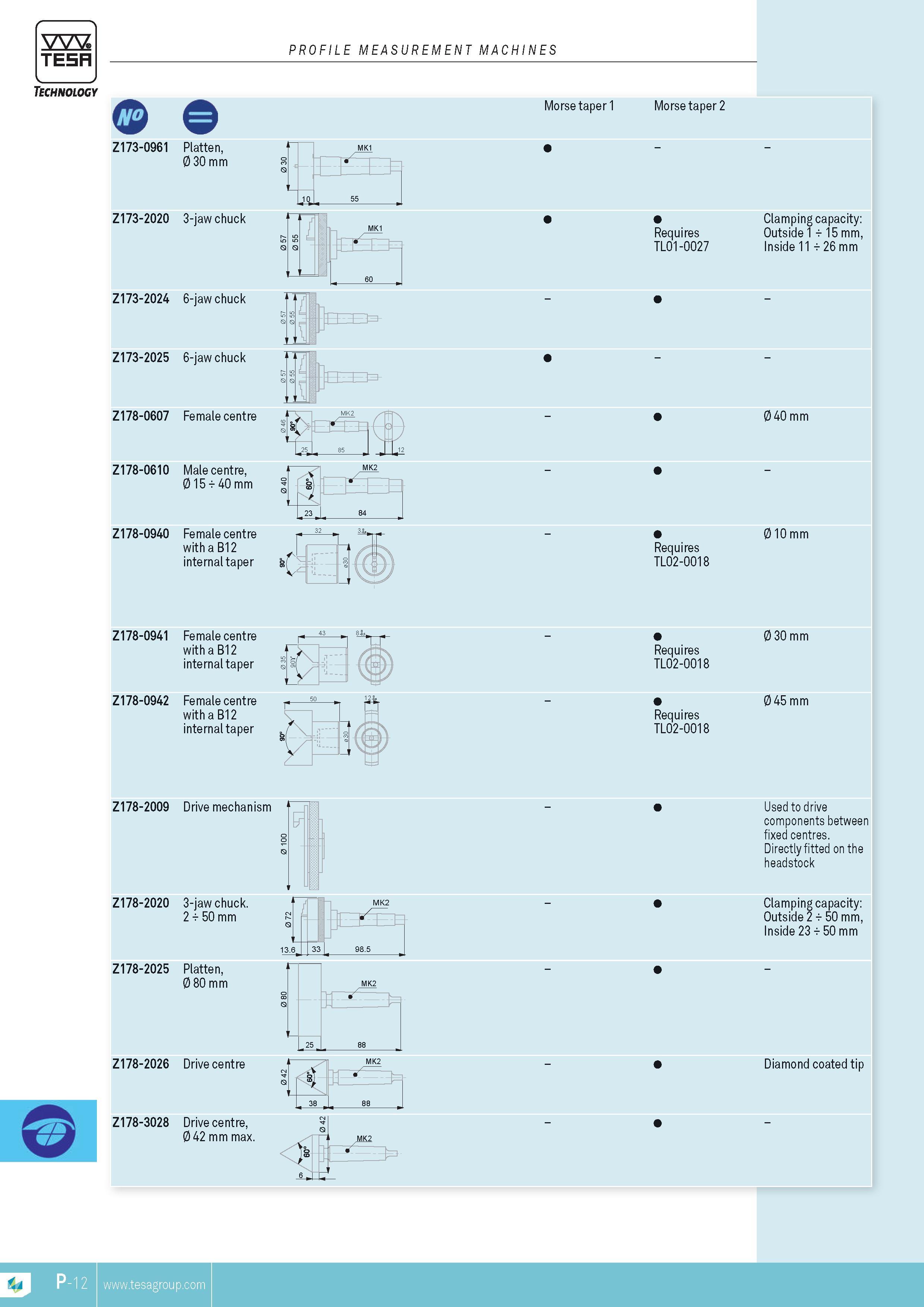

TESA Technology PROFILE MEASUREMENT MACHINES Z173-0961 Platten 0 30 mm Z173-2020 3-jaw chuck Z173-2024 6-jaw chuck Z173-2025 6-jaw chuck Z178-0607 Female centre Z178-0610 Male centre 0 15 t 40 mm Z178-0940 Female centre with a B12 U I internal taper i 1 3 Morse taper 1 Morse taper 2 Requires TL01-0027 Requires TL02-0018 Clamping capacity Outside 1 t 15 mm Inside 11 t 26 mm 0 40 mm 0 10 mm Z178-0941 Female centre with a B12 f internal taper Z178-0942 Female centre with a B12 internal taper 43 8J0 Requires TL02-0018 Requires TL02-0018 0 30 mm 0 45 mm Z178-2009 Drive mechanism Z178-2020 3-jaw chuck. 2 t 50 mm Z178-2025 Platten 0 80 mm Z178-2026 Drive centre Z178-3028 Drive centre 0 42 mm max. Used to drive components between fixed centres. Directly fitted on the headstock Clamping capacity Outside 2 t 50 mm Inside 23 t 50 mm Diamond coated tip TESA MK1 55 MK1 60 MK2 12 MK2 23 34 32
