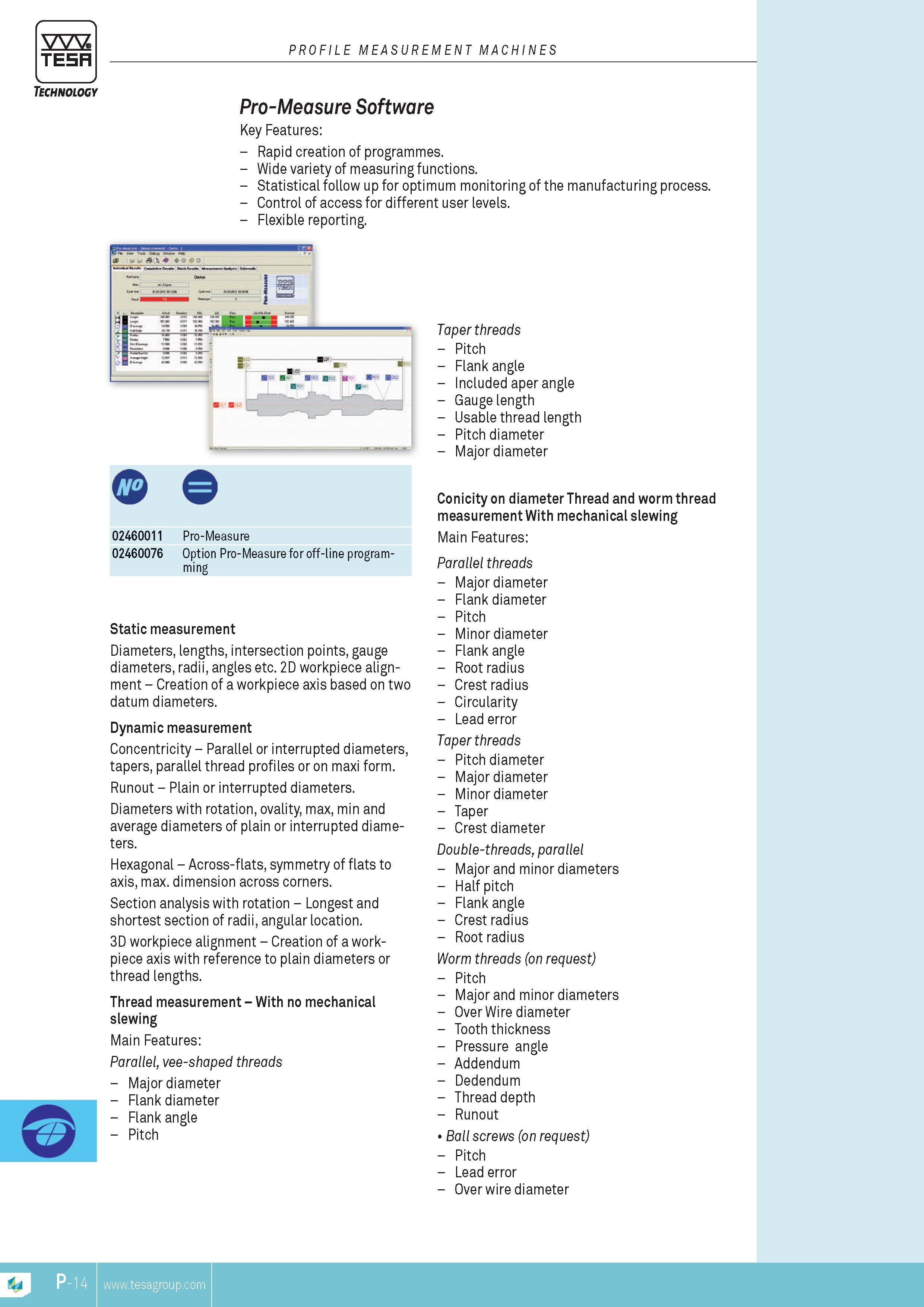

TESA Technology PROFILE MEASUREMENT MACHINES Pro-Measure Software Key Features Rapid creation of programmes. Wide variety of measuring functions. Statistical follow up for optimum monitoring of the manufacturing process. Control of access for different user levels. Flexible reporting. Taper threads Pitch Flank angle Included aper angle Gauge length Usable thread length Pitch diameter Major diameter (2 O 02460011 Pro-Measure 02460076 Option Pro-Measure for off-line programming Static MEASUREMENT Diameters lengths intersection points gauge diameters radii angles etc. 2D workpiece alignment Creation of a workpiece axis based on two datum diameters. Dynamic MEASUREMENT Concentricity Parallel or interrupted diameters tapers parallel thread profiles or on maxi form. Runout Plain or interrupted diameters. Diameters with rotation ovality max min and average diameters of plain or interrupted diameters. Hexagonal Across-flats symmetry of flats to axis max. dimension across corners. Section analysis with rotation Longest and shortest section of radii angular location. 3D workpiece alignment Creation of a workpiece axis with reference to plain diameters or thread lengths. Thread MEASUREMENT With no mechanical slewing Main Features Parallel vee-shaped threads Major diameter Flank diameter Flank angle Pitch Conicity on diameter Thread and worm thread MEASUREMENT With mechanical slewing Main Features Parallel threads Major diameter Flank diameter Pitch Minor diameter Flank angle Root radius Crest radius Circularity Lead error Taper threads Pitch diameter Major diameter Minor diameter Taper Crest diameter Double-threads parallel Major and minor diameters Half pitch Flank angle Crest radius Root radius Worm threads (on request) Pitch Major and minor diameters Over Wire diameter Tooth thickness Pressure angle Addendum Dedendum Thread depth Runout Ball screws (on request) Pitch Lead error Over wire diameter TESA
