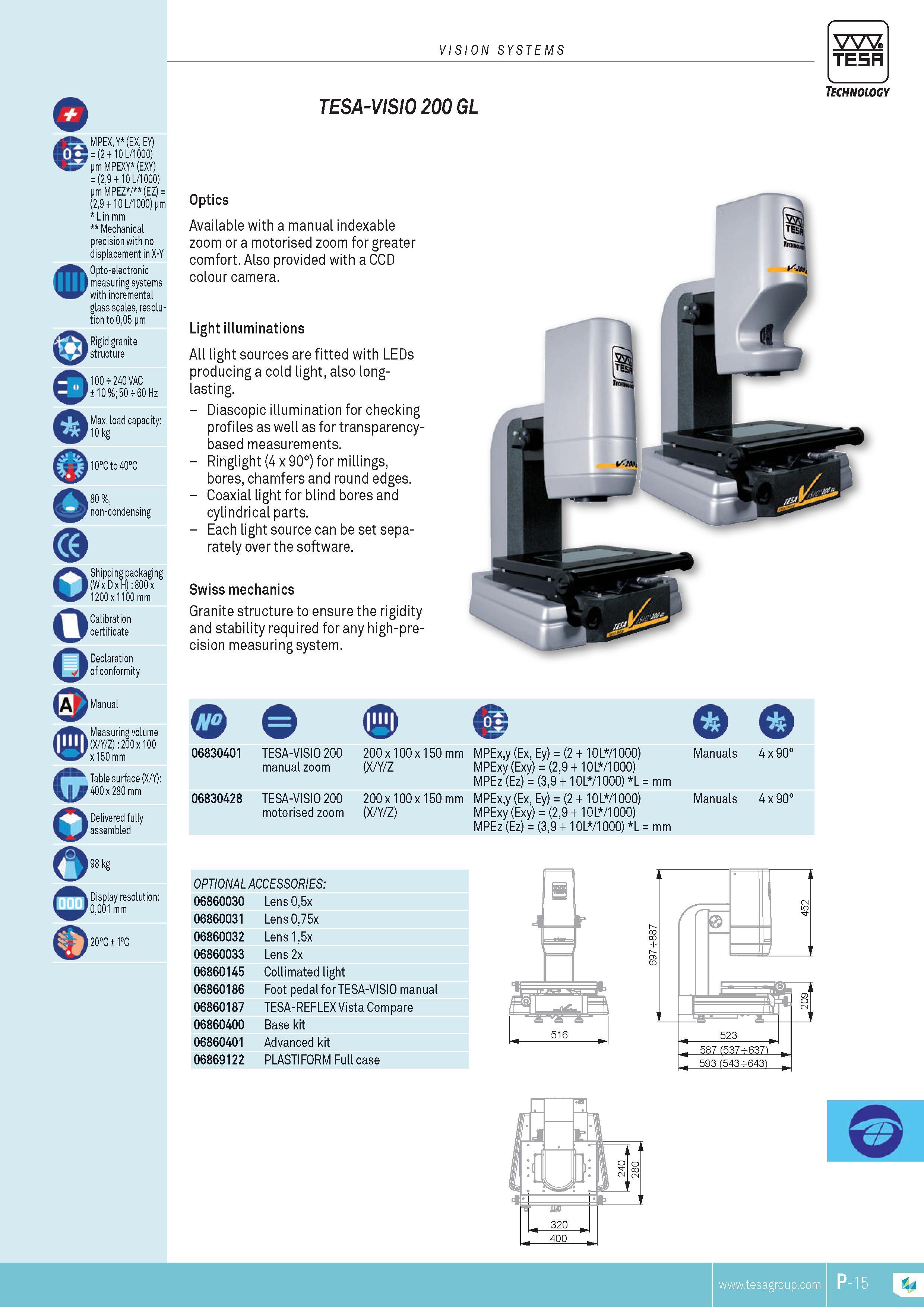

VISION SYSTEMS TESA o MPEX Y (EX EY) (2 + 10 L 1000) pm MPEXY (EXY) (29 + 10 L 1000) pm MPEZ (EZ) (29 + 10 L 1000) pm L in mm Mechanical precision with no displacement in X-Y Opto-electronic measuring systems with incremental glass scales resolution to 005 pm Rigid granite structure 100 t 240 VAC 10 %; 50 t 60 Hz Max. load capacity 1 110 kg 10C to 40C 80 % non-condensing Shipping packaging (W x D x H) 800 x 8 1200x1100 mm Calibration certificate Declaration of conformity Manual Measuring volume (X Y Z) 200 x 100 W x150mm r Table surface (X Y) 400 x 280 mm Delivered fully 3 assembled 98 kg Display resolution 0001 mm 20C1C m Technology TESA-VISIO 200 GL Optics Available with a manual indexable zoom or a motorised zoom for greater comfort. Also provided with a CCD colour camera. Light illuminations All light sources are fitted with LEDs producing a cold light also long-lasting. Diascopic illumination for checking profiles as well as for transparency-based MEASUREMENTs. Ringlight (4 x 90) for millings bores chamfers and round edges. Coaxial light for blind bores and cylindrical parts. Each light source can be set separately over the software. Swiss mechanics Granite structure to ensure the rigidity and stability required for any high-precision measuring system. 06830401 TESA-VISIO 200 manual zoom 06830428 TESA-VISIO 200 motorised zoom 200 x 100 x 150 mm (X Y Z 200 x 100 x 150 mm (X Y Z) MPExy (Ex Ey) (2 + 10L 1000) MPExy (Exy) (29 + 10L 1000) MPEz (Ez) (39 + 10L 1000) L MPExy (Ex Ey) (2 + 10L 1000) MPExy (Exy) (29 + 10L 1000) MPEz (Ez) (39 + 10L 1000) L mm Q Q Manuals 4 x 90 Manuals 4 x 90 OPTIONAL ACCESSORIES 06860030 Lens 05x 06860031 Lens 075x 06860032 Lens 15x 06860033 Lens 2x 06860145 Collimated light 06860186 Foot pedal for TESA-VISIO manual 06860187 TESA-REFLEX Vista Compare 06860400 Base kit 06860401 Advanced kit 06869122 PLASTIFORM Full case TESA P- 5 1
