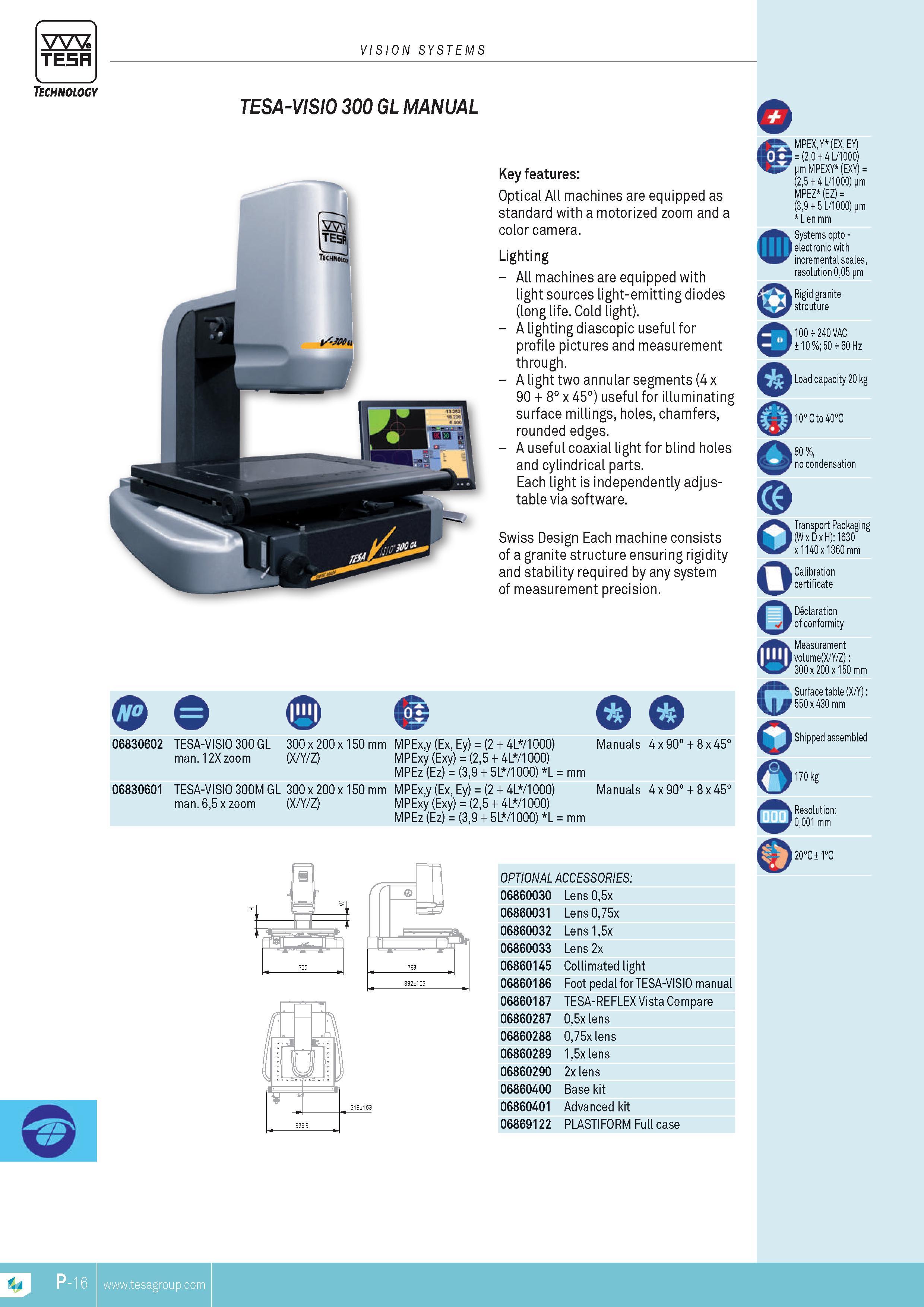

TESA VISION SYSTEMS Technology tesa-visio 300 gl manual Key features Optical All machines are equipped as standard with a motorized zoom and a color camera. Lighting All machines are equipped with light sources light-emitting diodes (long life. Cold light). A lighting diascopic useful for profile pictures and MEASUREMENT through. A light two annular segments (4 x 90 + 8 x 45) useful for illuminating surface millings holes chamfers rounded edges. A useful coaxial light for blind holes and cylindrical parts. Each light is independently adjustable via software. Swiss Design Each machine consists of a granite structure ensuring rigidity and stability required by any system of MEASUREMENT precision. 06830602 TESA-VISIO 300 GL 300 x 200 x 150 mm MPExy (Ex Ey) (2 + 4L 1000) man. 12X zoom (X Y Z) MPExy (Exy) (25 + 4L 1000) MPEz (Ez) (39 + 5L 1000) L 06830601 TESA-VISIO 300M GL 300 x 200 x 150 mm MPExy (Ex Ey) (2 + 4L 1000) man. 65 x zoom (X Y Z) MPExy (Exy) (25 + 4L 1000) MPEz (Ez) (39 + 5L 1000) L Q Q Manuals 4 x 90 + 8 x 45 mm o MPEX Y (EX EY) (20 + 4 L 1000) pm MPEXY (EXY) (25 + 4 L 1000) pm MPEZ (EZ) (39 + 5 L 1000) pm L en mm Systems opto -electronic with incremental scales resolution 005 pm Rigid granite strcuture T o (0) G 100t240 VAC 10 %; 50 t 60 Hz Load capacity 20 kg 10 C to 40C 80 % no condensation Transport Packaging (W x D x H) 1630 x 1140 x 1360 mm Calibration certificate Declaration of conformity MEASUREMENT volume(X Y Z) 300 x 200 x 150 mm Surface table (X Y) 550 x 430 mm Shipped assembled Manuals 4 x 90 + 8 x 45 170 kg Resolution 0001 mm 20C1C OPTIONAL ACCESSORIES 06860030 Len s 05x 06860031 Lens 075x 06860032 Lens 15x 06860033 Lens 2x 06860145 Collimated light 06860186 Foot pedal forTESA-VISIO manual 06860187 TESA-REFLEX Vista Compare 06860287 05x lens 06860288 075x lens 06860289 15x lens 06860290 2x lens 06860400 Base kit 06860401 Advanced kit 06869122 PLASTIFORM Full case -16 TESA
