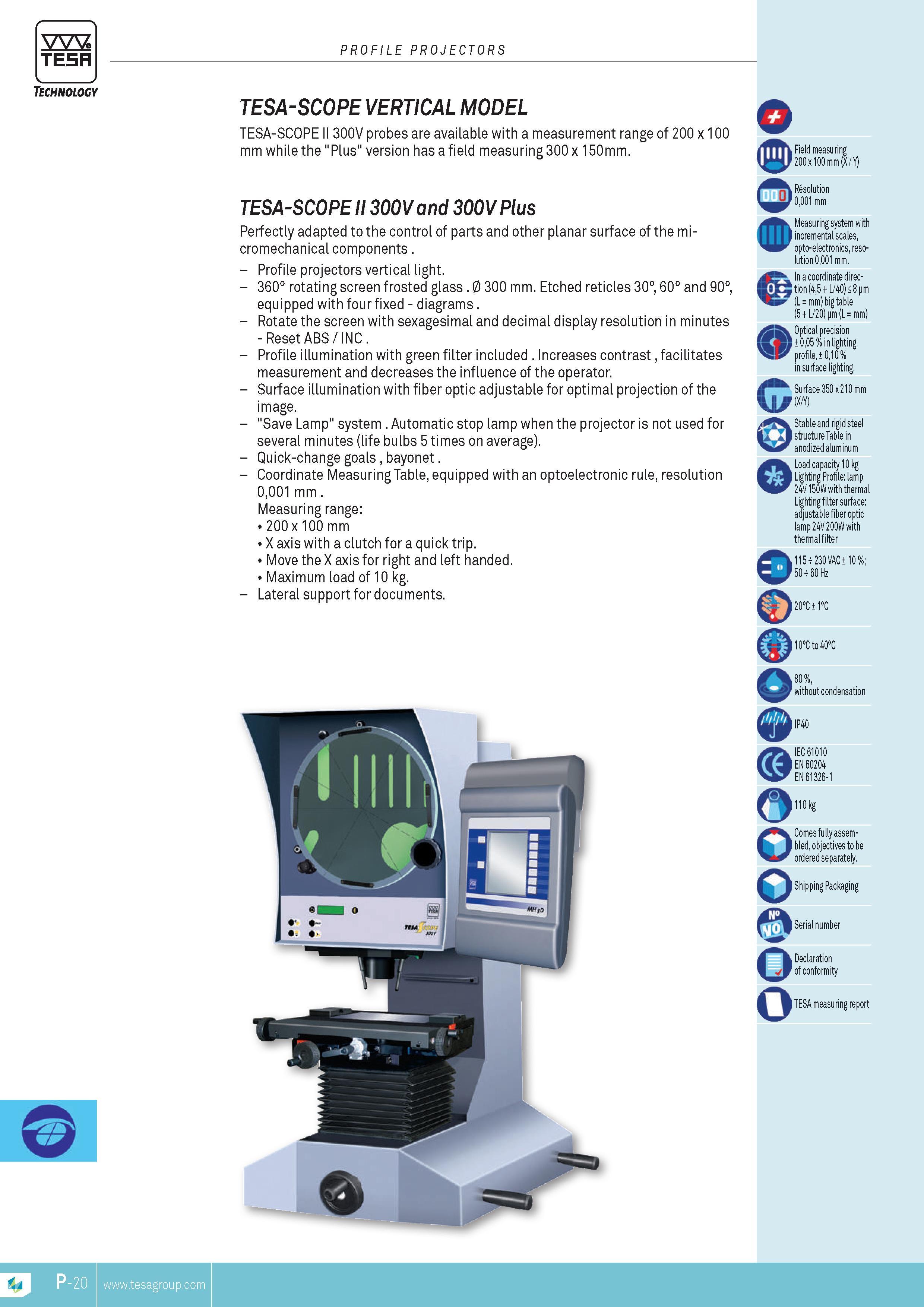

TESA PROFILE PROJECTORS Technology tesa-scope vertical model TESA-SCOPE II 300V probes are available with a MEASUREMENT range of 200 x 100 mm while the "Plus" version has a field measuring 300 x 150 mm. tesa-scope II300V and 300V plus Perfectly adapted to the control of parts and other planar surface of the micromechanical components . Profile projectors vertical light. 360 rotating screen frosted glass . 0 300 mm. Etched reticles 30 60 and 90 equipped with four fixed diagrams . Rotate the screen with sexagesimal and decimal display resolution in minutes Reset ABS INC . Profile illumination with green filter included . Increases contrast facilitates MEASUREMENT and decreases the influence of the operator. Surface illumination with fiber optic adjustable for optimal projection of the image. "Save Lamp" system . Automatic stop lamp when the projector is not used for several minutes (life bulbs 5 times on average). Quick-change goals bayonet . Coordinate Measuring Table equipped with an optoelectronic rule resolution 0001 mm . Measuring range 200 x 100 mm X axis with a clutch for a quick trip. Move the X axis for right and left handed. Maximum load of 10 kg. Lateral support for documents. Ql o G Field measuring 200 x 100 mm (X Y) Resolution 0001 mm Measuring system with incremental scales opto-electronics resolution 0001 mm. In a coordinate direction (45 + L 40) 8 pm (L mm) big table (5 + L 20) pm (L mm) Optical precision 005 % in lighting profile 010 % in surface lighting. Surface 350 x 210 mm (X Y) Stable and rigid steel structure Table in anodized aluminum Load capacity 10 kg Lighting Profile lamp 24V 150W with thermal Lighting filter surface adjustable fiber optic lamp 24V 200W with thermal filter 115 230 VAC 10 %; 50 60 Hz HI o 20C 1C 10C to 40C without condensation O IP40 IEC 61010 EN 60204 EN 61326-1 110 kg Comes fully assembled objectives to be ordered separately. Shipping Packaging Serial number Declaration of conformity TESA measuring report
