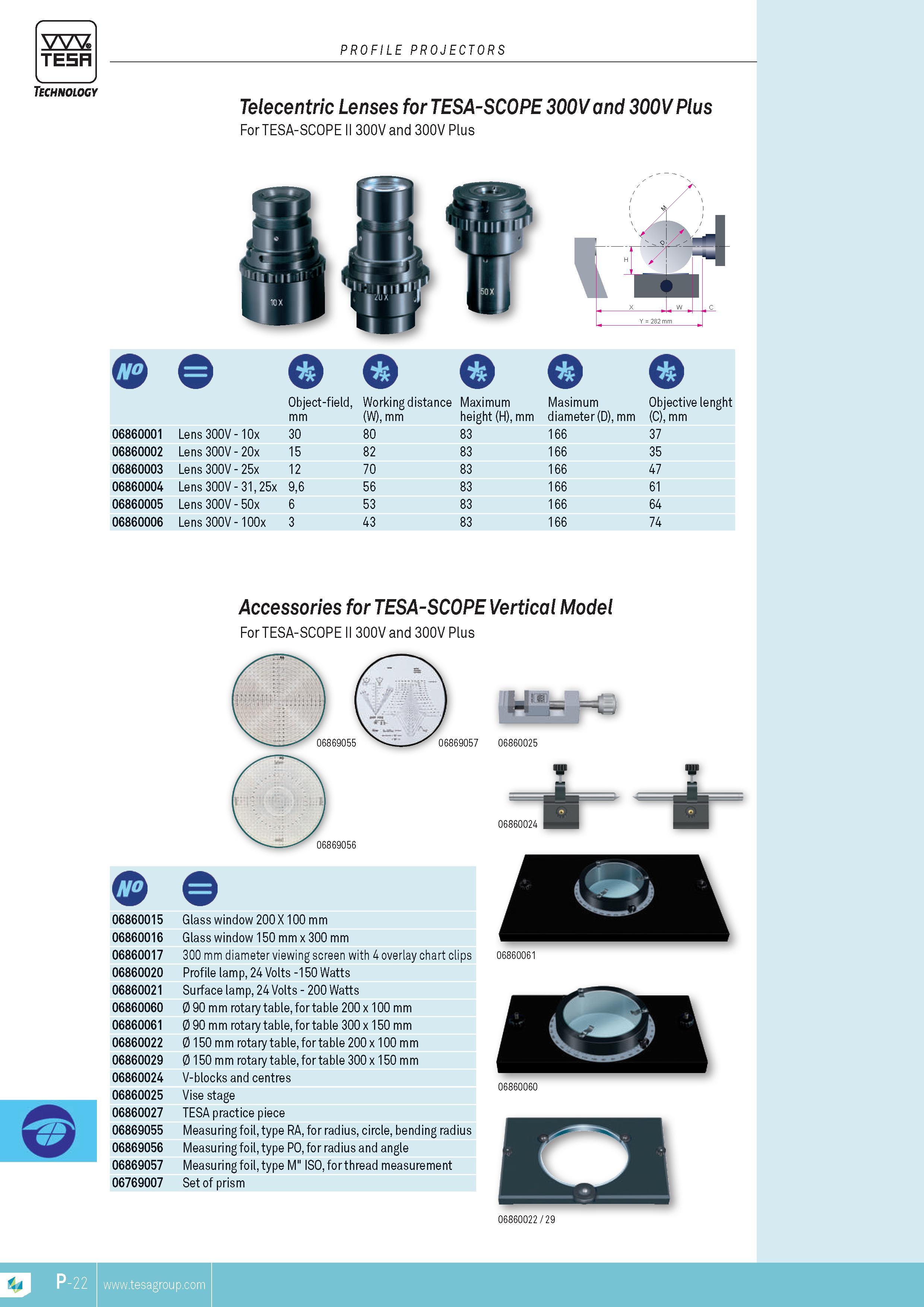

TESA Technology PROFILE PROJECTORS Telecentric Lenses for TESA-SOOPE 300Vand 300VPlus For TESA-SCOPE II 300V and 300V Plus Object-field Working distance Maximum Masimum Objective lenght mm (W) mm height (H) mm diameter (D) mm (C) mm 06860001 Lens 300V 10x 30 80 83 166 37 06860002 Lens 300V 20x 15 82 83 166 35 06860003 Lens 300V 25x 12 70 83 166 47 06860004 Lens 300V 31 25x 96 56 83 166 61 06860005 Lens 300V 50x 6 53 83 166 64 06860006 Lens 300V 100x 3 43 83 166 74 Accessories for TESA-SCOpE Vertical Model For TESA-SCOPE II 300V and 300V Plus o 06860015 Glass window 200 X 100 mm 06860016 Glass window 150 mm x 300 mm 06860017 300 mm diameter viewing screen with 4 overlay chart clips 06860020 Profile lamp 24 Volts -150 Watts 06860021 Surface lamp 24 Volts 200 Watts 06860060 0 90 mm rotary table for table 200 x 100 mm 06860061 0 90 mm rotary table for table 300 x 150 mm 06860022 0 150 mm rotary table for table 200 x 100 mm 06860029 0 150 mm rotary table for table 300 x 150 mm 06860024 V-blocks and centres 06860025 Vise stage 06860027 TESA practice piece 06869055 Measuring foil type RA for radius circle bending radius 06869056 Measuring foil type PO for radius and angle 06869057 Measuring foil type M" ISO for thread MEASUREMENT 06769007 Set of prism 06860025 ik A 06860024 06860061 06860060 06860022 29 TESA 06869055 06869057 06869056
