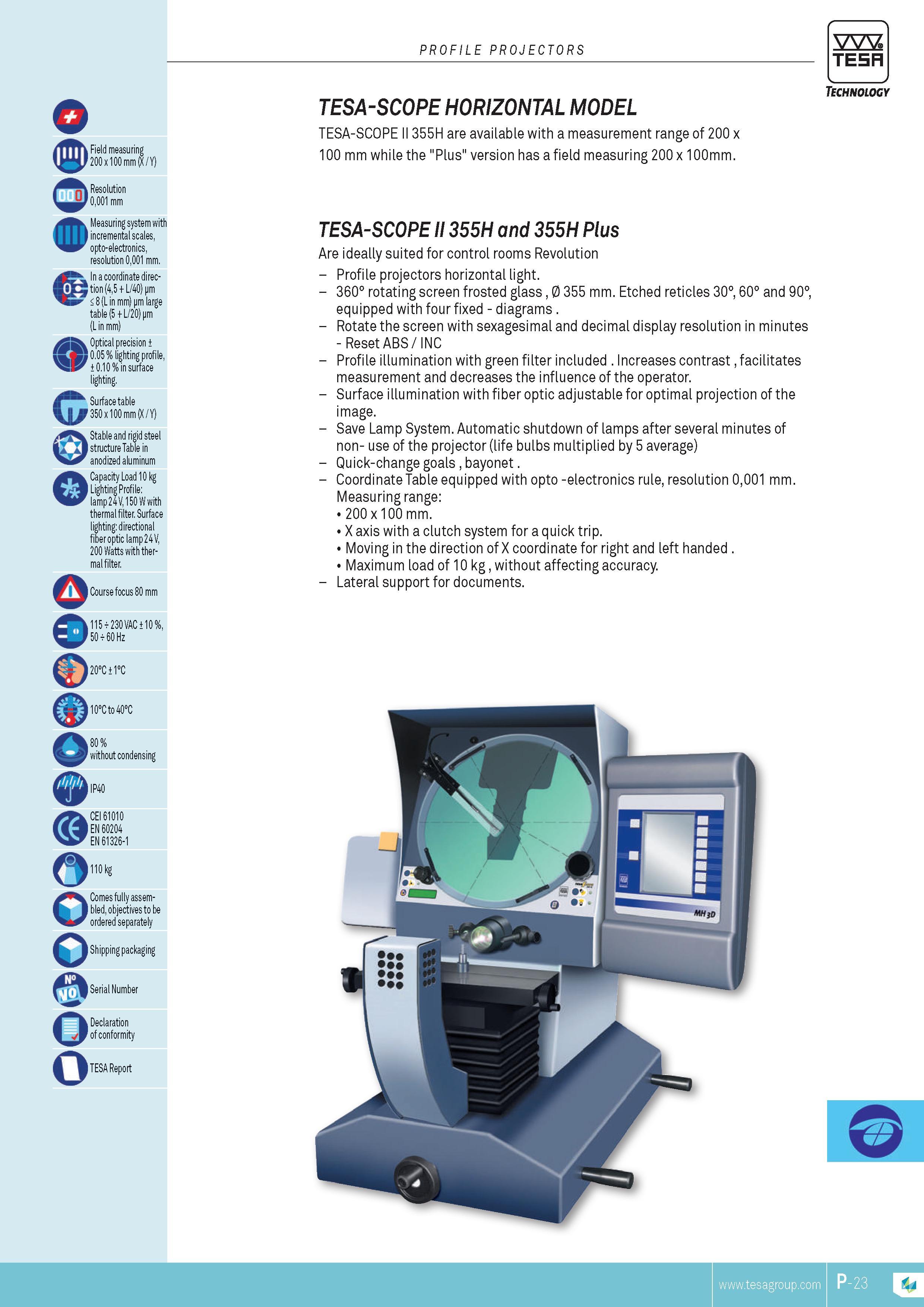

PROFILE PROJECTORS TESA (Q) Field measuring 200 x 100 mm (X Y) Resolution 0001 mm Measuring system with incremental scales opto-electronics resolution 0001 mm. Bin a coordinate direction (45 + L 40) pm 8 (L in mm) pm large table (5 + L 20) pm (L in mm) Optical precision 0.10 % in surface G IP & Surface table 350 x 100 mm (X Y) Stable and rigid steel structure Table in anodized aluminum Capacity Load 10 kg Lighting Profile lamp 24V 150 W with thermal filter. Surface lighting directional fiber optic lamp 24 V 200 Watts with thermal filter. Course focus 80 mm 115 t 230 VAC 10 % 50 t 60 Hz 20C1C 10Cto 40C 80 % without condensing IP40 CEI 61010 EN60204 EN 61326-1 o 110 kg Comes fully assembled objectives to be ordered separately Shipping packaging Serial Number Declaration of conformity TESA Report tesa-scope horizontal model TESA-SCOPE II 355H are available with a MEASUREMENT range of 200 x 100 mm while the "Plus" version has a field measuring 200 x 100mm. tesa-scope II355H and 355H Plus Are ideally suited for control rooms Revolution Profile projectors horizontal light. 360 rotating screen frosted glass 0 355 mm. Etched reticles 30 60 and 90 equipped with four fixed diagrams . Rotate the screen with sexagesimal and decimal display resolution in minutes Reset ABS INC Profile illumination with green filter included . Increases contrast facilitates MEASUREMENT and decreases the influence of the operator. Surface illumination with fiber optic adjustable for optimal projection of the image. Save Lamp System. Automatic shutdown of lamps after several minutes of non- use of the projector (life bulbs multiplied by 5 average) Quick-change goals bayonet . Coordinate Table equipped with opto -electronics rule resolution 0001 mm. Measuring range 200 x 100 mm. X axis with a clutch system for a quick trip. Moving in the direction of X coordinate for right and left handed . Maximum load of 10 kg without affecting accuracy. Lateral support for documents. Technology
