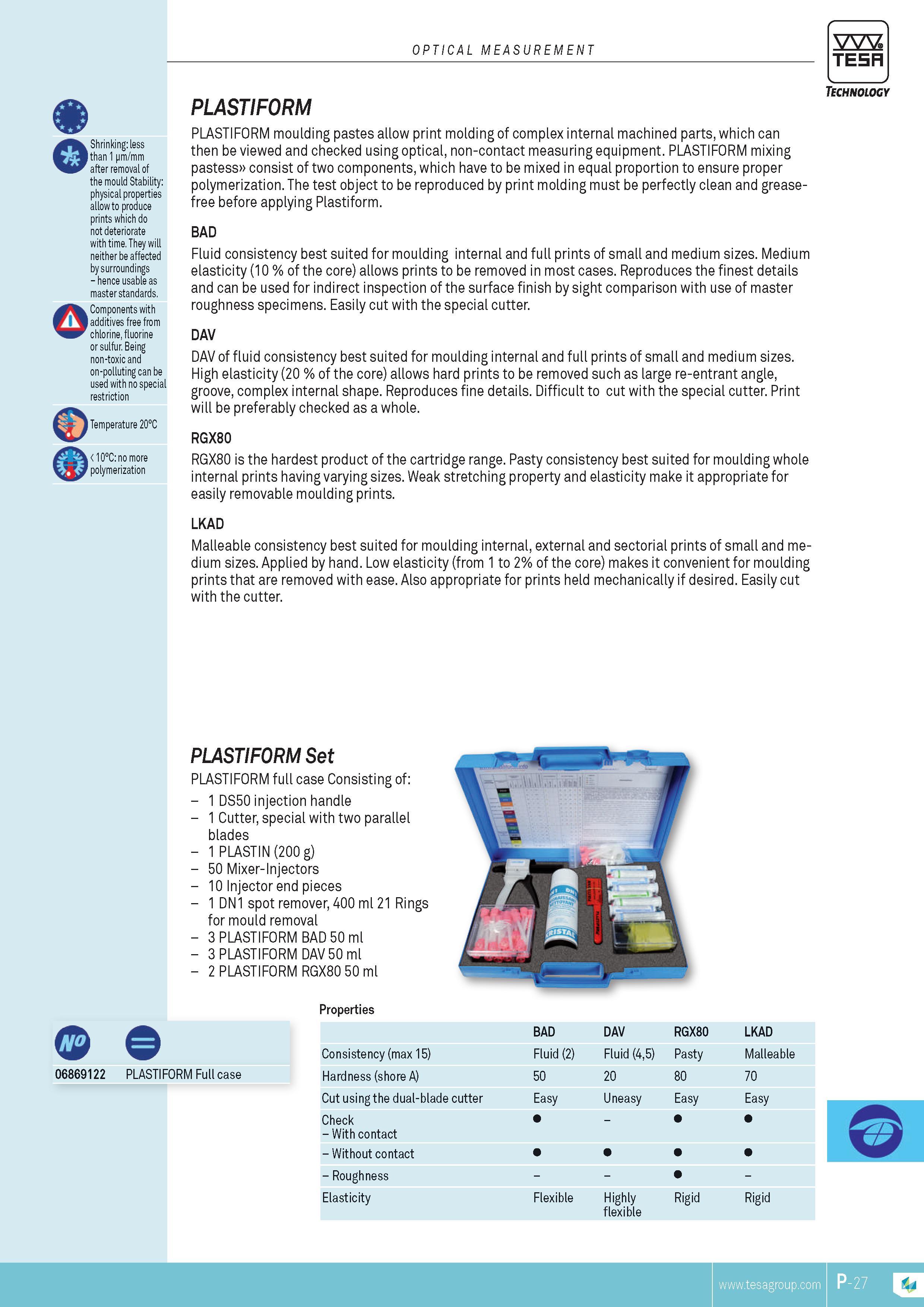

OPTICAL MEASUREMENT TESA Q o Shrinking less than 1 pm mm after removal of the mould Stability physical properties allow to produce prints which do not deteriorate with time. They will neither be affected by surroundings hence usable as master standards. Components with additives free from chlorine fluorine or sulfur. Being non-toxic and on-polluting can be used with no special restriction Temperature 20C 10C no more polymerization PLASTIFORM PLASTIFORM moulding pastes allow print molding of complex internal machined parts which can then be viewed and checked using optical non-contact measuring equipment. PLASTIFORM mixing pastess consist of two components which have to be mixed in equal proportion to ensure proper polymerization. The test object to be reproduced by print molding must be perfectly clean and grease-free before applying Plastiform. BAD Fluid consistency best suited for moulding internal and full prints of small and medium sizes. Medium elasticity (10 % of the core) allows prints to be removed in most cases. Reproduces the finest details and can be used for indirect inspection of the surface finish by sight comparison with use of master roughness specimens. Easily cut with the special cutter. DAV DAV of fluid consistency best suited for moulding internal and full prints of small and medium sizes. High elasticity (20 % of the core) allows hard prints to be removed such as large re-entrant angle groove complex internal shape. Reproduces fine details. Difficult to cut with the special cutter. Print will be preferably checked as a whole. RGX80 RGX80 is the hardest product of the cartridge range. Pasty consistency best suited for moulding whole internal prints having varying sizes. Weak stretching property and elasticity make it appropriate for easily removable moulding prints. LKAD Malleable consistency best suited for moulding internal external and sectorial prints of small and medium sizes. Applied by hand. Low elasticity (from 1 to 2% of the core) makes it convenient for moulding prints that are removed with ease. Also appropriate for prints held mechanically if desired. Easily cut with the cutter. Technology PLASTIFORM Set PLASTIFORM full case Consisting of 1 DS50 injection handle 1 Cutter special with two parallel blades 1 PLASTIN (200 g) 50 Mixer-Injectors 10 Injector end pieces 1 DN1 spot remover 400 ml 21 Rings for mould removal 3 PLASTIFORM BAD 50 ml 3 PLASTIFORM DAV 50 ml 2 PLASTIFORM RGX80 50 ml Properties 06869122 PLASTIFORM Full case BAD DAV RGX80 LKAD Consistency (max 15) Fluid (2) Fluid (45) Pasty Malleable Hardness (shore A) 50 20 80 70 Cut using the dual-blade cutter Easy Uneasy Easy Easy Check With contact Without contact Roughness Elasticity Flexible Highly flexible Rigid Rigid TESA
