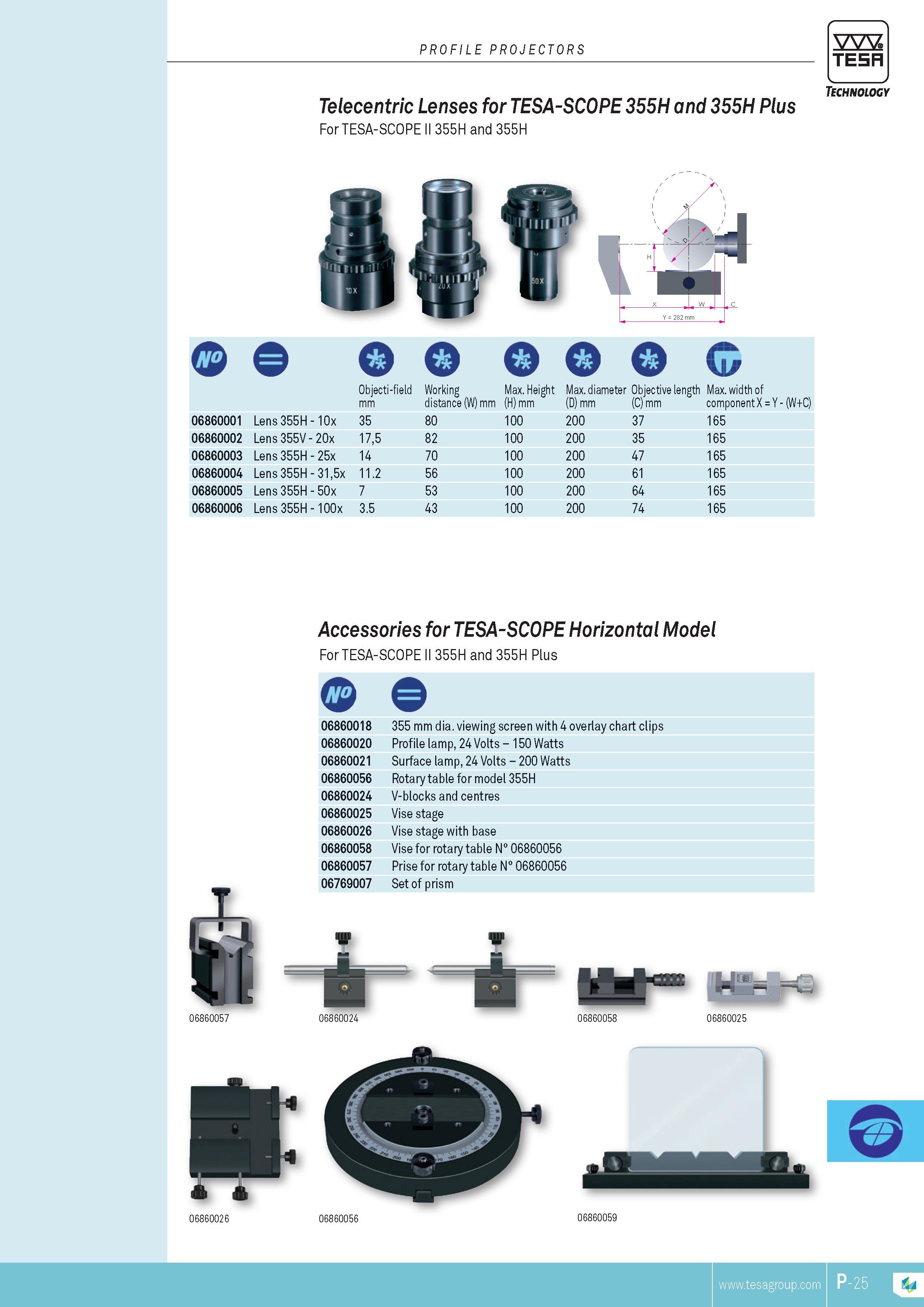

PROFILE PROJECTORS TESA Technology Telecentric Lenses for TEsA-sCOpE 355H and 355H plus For TESA-SCOPE II 355H and 355H Q Q Q Q Q Q Objecti-field Working Max. Height Max. diameter Objective length Max. width of mm distance (W) mm (H) mm (D) mm (C) mm component X Y (W+C) 06860001 Lens 355H 10x 35 80 100 200 37 165 06860002 Lens 355V 20x 175 82 100 200 35 165 06860003 Lens 355H 25x 14 70 100 200 47 165 06860004 Lens 355H 315x 11.2 56 100 200 61 165 06860005 Lens 355H 50x 7 53 100 200 64 165 06860006 Lens 355H 100x 3.5 43 100 200 74 165 Accessories for TEsA-sCOpE horizontal Model For TESA-SCOPE II 355H and 355H Plus 06860018 355 mm dia. viewing screen with 4 overlay chart clips 06860020 Profile lamp 24 Volts 150 Watts 06860021 Surface lamp 24 Volts 200 Watts 06860056 Rotary table for model 355H 06860024 V-blocks and centres 06860025 Vise stage 06860026 Vise stage with base 06860058 Vise for rotary table N 06860056 06860057 Prise for rotary table N 06860056 06769007 Set of prism 06860057 06860024 06860058 06860025 06860026 06860056 06860059 TESA
