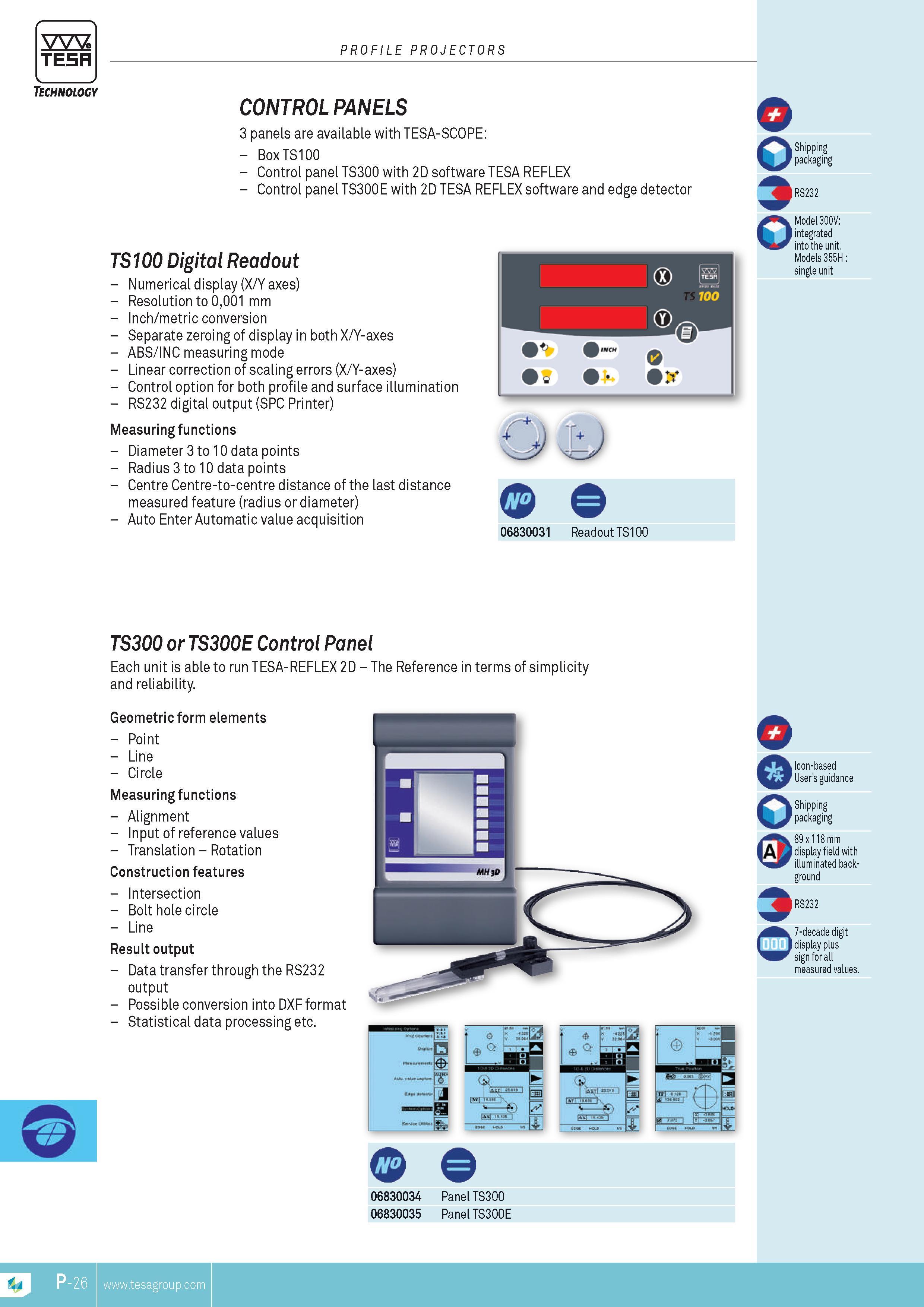

TESA Technology PROFILE PROJECTORS control panels 3 panels are available with TESA-SCOPE BoxTS100 Control panel TS300 with 2D software TESA REFLEX Control panel TS300E with 2D TESA REFLEX software and edge detector TS100 Digital Readout Numerical display (X Y axes) Resolution to 0001 mm Inch metric conversion Separate zeroing of display in both X Y-axes ABS INC measuring mode Linear correction of scaling errors (X Y-axes) Control option for both profile and surface illumination RS232 digital output (SPC Printer) Measuring functions Diameter 3 to 10 data points Radius 3 to 10 data points Centre Centre-to-centre distance of the last distance measured feature (radius or diameter) Auto Enter Automatic value acquisition Shipping RS232 Model 300V integrated into the unit. Models 355H single unit 06830031 ReadoutTS100 TS300 or TS300E Control Panel Each unit is able to run TESA-REFLEX 2D The Reference in terms of simplicity and reliability. Geometric form elements Point Line Circle Measuring functions Alignment Input of reference values Translation Rotation Construction features Intersection Bolt hole circle Line Result output Data transfer through the RS232 output Possible conversion into DXF format Statistical data processing etc. Icon-based User's guidance Shipping 89 x 118 mm A display field with illuminated background RS232 7-decade digit display plus sign for all measured values. 06830034 Panel TS300 06830035 Panel TS300E TESA
