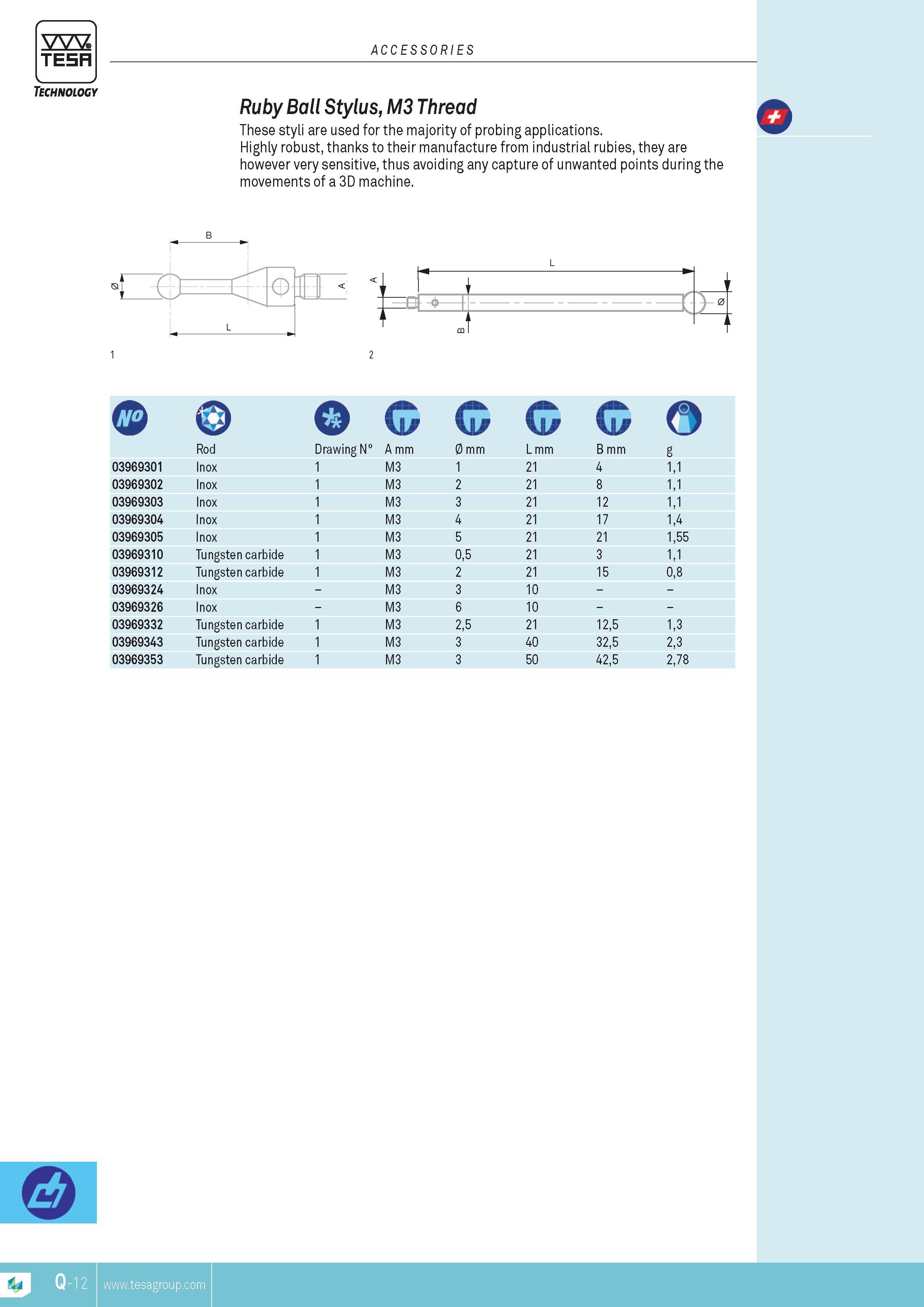

TESA Technology ACCESSORIES Ruby Ball stylus M3 Thread These styli are used for the majority of probing applications. Highly robust thanks to their manufacture from industrial rubies they are however very sensitive thus avoiding any capture of unwanted points during the movements of a 3D machine. 2 Q G G G G Rod Drawing N A mm 0 mm L mm B mm g 03969301 Inox 1 M3 1 21 4 11 03969302 Inox 1 M3 2 21 8 11 03969303 Inox 1 M3 3 21 12 11 03969304 Inox 1 M3 4 21 17 14 03969305 Inox 1 M3 5 21 21 155 03969310 Tungsten carbide 1 M3 05 21 3 11 03969312 Tungsten carbide 1 M3 2 21 15 08 03969324 Inox M3 3 10 03969326 Inox M3 6 10 03969332 Tungsten carbide 1 M3 25 21 125 13 03969343 Tungsten carbide 1 M3 3 40 325 23 03969353 Tungsten carbide 1 M3 3 50 425 278 Q-12 TESA
