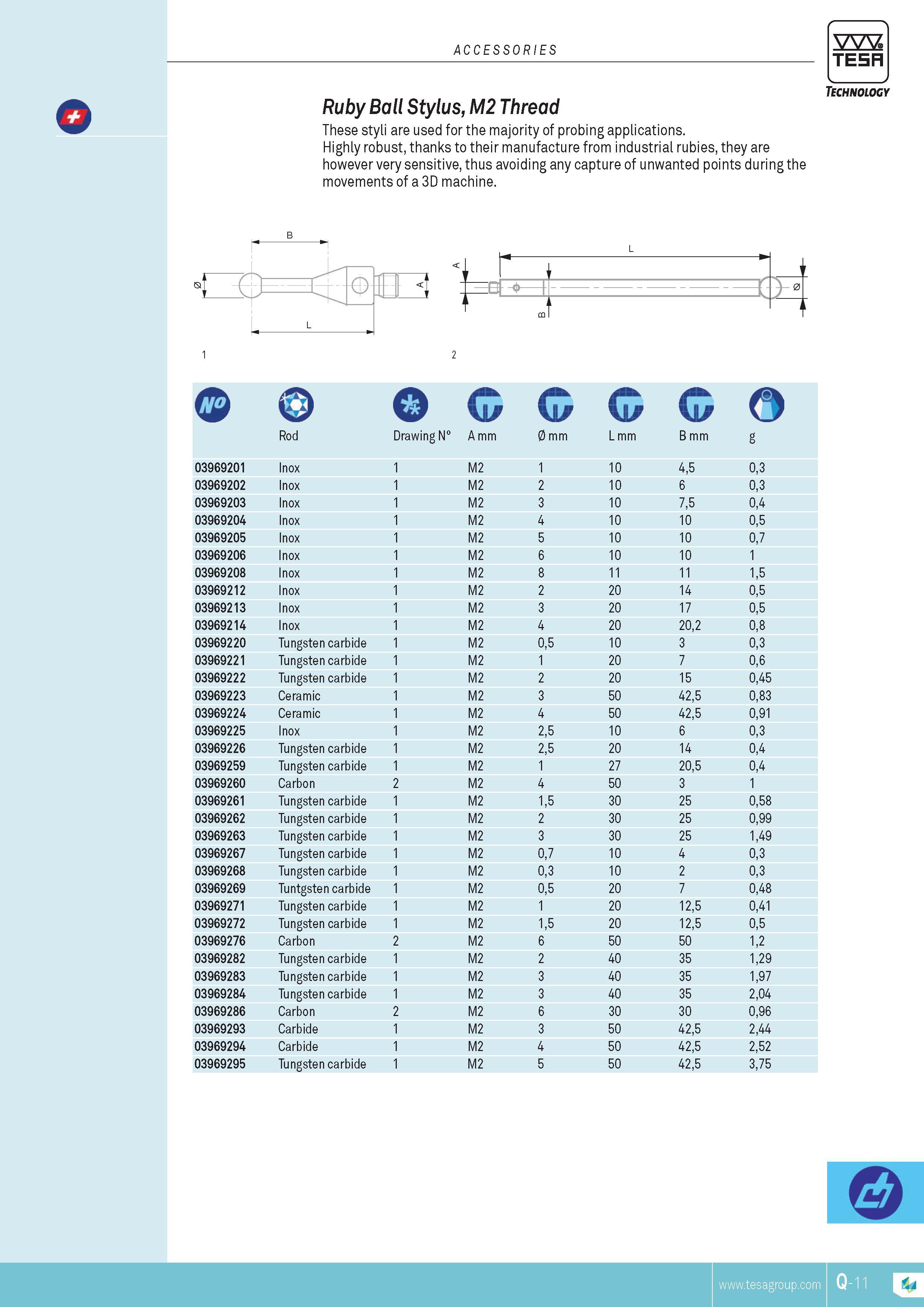

ACCESSORIES TESA Technology ruby Ball stylus M2 Thread These styli are used for the majority of probing applications. Highly robust thanks to their manufacture from industrial rubies they are however very sensitive thus avoiding any capture of unwanted points during the movements of a 3D machine. 3 L 2 G G G G Rod Drawing N A mm 0 mm L mm B mm g 03969201 Inox 1 M2 1 10 45 03 03969202 Inox 1 M2 2 10 6 03 03969203 Inox 1 M2 3 10 75 04 03969204 Inox 1 M2 4 10 10 05 03969205 Inox 1 M2 5 10 10 07 03969206 Inox 1 M2 6 10 10 1 03969208 Inox 1 M2 8 11 11 15 03969212 Inox 1 M2 2 20 14 05 03969213 Inox 1 M2 3 20 17 05 03969214 Inox 1 M2 4 20 202 08 03969220 Tungsten carbide 1 M2 05 10 3 03 03969221 Tungsten carbide 1 M2 1 20 7 06 03969222 Tungsten carbide 1 M2 2 20 15 045 03969223 Ceramic 1 M2 3 50 425 083 03969224 Ceramic 1 M2 4 50 425 091 03969225 Inox 1 M2 25 10 6 03 03969226 Tungsten carbide 1 M2 25 20 14 04 03969259 Tungsten carbide 1 M2 1 27 205 04 03969260 Carbon 2 M2 4 50 3 1 03969261 Tungsten carbide 1 M2 15 30 25 058 03969262 Tungsten carbide 1 M2 2 30 25 099 03969263 Tungsten carbide 1 M2 3 30 25 149 03969267 Tungsten carbide 1 M2 07 10 4 03 03969268 Tungsten carbide 1 M2 03 10 2 03 03969269 Tuntgsten carbide 1 M2 05 20 7 048 03969271 Tungsten carbide 1 M2 1 20 125 041 03969272 Tungsten carbide 1 M2 15 20 125 05 03969276 Carbon 2 M2 6 50 50 12 03969282 Tungsten carbide 1 M2 2 40 35 129 03969283 Tungsten carbide 1 M2 3 40 35 197 03969284 Tungsten carbide 1 M2 3 40 35 204 03969286 Carbon 2 M2 6 30 30 096 03969293 Carbide 1 M2 3 50 425 244 03969294 Carbide 1 M2 4 50 425 252 03969295 Tungsten carbide 1 M2 5 50 425 375 TESA Q-
