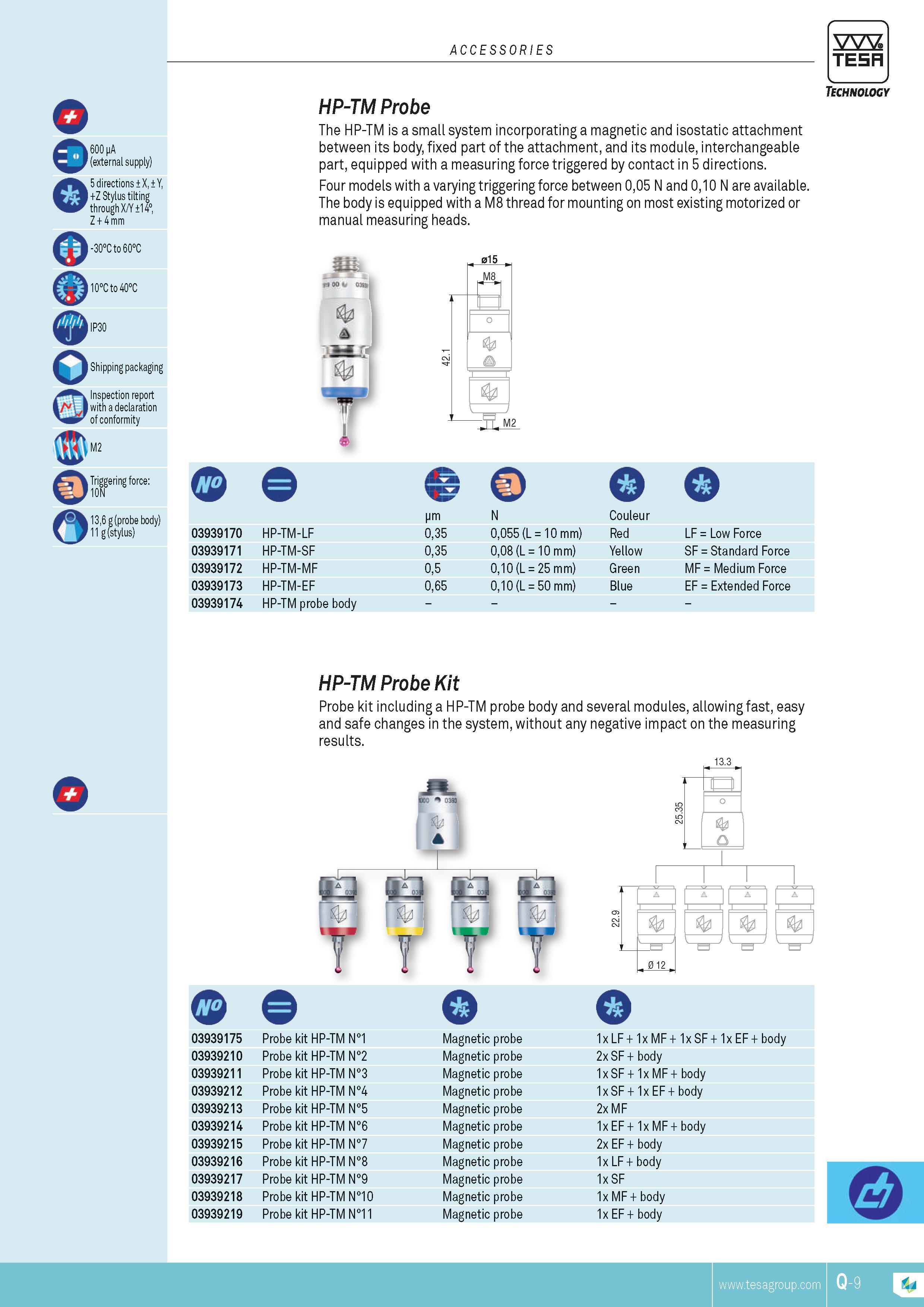

ACCESSORIES TESA 600 pA (external supply) 5 directions X Y +Z Stylus tilting through X Y 14 Z + 4 mm -30C to 60C 10C to 40C IP30 Shipping packaging Inspection report with a declaration of conformity M2 136 g (probe body) 11 g (stylus) HP-TM Probe The HP-TM is a small system incorporating a magnetic and isostatic attachment between its body fixed part of the attachment and its module interchangeable part equipped with a measuring force triggered by contact in 5 directions. Four models with a varying triggering force between 005 N and 010 N are available. The body is equipped with a M8 thread for mounting on most existing motorized or manual measuring heads. Technology 03939170 HP-TM-LF 03939171 HP-TM-SF 03939172 HP-TM-MF 03939173 HP-TM-EF 03939174 HP-TM probe body pm 035 035 05 065 o N 0055 (L 10 mm) 008 (L 10 mm) 010 (L 25 mm) 010 (L 50 mm) Couleur Red Yellow Green Blue LF Low Force SF Standard Force MF Medium Force EF Extended Force HP-TM Probe Kit Probe kit including a HP-TM probe body and several modules allowing fast easy and safe changes in the system without any negative impact on the measuring results. 03939175 03939210 03939211 03939212 03939213 03939214 03939215 03939216 03939217 03939218 03939219 Probe kit Probe kit Probe kit Probe kit Probe kit Probe kit Probe kit Probe kit Probe kit Probe kit Probe kit HP-TM N1 HP-TM N2 HP-TM N3 HP-TM N4 HP-TM N5 HP-TM N6 HP-TM N7 HP-TM N8 HP-TM N9 HP-TM N10 HP-TM N11 Q Magnetic probe Magnetic probe Magnetic probe Magnetic probe Magnetic probe Magnetic probe Magnetic probe Magnetic probe Magnetic probe Magnetic probe Magnetic probe 13.3 1x LF + 1x MF + 1x SF + 1x EF + body 2xSF + body 1x SF + 1x MF + body 1x SF + 1x EF + body 2x MF 1x EF + 1x MF + body 2x EF + body 1x LF + body 1x SF 1x MF + body 1x EF + body TESA
