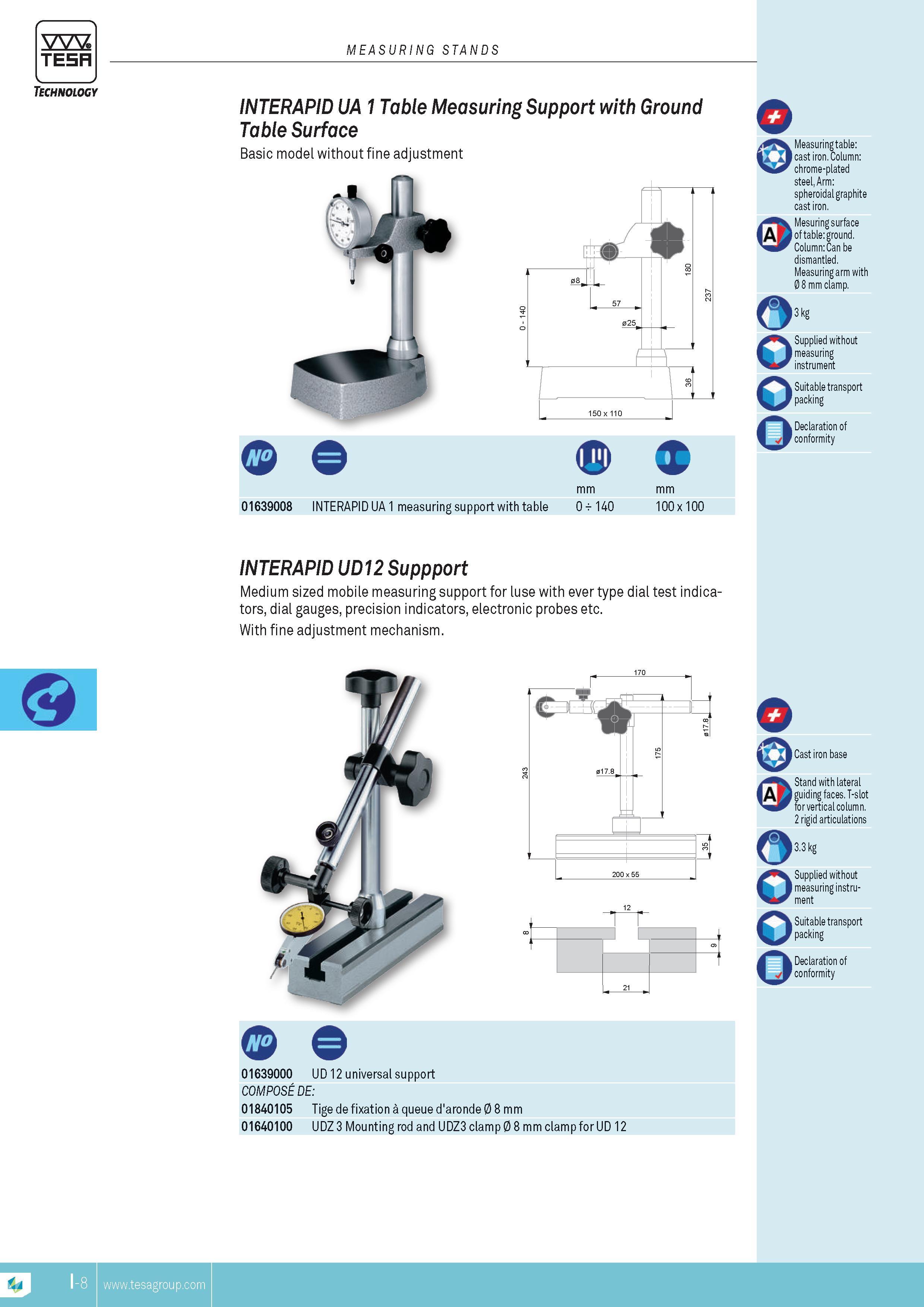

MEASURING STANDS TESA INTERAPID UA Table Measuring Support with Ground Table Surface Basic model without fine adjustment x 01639008 INTERAPID UA 1 mea

MEASURING STANDS TESA INTERAPID UA Table Measuring Support with Ground Table Surface Basic model without fine adjustment x 01639008 INTERAPID UA 1 measuring support with table 0 t 140 mm 100x 100 Measuring table cast iron. Column chrome-plated steel Arm spheroidal graphite cast iron. Mesuring surface A of table ground. Column Can be dismantled. Measuring arm with 0 8 mm clamp. 3kg o Supplied without measuring instrument Suitable transport packing Declaration of W conformity INTERAPID UD12 Suppport Medium sized mobile measuring support for luse with ever type dial test indicators dial gauges precision indicators electronic probes etc. With fine adjustment mechanism. O 01639000 UD 12 universal support COMPOSE DE 01840105 Tige de fixation a queue d'aronde 0 8 mm 01640100 UDZ 3 Mounting rod and UDZ3 clamp 0 8 mm clamp for UD 12 Cast iron base Stand with lateral A guiding faces. T-slot for vertical column. 2 rigid articulations 13.3 kg Supplied without measuring instrument Suitable transport packing Declaration of conformity I-8 TESA mm
