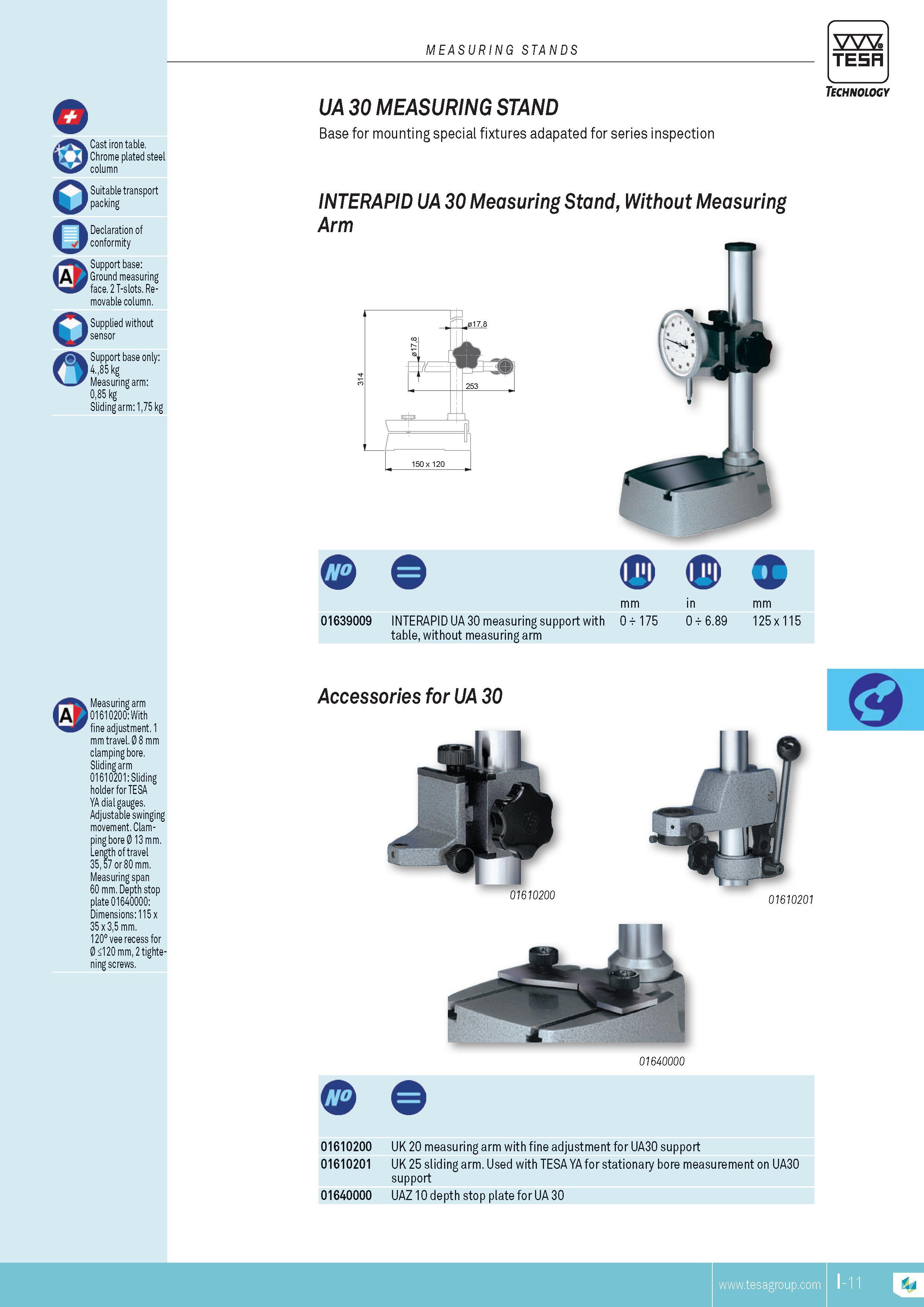

TESA UA 30 MEASURING STAND Base for mounting special fixtures adapated for series inspection INTERAPID UA 30 Measuring Stand Without Measuring Arm Tec

TESA UA 30 MEASURING STAND Base for mounting special fixtures adapated for series inspection INTERAPID UA 30 Measuring Stand Without Measuring Arm Technology mm 01639009 INTERAPID UA 30 measuring support with 0 t 175 table without measuring arm Accessories for UA 30 X in mm 0 t 6.89 125 x 115 01610200 01610201 01640000 O 01610200 UK 20 measuring arm with fine adjustment for UA30 support 01610201 UK 25 sliding arm. Used with TESA YA for stationary bore MEASUREMENT on UA30 support 01640000 UAZ 10 depth stop plate for UA 30 TESA I- Cast iron table. Chrome plated steel column Suitable transport packing Declaration of conformity Support base Ground measuring face. 2 T-slots. Removable column. Supplied without sensor Support base only 4.85 kg Measuring arm 085 kg Sliding arm 175 kg Measuring arm 01610200 With fine adjustment. 1 mm travel. 0 8 mm clamping bore. Sliding arm 01610201 Sliding holder for TESA YA dial gauges. Adjustable swinging movement. Clamping bore 0 13 mm. Length of travel 35 57 or 80 mm. Measuring span 60 mm. Depth stop plate 01640000 Dimensions 115 x 35 x 35 mm. 120veerecess for 0 120 mm 2 tightening screws. measuring stands
