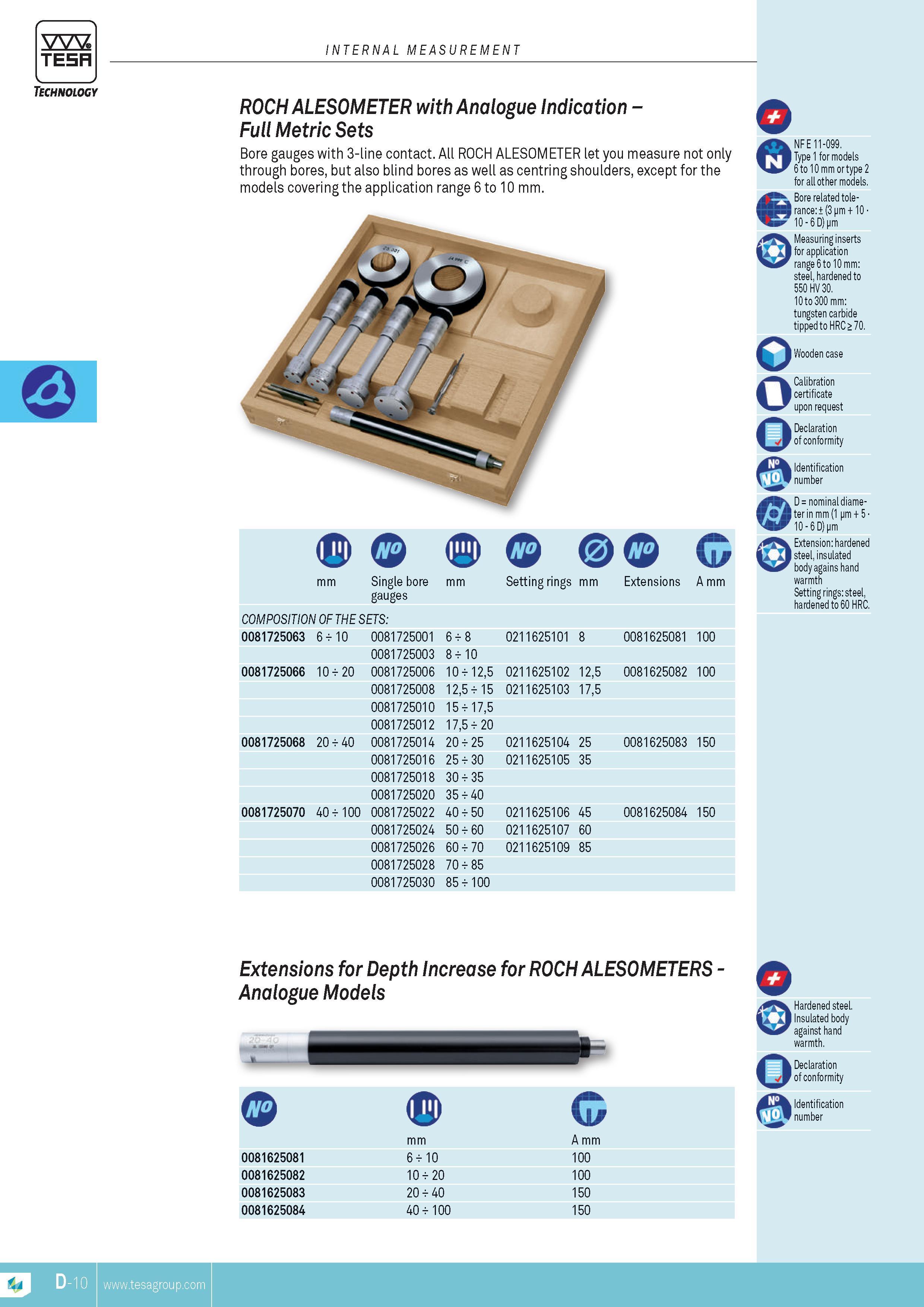

TESA INTERNAL MEASUREMENT ROCH ALESOMETER with Analogue Indication Full Metric Sets Bore gauges with 3-line contact. AH ROCH ALESOMETER let you measure not only through bores but also blind bores as well as centring shoulders except for the models covering the application range 6 to 10 mm. mm Single bore gauges mm Setting rings mm Extensions A mm COMPOSITION OF THE SETS 0081725063 6 10 0081725001 6 8 0211625101 8 0081625081 100 0081725003 8 10 0081725066 10 20 0081725006 10 125 0211625102 125 0081625082 100 0081725008 125 15 0211625103 175 0081725010 15 175 0081725012 175 20 0081725068 20 40 0081725014 20 25 0211625104 25 0081625083 150 0081725016 25 30 0211625105 35 0081725018 30 35 0081725020 35 40 0081725070 40 100 0081725022 40 50 0211625106 45 0081625084 150 0081725024 50 60 0211625107 60 0081725026 60 70 0211625109 85 0081725028 70 85 0081725030 85 100 o 0 NF E 11-099. Type 1 for models 6 to 10 mm or type 2 for all other models. Bore related tolerance (3 pm + 10 10 6 D) pm Measuring inserts for application range 6 to 10 mm steel hardened to 550 HV 30. 10 to 300 mm tungsten carbide tipped to HRC 70. Wooden case Calibration certificate upon request Declaration W of conformity Identification VJUif number D nominal diame- a ter in mm (1 pm + 5 10 6 D) pm Extension hardened steel insulated body agains hand warmth Setting rings steel hardened to 60 HRC. Extensions for Depth Increase for ROCH ALESOMETERS -Analogue Models 0 c mm A mm 0081625081 6 10 100 0081625082 10 20 100 0081625083 20 40 150 0081625084 40 100 150 Hardened steel. Insulated body against hand warmth. Declaration of conformity Identification I Ml number TESA Technology
