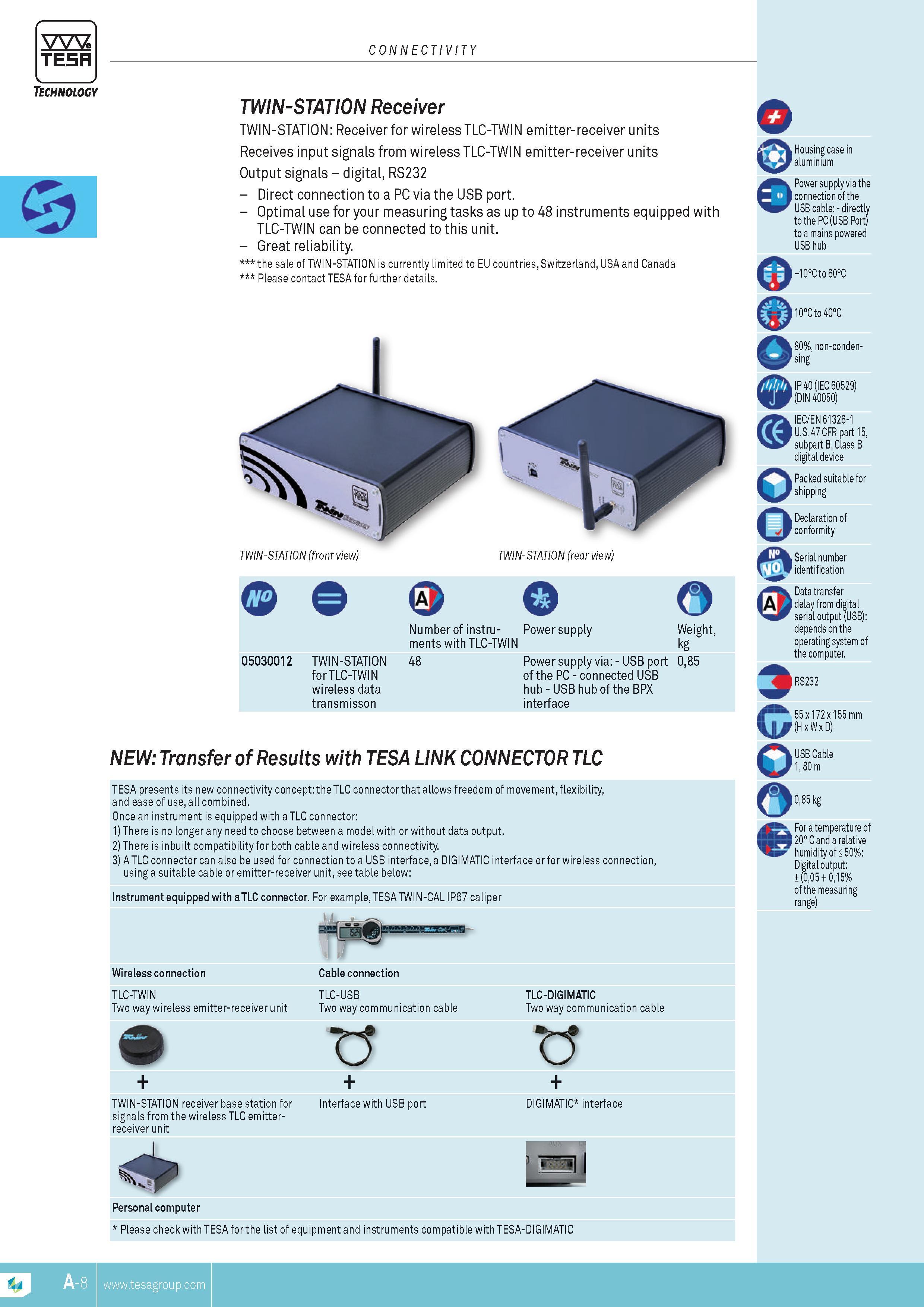

Optimal use for your measuring tasks as up to 48 instruments equipped with TLC-TWIN can be connected to this unit. Great reliability. the sale of TWIN-STATION is currently limited to EU countries Switzerland USA and Canada o Housing case in aluminium Power supply via the connection of the USB cable directly to the PC (USB Port) to a mains powered USB hub -10Cto60C 10Cto 40C TwIN-STATIQN (front view) TwIN-STATIQN (rear view) Number of instru- Power supply Weight ments with TLC-TWIN kg 05030012 TWIN-STATION 48 Power supply via USB port 085 for TLC-TWIN of the PC connected USB wireless data hub USB hub of the BPX transmisson interface NEW Transfer of Results with TESA LINK CONNECTOR TLC TESA presents its new connectivity concept the TLC connector that allows freedom of movement flexibility and ease of use all combined. Once an instrument is equipped with a TLC connector 1) There is no longer any need to choose between a model with or without data output. 2) There is inbuilt compatibility for both cable and wireless connectivity. 3) A TLC connector can also be used for connection to a USB interface a DIGIMATIC interface or for wireless connection using a suitable cable or emitter-receiver unit see table below Instrument equipped with a TLC connector. For example TESA TWIN-CAL IP67 caliper o 80% non-condensing IP 40 (IEC 60529) IEC EN 61326-1 U.S. 47 CFR part 15 subpart B Class B digital device Packed suitable for shipping Declaration of W conformity Serial number yL'jW identification Data transfer A delay from digital serial output (USB) depends on the operating system of the computer. G RS232 55 x 172 x 155 mm (H x W x D) USB Cable 1 80 m 085 kg For a temperature of 20 C and a relative humidity of 50% Digital output (005 + 015% of the measuring range) Wireless connection TLC-TWIN Two way wireless emitter-receiver unit + TWIN-STATION receiver base station for signals from the wireless TLC emitter-receiver unit Cable connection TLC-USB Two way communication cable + Interface with USB port TLC-DIGIMATIC Two way communication cable + DIGIMATIC interface Personal computer Please check with TESA for the list of equipment and instruments compatible with TESA-DIGIMATIC -8 TESA 'TESA connectivity Technology TWIN-STATION Receiver TWIN-STATION Receiver for wireless TLC-TWIN emitter-receiver units Receives input signals from wireless TLC-TWIN emitter-receiver units Output signals digital RS232 Direct connection to a PC via the USB port.
