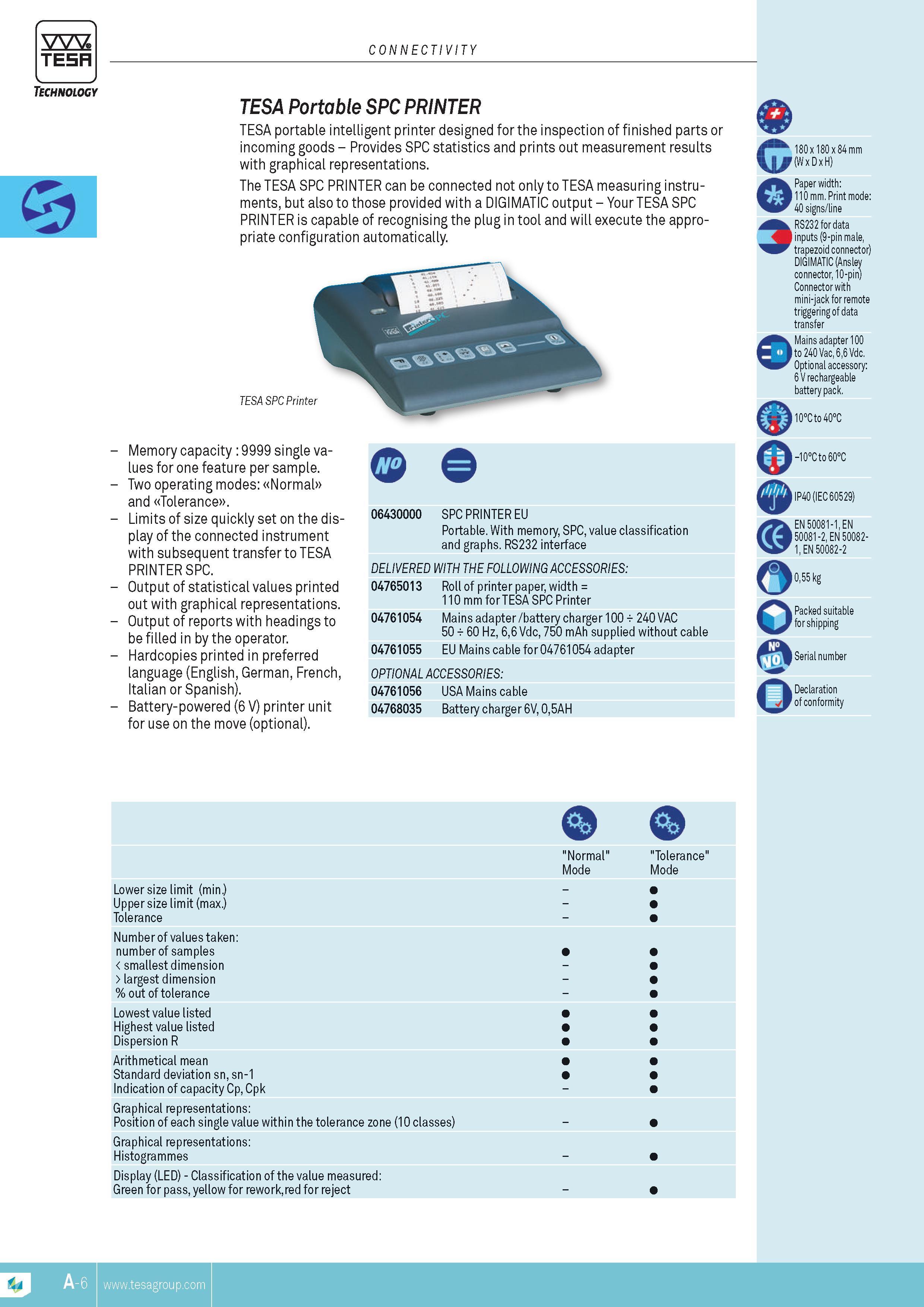

Portable SPC PRINTER TESA portable intelligent printer designed for the inspection of finished parts or incoming goods Provides SPC statistics and prints out MEASUREMENT results with graphical representations. The TESA SPC PRINTER can be connected not only to TESA measuring instruments but also to those provided with a DIGIMATIC output Your TESA SPC PRINTER is capable of recognising the plug in tool and will execute the appropriate configuration automatically. TESA SPC Printer Memory capacity 9999 single values for one feature per sample. Two operating modes Normal and Tolerance . Limits of size quickly set on the display of the connected instrument with subsequent transfer to TESA PRINTER SPC. Output of statistical values printed out with graphical representations. Output of reports with headings to be filled in by the operator. Hardcopies printed in preferred language (English German French Italian or Spanish). Battery-powered (6 V) printer unit for use on the move (optional). G Q 3 180 x 180 x 84 mm (W x D x H) Paper width 110 mm. Print mode 40 signs line RS232 for data inputs (9-pin male trapezoid connector) DIGIMATIC (Ansley connector 10-pin) Connector with mini-jack for remote O 06430000 SPC PRINTER EU Portable. With memory SPC value classification and graphs. RS232 interface DELIVERED WITH THE FOLLOWING ACCESSORIES 04765013 Roll of printer paper width 110 mm for TESA SPC Printer 04761054 Mains adapter battery charger 100 t 240 VAC 50 t 60 Hz 66 Vdc 750 mAh supplied without cable 04761055 EU Mains cable for 04761054 adapter optional accessories 04761056 USA Mains cable 04768035 Battery charger 6V 05AH o transfer Mains adapter 100 to 240 Vac 66 Vdc. Optional accessory 6 V rechargeable battery pack. 10Cto 40C -10Cto60C IP40 (IEC 60529) EN 50081-1 EN 50081-2 EN 500821 EN 50082-2 055 kg Packed suitable for shipping Serial number Declaration of conformity "Normal" "Tolerance" Mode Mode Lower size limit (min.) Upper size limit (max.) Tolerance Number of values taken number of samples smallest dimension largest dimension % out of tolerance Lowest value listed Highest value listed Dispersion R Arithmetical mean Standard deviation sn sn-1 Indication of capacity Cp Cpk Graphical representations Position of each single value within the tolerance zone (10 classes) Graphical representations Histogrammes Display (LED) Classification of the value measured Green for pass yellow for reworkred for reject - 'TESA CONNECTIVITY Technology TESA
