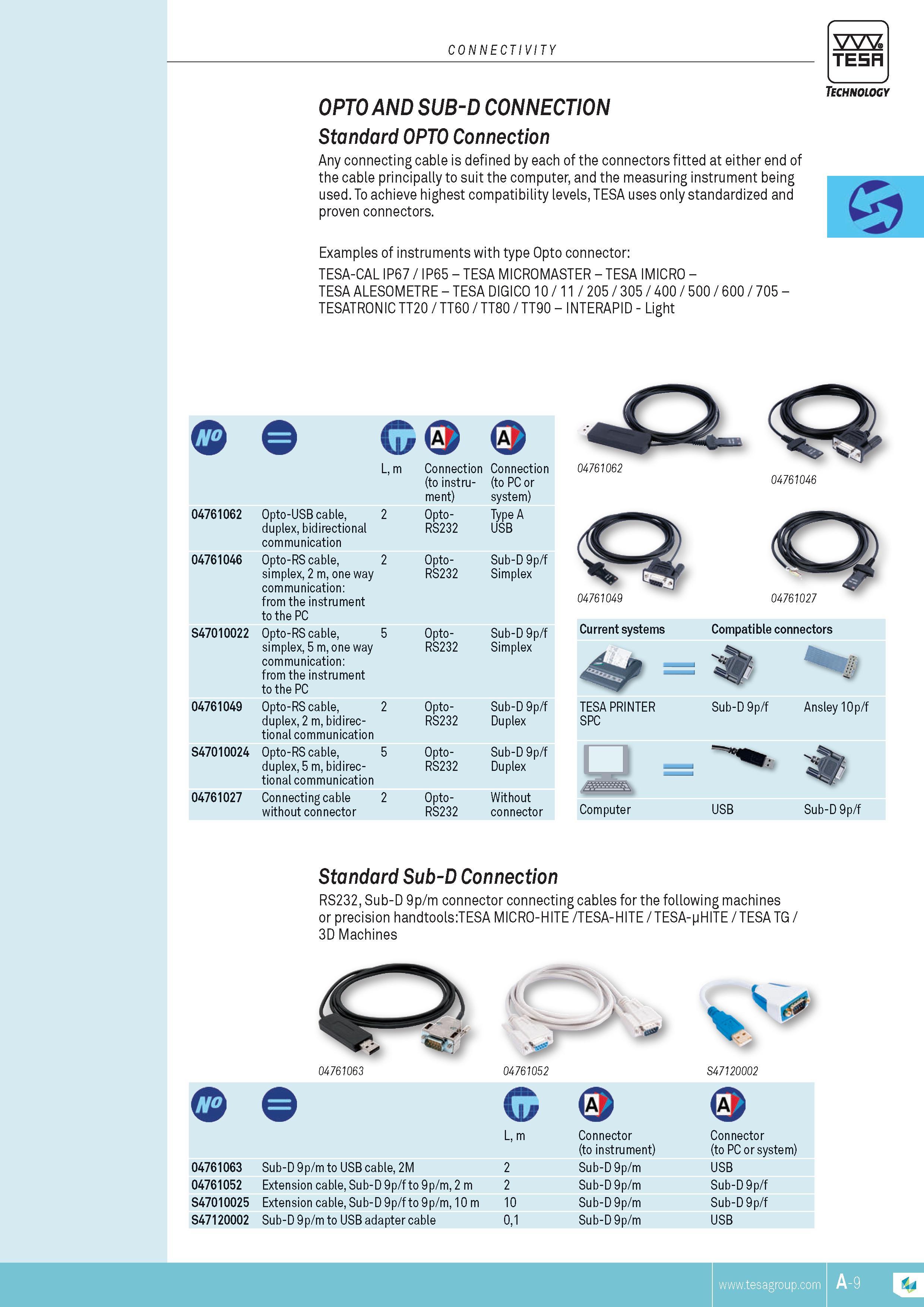

Standard OPTO Connection Any connecting cable is defined by each of the connectors fitted at either end of the cable principally to suit the computer

Standard OPTO Connection Any connecting cable is defined by each of the connectors fitted at either end of the cable principally to suit the computer and the measuring instrument being used. To achieve highest compatibility levels TESA uses only standardized and proven connectors. Examples of instruments with type Opto connector TESA-CAL IP67 IP65 TESA MICROMASTER TESA IMICRO -TESA ALESOMETRE TESA DIGICO 10 11 205 305 400 500 600 705 -TESATRONIC TT20 TT60 TT80 TT90 INTERAPID Light GO L m Connection Connection (to instru- (to PC or ment) system) 04761062 Opto-USB cable duplex bidirectional communication 2 Opto- RS232 Type A USB 04761046 Opto-RS cable simplex 2 m one way communication from the instrument to the PC 2 Opto- RS232 Sub-D 9p f Simplex S47010022 Opto-RS cable simplex 5 m one way communication from the instrument to the PC 5 Opto- RS232 Sub-D 9p f Simplex 04761049 Opto-RS cable duplex 2 m bidirectional communication 2 Opto- RS232 Sub-D 9p f Duplex S47010024 Opto-RS cable duplex 5 m bidirectional communication 5 Opto- RS232 Sub-D 9p f Duplex 04761027 Connecting cable without connector 2 Opto- RS232 Without connector 04761062 04761046 Current systems Compatible connectors TESA PRINTER Sub-D 9p f Ansley 10p f SPC Computer USB Sub-D 9p f Standard Sub-D Connection RS232 Sub-D 9p m connector connecting cables for the following machines or precision handtools:TESA MICRO-HITE TESA-HITE TESA-pHITE TESA TG 3D Machines 04761063 04761052 S47120002 G L m Connector Connector (to instrument) (to PC or system) 04761063 Sub-D 9p m to USB cable 2M 2 Sub-D 9p m USB 04761052 Extension cable Sub-D 9p f to 9p m 2 m 2 Sub-D 9p m Sub-D 9 p f S47010025 Extension cable Sub-D 9p f to 9p m 10 m 10 Sub-D 9p m Sub-D 9 p f S47120002 Sub-D 9p m to USB adapter cable 01 Sub-D 9p m USB TESA -9 connectivity TESA Technology OPTO AND SUB-D CONNECTION
