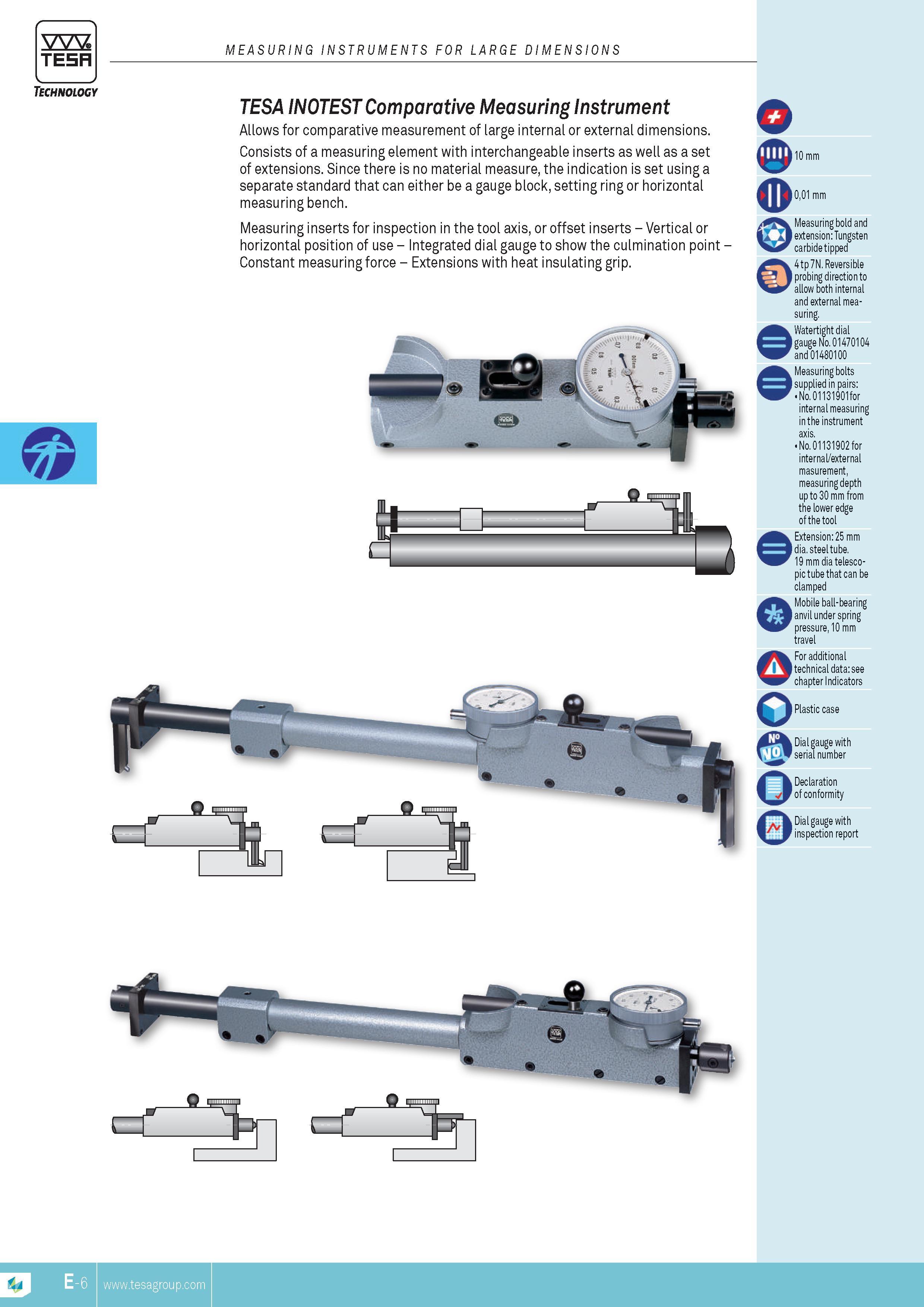

TESA INOTEST Comparative Measuring Instrument Allows for comparative MEASUREMENT of large internal or external dimensions. Consists of a measuring element with interchangeable inserts as well as a set of extensions. Since there is no material measure the indication is set using a separate standard that can either be a gauge block setting ring or horizontal measuring bench. Measuring inserts for inspection in the tool axis or offset inserts Vertical or horizontal position of use Integrated dial gauge to show the culmination point Constant measuring force Extensions with heat insulating grip. Q JE c j o 10 mm 001 mm D Measuring bold and extension Tungsten carbide tipped 4 tp 7N. Reversible probing direction to allow both internal and external measuring. Watertight dial gauge No. 01470104 and 01480100 Measuring bolts supplied in pairs No. 01131901for internal measuring in the instrument axis. No. 01131902 for internal external masurement measuring depth up to 30 mm from the lower edge of the tool Extension 25 mm dia.steel tube. 19 mm dia telescopic tube that can be clamped Mobile ball-bearing anvil under spring pressure 10 mm travel For additional technical data:see chapter Indicators O Plastic case Dial gauge with serial number Declaration of conformity Dial gauge with inspection report TESA MEASURING INSTRUMENTS FOR LARGE DIMENSIONS Technology
