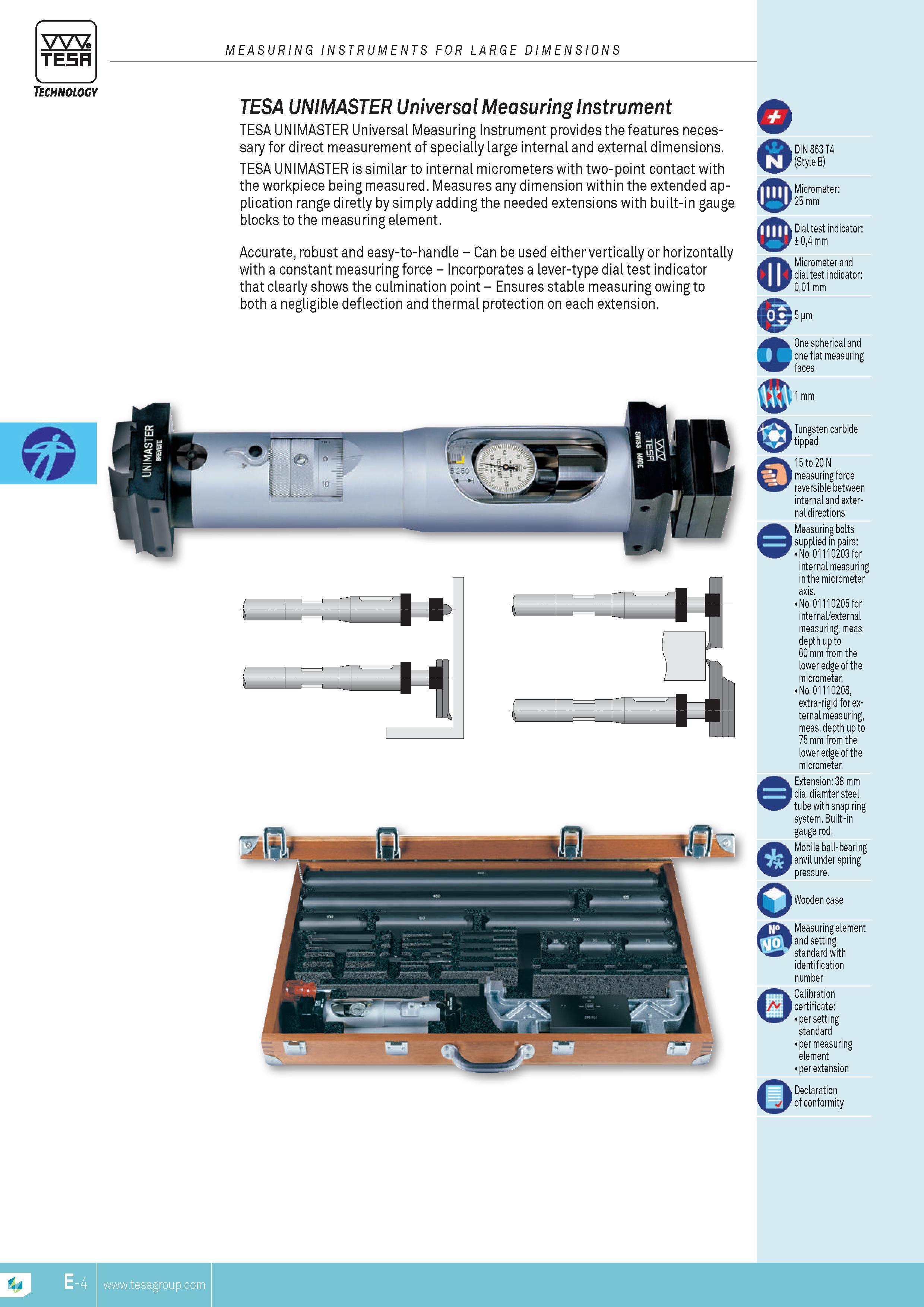

TESA UNIMASTER Universal Measuring Instrument TESA UNIMASTER Universal Measuring Instrument provides the features necessary for direct MEASUREMENT of

TESA UNIMASTER Universal Measuring Instrument TESA UNIMASTER Universal Measuring Instrument provides the features necessary for direct MEASUREMENT of specially large internal and external dimensions. TESA UNIMASTER is similar to internal micrometers with two-point contact with the workpiece being measured. Measures any dimension within the extended application range diretly by simply adding the needed extensions with built-in gauge blocks to the measuring element. Accurate robust and easy-to-handle Can be used either vertically or horizontally with a constant measuring force Incorporates a lever-type dial test indicator that clearly shows the culmination point Ensures stable measuring owing to both a negligible deflection and thermal protection on each extension. -I ( i r i-i 1 l J (ZZ R Cl 9 DIN 863 T4 (Style B) Micrometer 25 mm Dial test indicator 04 mm Micrometer and dial test indicator 001 mm 5 pm One spherical and one flat measuring faces 1 mm Tungsten carbide tipped 15 to 20 N measuring force reversible between internal and external directions Measuring bolts supplied in pairs No. 01110203 for internal measuring in the micrometer axis. No. 01110205 for internal external measuring meas. depth up to 60 mm from the lower edge of the micrometer. No. 01110208 extra-rigid for external measuring meas. depth up to 75 mm from the lower edge of the micrometer. Extension 38 mm dia. diamter steel tube with snap ring system. Built-in Mobile ball-bearing anvil under spring pressure. Wooden case Measuring element V LOW ani setting standard with identification number 0 Calibration certificate per setting standard per measuring element per extension Declaration of conformity E-4 .c TESA MEASURING INSTRUMENTS FOR LARGE DIMENSIONS Technology
