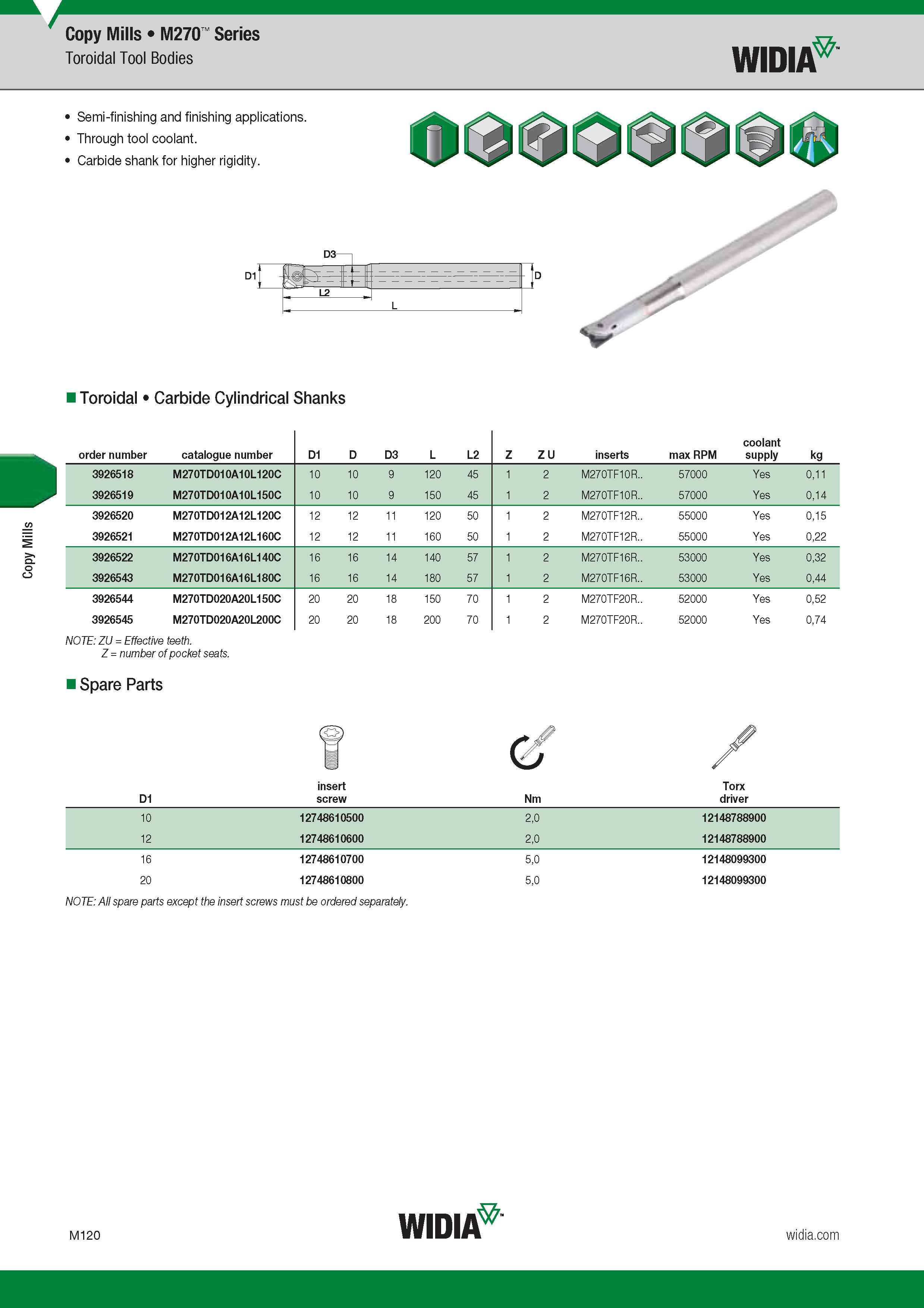

Copy Mills Widia M270 Series Toroidal Tool Bodies Semi-finishing and finishing applications Through tool coolant Carbide shank for higher rigidity

Copy Mills Widia M270 Series Toroidal Tool Bodies Semi-finishing and finishing applications. Through tool coolant. Carbide shank for higher rigidity. D3 D1 0990 Toroidal Carbide Cylindrical Shanks order number Catalogue number Обозначение инструмента по каталогу D1 D D3 L L2 Z Z u inserts max RPM coolant supply kg 3926518 M270TD010A10L120C 10 10 9 120 45 1 2 M270TF10R.. 57000 Yes 0,11 3926519 M270TD010A10L150C 10 10 9 150 45 1 2 M270TF10R.. 57000 Yes 0,14 3926520 M270TD012A12L120C 12 12 11 120 50 1 2 M270TF12R.. 55000 Yes 0,15 3926521 M270TD012A12L160C 12 12 11 160 50 1 2 M270TF12R.. 55000 Yes 0,22 3926522 M270TD016A16L140C 16 16 14 140 57 1 2 M270TF16R.. 53000 Yes 0,32 3926543 M270TD016A16L180C 16 16 14 180 57 1 2 M270TF16R.. 53000 Yes 0,44 3926544 M270TD020A20L150C 20 20 18 150 70 1 2 M270TF20R.. 52000 Yes 0,52 3926545 M270TD020A20L200C 20 20 18 200 70 1 2 M270TF20R.. 52000 Yes 0,74 NOTE ZU Effective teeth. Z number of pocket seats. Spare Parts D1 insert screw G Nm Torx driver 10 12748610500 2,0 12148788900 12 12748610600 2,0 12148788900 16 12748610700 5,0 12148099300 20 12748610800 5,0 12148099300 NOTE All spare parts except the insert screws must be ordered separately. M120 Widia Copy Mills
