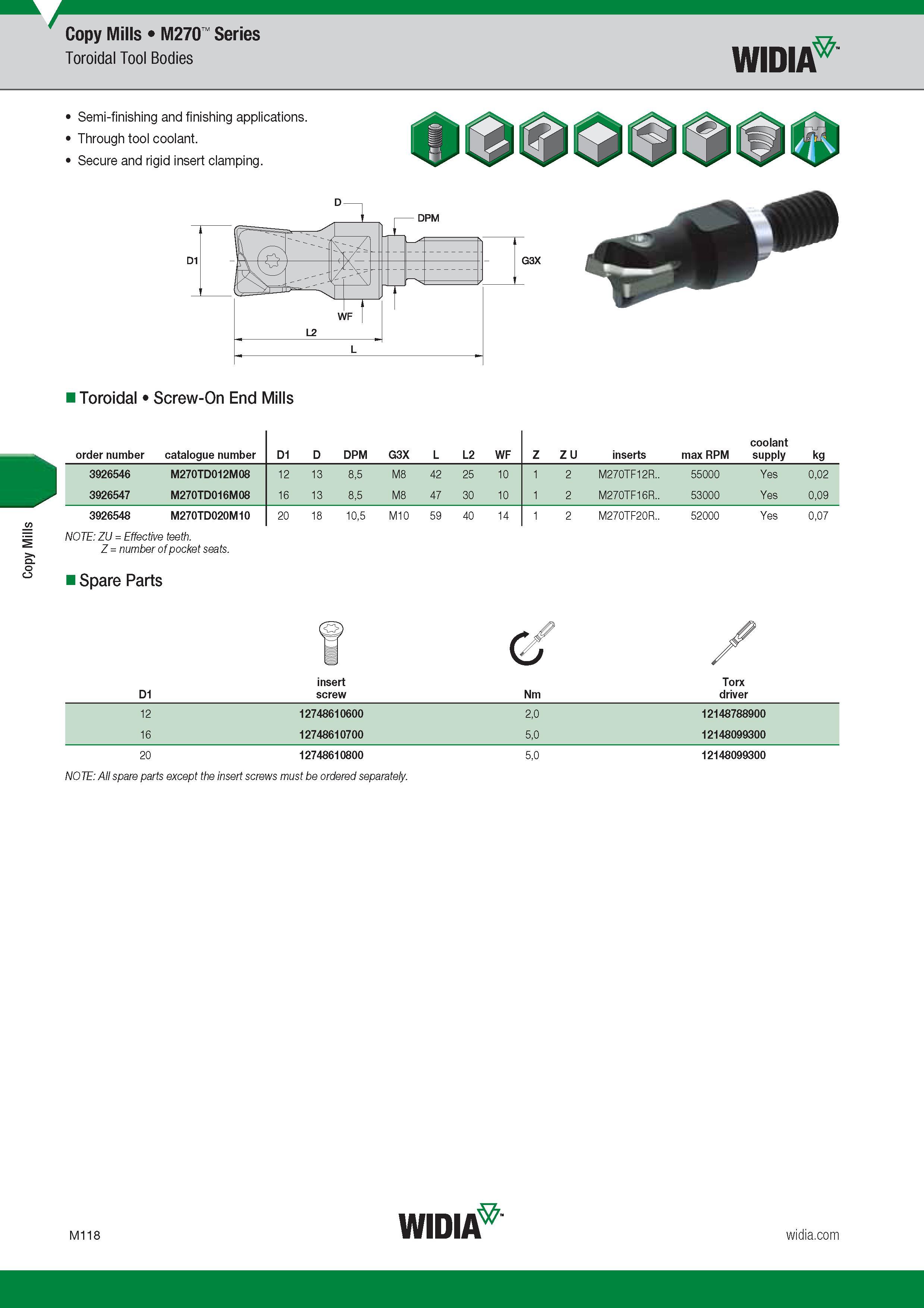

Copy Mills Widia M270 Series Toroidal Tool Bodies Semi-finishing and finishing applications. Through tool coolant. Secure and rigid insert clamping. Toroidal Screw-On End Mills order number Catalogue number Обозначение инструмента по каталогу D1 D DPM G3X L L2 WF Z Z u inserts max RPM coolant supply kg 3926546 M270TD012M08 12 13 8,5 M8 42 25 10 1 2 M270TF12R.. 55000 Yes 0,02 3926547 M270TD016M08 16 13 8,5 M8 47 30 10 1 2 M270TF16R.. 53000 Yes 0,09 3926548 M270TD020M10 20 18 10,5 M10 59 40 14 1 2 M270TF20R.. 52000 Yes 0,07 NOTE ZU Effective teeth. Z number of pocket seats. Spare Parts c D1 insert screw Nm Torx driver 12 12748610600 2,0 12148788900 16 12748610700 5,0 12148099300 20 12748610800 5,0 12148099300 NOTE All spare parts except the insert screws must be ordered separately. M118 Widia Copy Mills
