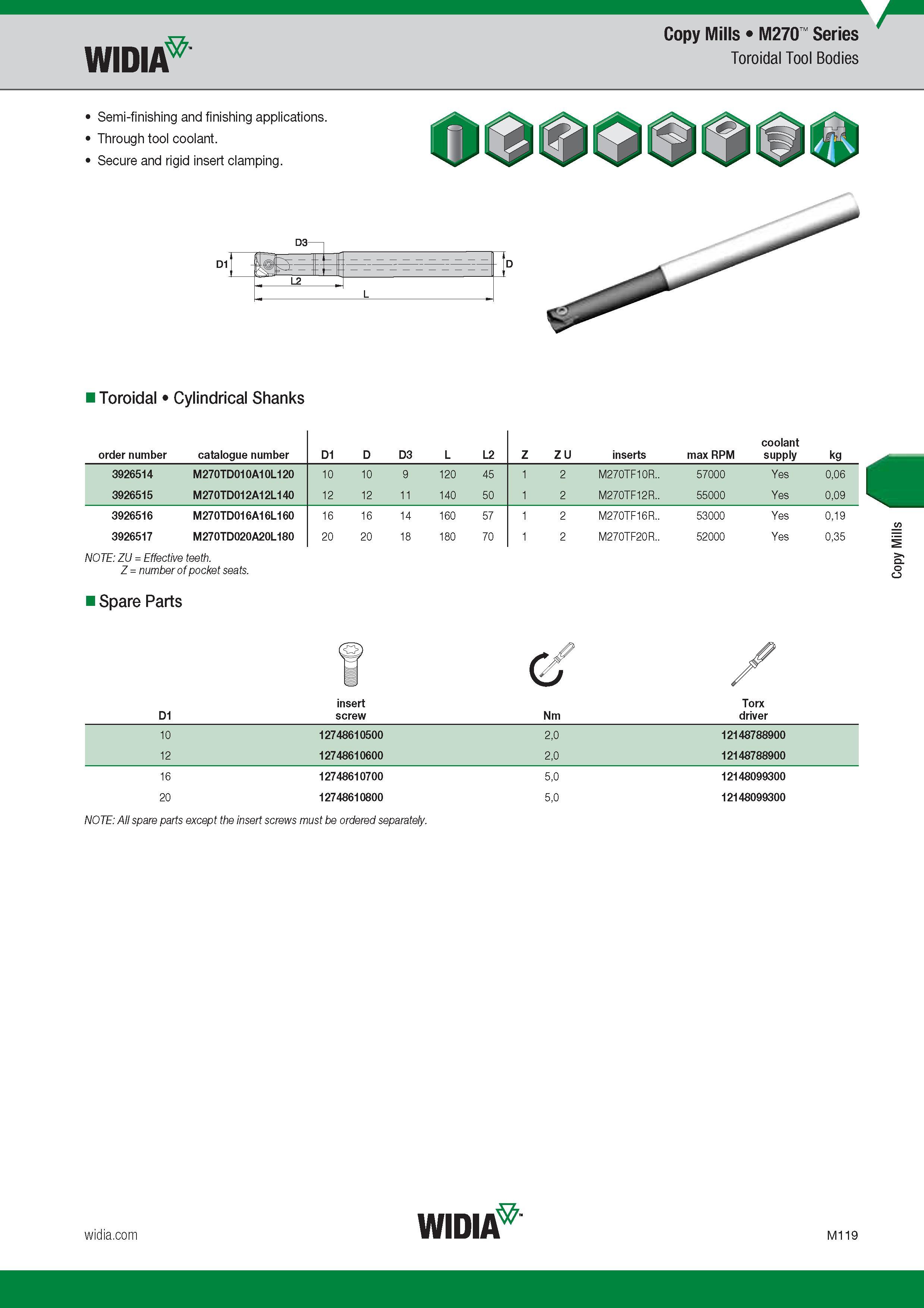

Copy Mills Widia M270 Series Toroidal Tool Bodies Semi-finishing and finishing applications Through tool coolant. Secure and rigid insert clamping. Toroidal Cylindrical Shanks order number Catalogue number Обозначение инструмента по каталогу D1 D D3 L L2 Z Z u inserts max RPM coolant supply kg 3926514 M270TD010A10L120 10 10 9 120 45 1 2 M270TF10R.. 57000 Yes 0,06 3926515 M270TD012A12L140 12 12 11 140 50 1 2 M270TF12R.. 55000 Yes 0,09 3926516 M270TD016A16L160 16 16 14 160 57 1 2 M270TF16R.. 53000 Yes 0,19 3926517 M270TD020A20L180 20 20 18 180 70 1 2 M270TF20R.. 52000 Yes 0,35 NOTE ZU Effective teeth. Z number of pocket seats. Spare Parts 0 D1 insert screw Nm Torx driver 10 12748610500 2,0 12148788900 12 12748610600 2,0 12148788900 16 12748610700 5,0 12148099300 20 12748610800 5,0 12148099300 NOTE All spare parts except the insert screws must be ordered separately. Widia M119 Copy Mills
