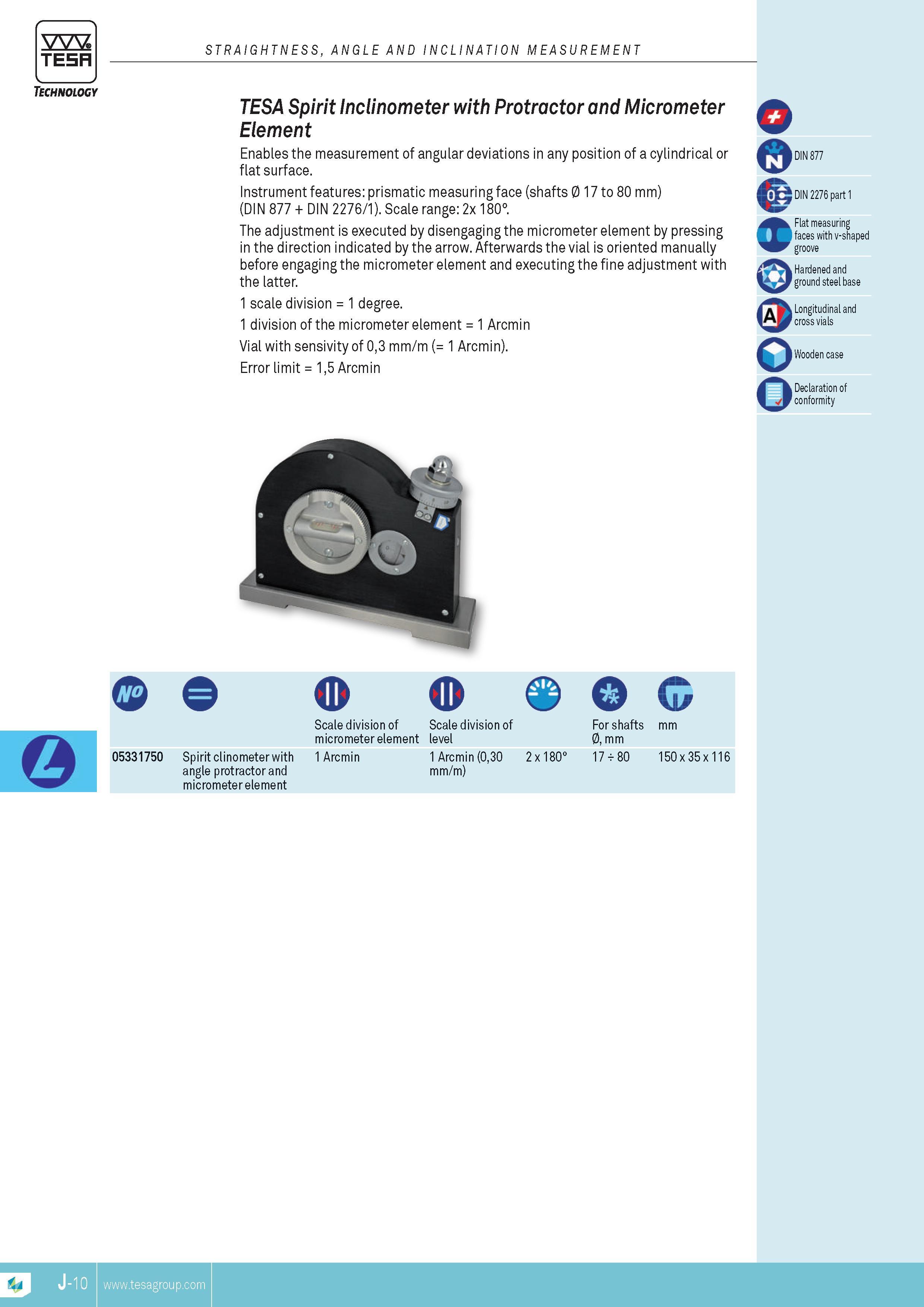

STRAIGHTNESS ANGLE AND INCLINATION MEASUREMENT TESA Spirit Inclinometer with Protractor and Micrometer Element Enables the MEASUREMENT of angular deviations in any position of a cylindrical or flat surface. instrument features prismatic measuring face (shafts 0 17 to 80 mm) (DIN 877 + DIN 2276 1). Scale range 2x 180. The adjustment is executed by disengaging the micrometer element by pressing in the direction indicated by the arrow. Afterwards the vial is oriented manually before engaging the micrometer element and executing the fine adjustment with the latter. 1 scale division 1 degree. 1 division of the micrometer element 1 Arcmin Vial with sensivity of 03 mm m ( 1 Arcmin). Error limit 15 Arcmin DIN 877 i 2276 part 1 Flat measuring faces with v-shaped groove Hardened and ground steel base Longitudinal and cross vials o Wooden case Declaration of W conformity 0 0 O G Scale division of Scale division of For shafts mm micrometer element level 0 mm 05331750 Spirit clinometer with 1Arcmin 1 Arcmin (030 2 x 180 17 t 80 150 x 35 x 116 angle protractor and mm m) micrometer element TESA Technology
