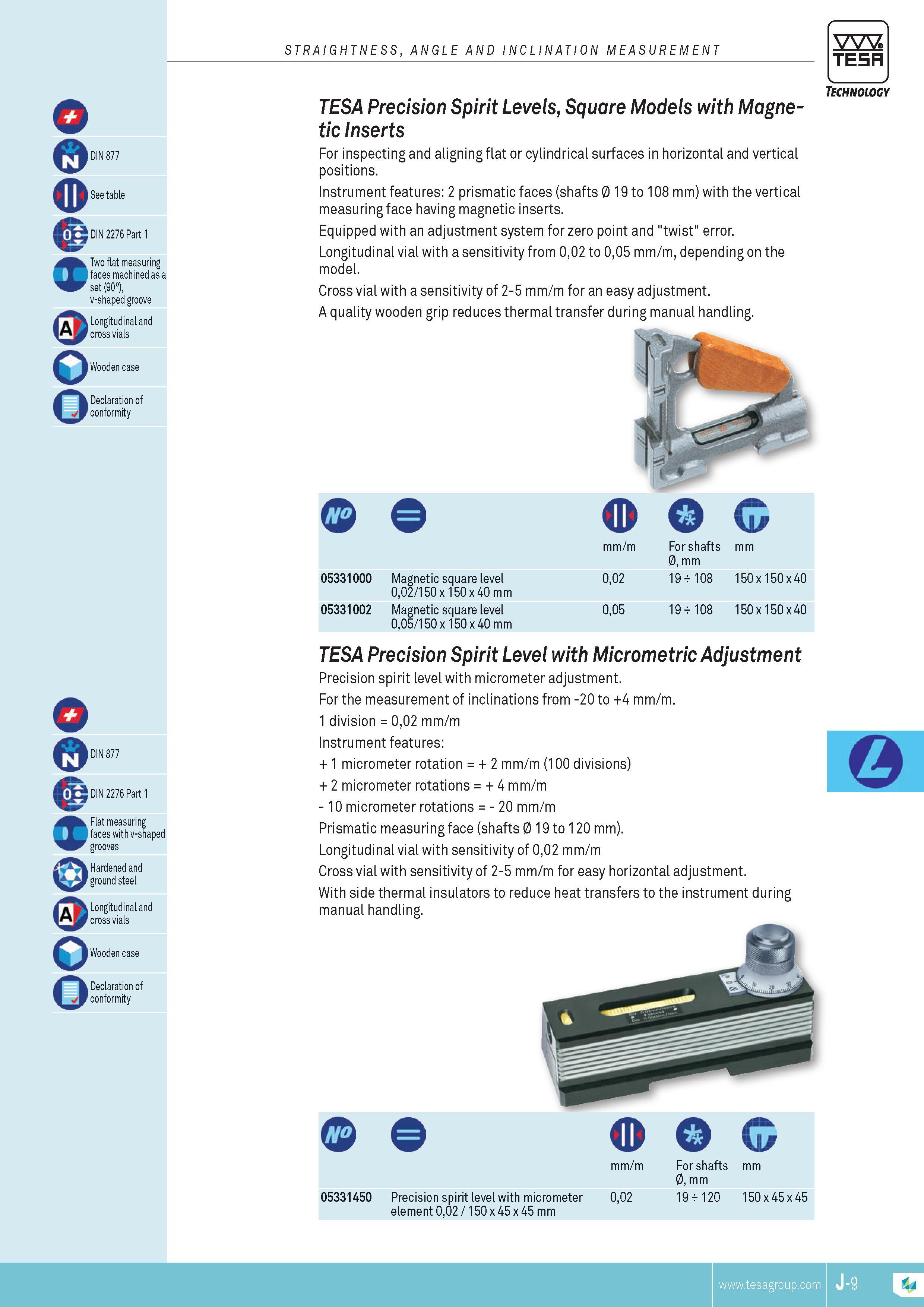

Precision Spirit Levels Square Models with Magnetic Inserts For inspecting and aligning flat or cylindrical surfaces in horizontal and vertical positi

Precision Spirit Levels Square Models with Magnetic Inserts For inspecting and aligning flat or cylindrical surfaces in horizontal and vertical positions. Instrument features 2 prismatic faces (shafts 0 19 to 108 mm) with the vertical measuring face having magnetic inserts. Equipped with an adjustment system for zero point and "twist" error. Longitudinal vial with a sensitivity from 002 to 005 mm m depending on the model. Cross vial with a sensitivity of 2-5 mm m for an easy adjustment. A quality wooden grip reduces thermal transfer during manual handling. G mm m For shafts 0 mm 05331000 Magnetic square level 002 150 x 150 x 40 mm 002 19 108 150 x 150 x 40 05331002 Magnetic square level 005 150 x 150 x 40 mm 005 9 I- 0 OO 150 x 150 x 40 TESA Precision Spirit Level with Micrometric Adjustment Precision spirit level with micrometer adjustment. For the MEASUREMENT of inclinations from -20 to +4 mm m. 1 division 002 mm m Instrument features + 1 micrometer rotation + 2 mm m (100 divisions) + 2 micrometer rotations + 4 mm m 10 micrometer rotations 20 mm m Prismatic measuring face (shafts 0 19 to 120 mm). Longitudinal vial with sensitivity of 002 mm m Cross vial with sensitivity of 2-5 mm m for easy horizontal adjustment. With side thermal insulators to reduce heat transfers to the instrument during manual handling. Q mm m 05331450 Precision spirit level with micrometer 002 element 002 150 x 45 x 45 mm G G For shafts mm 0 mm 19 120 150 x 45 x 45 TESA Technology 0 TESA DIN 877 See table DIN 2276 Part 1 Two flat measuring faces machined as a set (90) Longitudinal and cross vials Wooden case Declaration of conformity o a DIN 877 DIN 2276 Part 1 Flat measuring faces with v-shaped grooves Hardened and ground steel Longitudinal and o cross vials Wooden case Declaration of conformity STRAIGHTNESS ANGLE AND INCLINATION MEASUREMENT TESA
