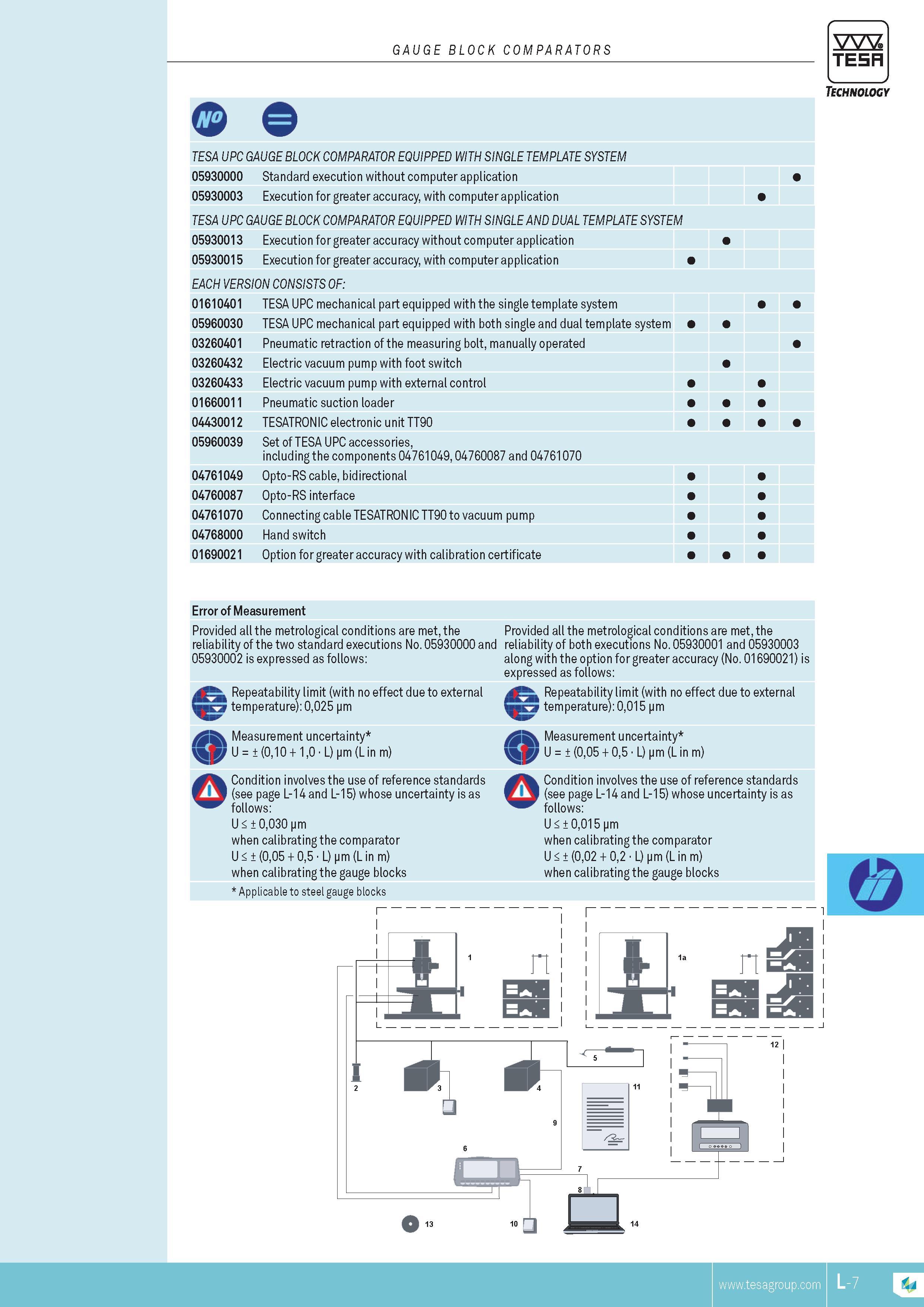

GAUGE BLOCK COMPARATORS TESA O TESA UPC GAUGE BLOCK COMPARATOR EQUIPPED WITH SINGLE TEMPLATE SYSTEM 05930000 Standard execution without computer application 05930003 Execution for greater accuracy with computer application TESA UPC GAUGE Block COMPARATOR equipped wITH Single And Dual TEMPLATE system 05930013 Execution for greater accuracy without computer application 05930015 Execution for greater accuracy with computer application each version CONSISTS of 01610401 TESA UPC mechanical part equipped with the single template system 05960030 TESA UPC mechanical part equipped with both single and dual template system 03260401 Pneumatic retraction of the measuring bolt manually operated 03260432 Electric vacuum pump with foot switch 03260433 Electric vacuum pump with external control 01660011 Pneumatic suction loader 04430012 TESATRONIC electronic unit TT90 05960039 Set of TESA UPC accessories including the components 04761049 04760087 and 04761070 04761049 Opto-RS cable bidirectional 04760087 Opto-RS interface 04761070 Connecting cable TESATRONIC TT90 to vacuum pump 04768000 Hand switch 01690021 Option for greater accuracy with calibration certificate Technology Error of MEASUREMENT Provided all the metrological conditions are met the Provided all the metrological conditions are met the reliability of the two standard executions No. 05930000 and reliability of both executions No. 05930001 and 05930003 05930002 is expressed as follows along with the option for greater accuracy (No. 01690021) is expressed as follows Repeatability limit (with no effect due to external temperature) 0025 pm MEASUREMENT uncertainty U (010 + 10 L) pm (L in m) Condition involves the use of reference standards (see page L-14 and L-15) whose uncertainty is as follows U 0030 pm when calibrating the comparator U (005 + 05 L) pm (L in m) when calibrating the gauge blocks Applicable to steel gauge blocks Repeatability limit (with no effect due to external temperature) 0015 pm MEASUREMENT uncertainty U (005 + 05 L) pm (L in m) Condition involves the use of reference standards (see page L-14 and L-15) whose uncertainty is as follows U 0015 pm when calibrating the comparator U (002 + 02 L) pm (L in m) when calibrating the gauge blocks n r- 7 8 1 % TESA 12 11 4 6 13 14
